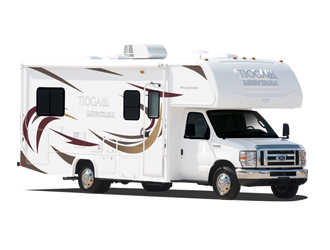

2016 Tioga Montara
The Tioga Montara provides miles of adventure while surrounding you in comfort and convenience.
The Manufacturer's Suggested Retail Price is in US Dollars and excludes destination freight charge, tax, title, license, dealer fees and optional equipment. CLOSE
$68,495
*
MSRP
UP TO 305 HP

FLOOR PLANS 23B, 25K, 29A, 31M
SLEEPS 5
BROCHURE FIND A DEALER

1 / 6
Tioga Montara 29A with Spice wood cabinetry
Tioga Montara Floor Plans
Floor Plans
Why Buy


With a large selection of available floor plans, you can build the Tioga Montara of your dreams.
23B
Tioga Montara 23B
Length: 24' 4.5"
Tioga Montara 25K
Length: 26' 2.5"

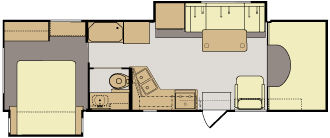

Tioga Montara 29A
Length: 30' 9.5"

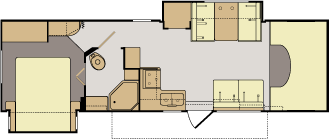

Tioga Montara 31M
Length: 32' 5.5"
Structure
Innovation
Quality
Storage
Stocked
It's All About The Build

Tioga Montara is constructed with a high-gloss Vetrolite®, ultra-thick fiberglass wall for enhanced structural foundation and decreased maintenance.

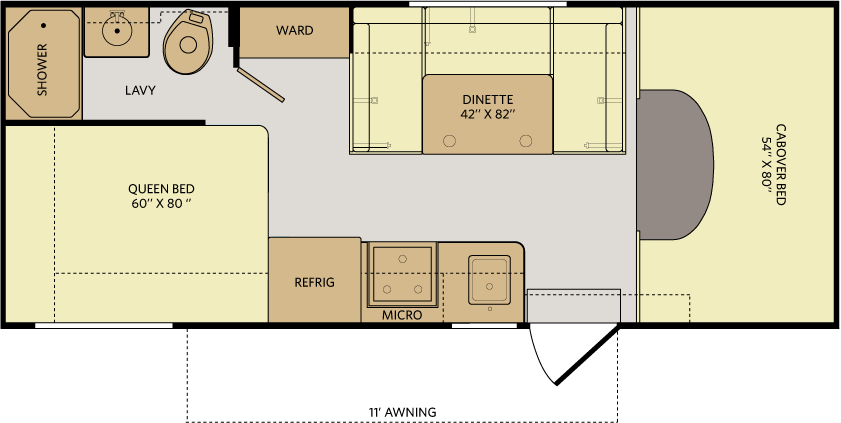

Tioga Montara 23B Floor Plan Options
19
OPT078
19" LED TV
Exterior Entertainment Center
OPT093
Exterior Entertainment Center
19
OPT078
19" LED TV
Exterior Entertainment Center
OPT093
Exterior Entertainment Center
3-Burner Range W/Oven
OPT113
3-Burner Range W/Oven
Front 29
OPT160
Front 29" LED TV
Exterior Entertainment Center
OPT093
Exterior Entertainment Center
3-Burner Range W/Oven
OPT113
3-Burner Range W/Oven
19
OPT078
19" LED TV
Exterior Entertainment Center
OPT093
Exterior Entertainment Center
3-Burner Range W/Oven
OPT113
3-Burner Range W/Oven
Front 29
OPT160
Front 29" LED TV
Tioga Montara 23B Specifications
Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
23B Ford® E350
Wheelbase (inches) 158"
GVWR (lbs)1 12,500
Front GAWR (lbs)2 5,000
Rear GAWR (lbs)2 8,500
GCWR (lbs)3 17,500
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
23B Ford® E350
Overall Length (feet and inches)5 24' 4.5"
Overall Height (with A/C) (feet and inches) 11' 6"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 79
Exterior Storage (cu. ft.) 88
Patio Awning Width (feet and inches) 11'
Fresh Water Holding Tank (gal) 50
Grey Water Holding Tank (gal) 36
Black Water Holding Tank (gal) 36
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford® E350
Model Ford® E350
Engine 5.4L Triton V8
Transmission 5-Speed, Automatic w/Overdrive
Alternator 120 Amp
Torque 350 lb-ft @ 3250 RPM
Horsepower 255HP
Fuel Capacity 40 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
25K Ford® E350 Ford® E450
Wheelbase (inches) 176" 176"
GVWR (lbs)1 14,500 12,500
Front GAWR (lbs)2 5,000 5,000
Rear GAWR (lbs)2 9,500 8,500
GCWR (lbs)3 19,500 17,500
Hitch Rating Weight (lbs)4 5,000 3,500
Tongue Weight (lbs)4 500 350
25K Ford® E350 Ford® E450
Overall Length (feet and inches)5 26' 2.5" 26' 2.5"
Overall Height (with A/C) (feet and inches) 11' 6" 11' 6"
Overall Width (maximum) (inches)6,7 102" 102"
Interior Height (maximum) (inches) 82" 82"
Interior Width (maximum) (inches) 96" 96"
Interior Storage (cu. ft.) 87 87
Exterior Storage (cu. ft.) 100 100
Patio Awning Width (feet and inches) 17' 3" 17' 3"
Fresh Water Holding Tank (gal) 50 50
Grey Water Holding Tank (gal) 37 37
Black Water Holding Tank (gal) 36 36
Appliance Propane Tank (WC) (gal)8 14 14
Water Heater Tank (gal) 6 6
Ford® E350
Model Ford® E350
Engine 5.4L Triton V8
Transmission 5-Speed, Automatic w/Overdrive
Alternator 120 Amp
Torque 350 lb-ft @ 3250 RPM
Horsepower 255HP
Fuel Capacity 40 gal.
Ford® E450
Model Ford® E450
Engine 6.8L Triton V10
Transmission 5-Speed, Automatic w/Overdrive
Alternator 120 Amp
Torque 420 lb-ft @ 3250 RPM
Horsepower 305HP
Fuel Capacity 55 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
29A Ford® E450
Wheelbase (inches) 206"
GVWR (lbs)1 14,500
Front GAWR (lbs)2 5,000
Rear GAWR (lbs)2 9,500
GCWR (lbs)3 19,500
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
29A Ford® E450
Overall Length (feet and inches)5 30' 9.5"
Overall Height (with A/C) (feet and inches) 11' 6"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 134
Exterior Storage (cu. ft.) 98
Patio Awning Width (feet and inches) 14'
Fresh Water Holding Tank (gal) 60
Grey Water Holding Tank (gal) 35
Black Water Holding Tank (gal) 35
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford® E450
Model Ford® E450
Engine 6.8L Triton V10
Transmission 5-Speed, Automatic w/Overdrive
Alternator 120 Amp
Torque 420 lb-ft @ 3250 RPM
Horsepower 305HP
Fuel Capacity 55 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
31M Ford® E450
Wheelbase (inches) 218"
GVWR (lbs)1 14,500
Front GAWR (lbs)2 5,000
Rear GAWR (lbs)2 9,500
GCWR (lbs)3 19,500
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
31M Ford® E450
Overall Length (feet and inches)5 32' 5.5"
Overall Height (with A/C) (feet and inches) 11' 6"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 126
Exterior Storage (cu. ft.) 102
Patio Awning Width (feet and inches) 14'
Fresh Water Holding Tank (gal) 60
Grey Water Holding Tank (gal) 35
Black Water Holding Tank (gal) 35
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford® E450
Model Ford® E450
Engine 6.8L Triton V10
Transmission 5-Speed, Automatic w/Overdrive
Alternator 120 Amp
Torque 420 lb-ft @ 3250 RPM
Horsepower 305HP
Fuel Capacity 55 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Tioga Montara Features
Interior
Exterior


Quality features throughout the Tioga Montara provide a relaxing, home-like atmosphere when you’re on the road.

Interior - Throughout
Driver Convenience
Living Room
Galley
Bedroom
Bathroom
Safety/Convenience
Exterior - Throughout
Safety/Convenience
Body Structure
Interior - Throughout
From the color of the decor to the design of the driver's seat, we've paid attention to every detail. A Fleetwood RV welcomes you from the moment you enter. We build our motor homes for comfort and convenience so you're always ready to sit back, relax and put your feet up (unless you're driving, that is). Every Fleetwood RV has a motor. But it's the special touches that make it a home.
See All Features
12V Water Pump, Demand Operation
13,000 Btu Conventional Air Conditioner
20,000 Btu Furnace, Wall Mounted Thermostat
6 Gallon Propane Water Heater w/Electronic Ignition
AC/DC Load Center w/12V Converter/Battery Charger
Auxiliary Battery w/Disconnect Switch
Central Monitor Panel
Complete PEX Plumbing System
GFI Circuit Protection
Hardwood Flat Panel Cabinet Doors
Hidden Cabinet Door Hinges
Lined Shelves in Overhead Cabinets
Ozite Lined Ceilings
Pleated Night Shades in Living Room & Bedroom
Water Pump with On/Off Switches at Galley & Lavy
Options
19" LED TV w/Remote (23B)
29" LED TV w/Remote (25K, 31M)
Driver Convenience
In the driver's seat, you take care of both kin and cargo. We make sure you're taken care of too. With plush seating, plenty of lighting and technology at your fingertips, it might just be the best seat in the house.
See All Features
3 Point Seat Belts at Driver & Front Passenger Seats
54" x 80" Cabover Bed w/Roof Vent
Auxiliary Emergency Start Assist Switch on Dash
Cockpit Area w/Tilt Wheel, Cruise Control, Dome Light, Cup Holders, Map Pocket
Driver/Front Passenger Airbag supplemental Restraint System
In-Dash AM/FM/Radio w/CD Player & 4 Speakers
Power Windows & Door Locks
Living Room
Cozy furniture and convenient sofa beds make your adventures as comfortable as they are memorable. Our living rooms are a great place to slow down and unwind, even when they're in constant motion.
See All Features
Ceiling Lights w/Wall Switches (Entry & Bath)
Dinette w/2 Cup Holders, Convertible for Sleeping
Swivel Reading Lights at Sofa Overhead
Galley
We've added everything except a personal chef. Our fully-equipped, modern galleys make sure you're always at home, home on the range - no matter what's cooking on top of it.
See All Features
3 Burner Cooktop
Cooktop w/Oven (Select Models)
Dometic® 6 cu. ft. Refrigerator/Freezer
Laminate Counter Tops with Bull nosed T-Molding
Microwave Oven w/Electronic Touch Pad
OPTIONS
Roof Vent Fan
Bedroom
Comfy beds let you sleep snugly, while built-in nooks and crannies give you space to stash your stuff. After all, what's the point of traveling if you can't get a little R and R?
See All Features
Decorative Headboard (Select Models)
Decorative Reading Lights
Queen Bed Mattress (Select Models)
Bathroom
Residential-style touches and handy features make a Fleetwood RV much more comfortable than your typical campsite. With so many amenities, you might feel a little spoiled.
See All Features
Bath Door w/Residential Passage Lock and Towel Bars
China Bowl Toilet w/Hand Sprayer
Medicine Cabinet w/Wood Construction
Molded ABS Shower/Tub with Surround
Residential Style Faucet w/Large Sink
Shower Curtain w/Oversized Curtain Rod
Skylight/Roof Vent w/12V Fan
Safety/Convenience
With such roomy interior spaces, it's easy to forget that every Fleetwood RV is filled with safety features. They may be out of sight, but they'll give you peace of mind.
See All Features
10 lb. ABC Fire Extinguisher
Carbon Monoxide Detector/Alarm
Exterior Entry Assist Handle
Multiple Seatbelt Locations
Propane Detector/Alarm
Smoke Detector/Alarm
Exterior - Throughout
Our styling and exterior graphics look smart when you're on the move. And when you pull into camp to stop for the night, the exterior safety and performance features make you look even smarter.
See All Features
Dual 6V Deep Cycle Auxiliary Batteries
High Gloss Smooth Fiberglass Exterior
Large 1" (Inside Diameter) Water Tank Drain
Manual Single Step
Molded Cross Link Polyethylene Battery Compartment w/Lid
Onan® 4.0kW MicroQuiet Generator
Patio Awning
Roto-Molded Polyethylene Luggage Compartments (Where Applicable)
Sewer Hose Storage in Bumper
Side Fuel Fill
Trailer Hitch w/7 Pin Electrical Hook-Up1
Options
Exterior Entertainment Center with AM/FM/CD Player and Auxiliary Speaker, Coax Cable and 12V/110 Receptacles
Exterior Wash Unit
Safety/Convenience
We've added more than just bells and whistles. Whether you're moving down the road or setting up camp, every Fleetwood RV is outfitted with unique exterior features to keep you safe and secure.
See All Features
30 Amp, 30' Power Cord, Compartment Storage
AC Duplex GFI Receptacle on Patio Side
Amber Porch Light w/Interior Switch
Breakaway Side Mirrors
Entry Door w/Screen Door & Deadbolt Lock
High Mounted Large Taillights
Hydraulic 4 Wheel Disk Brakes w/4 Wheel Anti-Lock Breaks
Radius Tinted Windows
Body Structure
Fleetwood owners build memories for a lifetime. We build our motor homes using superior construction techniques, to ensure you will keep moving for many years to come.
See All Features
26" Wide Radius Corner Entry Door
Corrosion Resistant Aluminum Tube Hull Framing
Full Basement Exterior
Molded Rear Wheel Trim Flares
One-Piece Molded Fiberglass Front End Cap
Pass Through Storage
Radius Roof with A/C
Sidewalls Framed with 1-1/2" Aluminum Tubing
Steel Powder Coated Rear Bumper
Vacu-bond® Floor
Vacu-bond® Hull Lamination Process
Tioga Montara Construction

21st-century Advanced Motorhome Construction

Fleetwood RV employs 21st century construction materials and techniques when manufacturing its motorhomes to provide the latest in durability and safety. We call it the F-21 Advantage, an industry-leading approach to motorhome engineering, manufacturing and materials that exceeds the standard. F-21 is demonstrated by 21 key proof points shared throughout all Fleetwood product classes, some of which are shown here.

Proof
+
+
+
+
+
+
+
+
+
+
+
+
+
+
×

2. Vacu-bond™ integrated walls

Fully sealed and insulated, these weather-resistant, vacuum-bonded assemblies combine 21st-century materials and construction for a straight and flat integrated wall that’s better suited to withstand the rigors of the road. An adhesive bonding process applies up to 415,000 pounds of vacuum pressure to the welded-aluminum sidewall frame, bead-foam panel insulation, thick Tuff Coat fiberglass skin and inner wall materials for over 30 minutes, far exceeding industry standards.
×

7. Radiused and cambered entry door

The industry standard is to provide a flat door that can allow wind noise, so we use a higher-end solution that latches more securely and seals tighter.
×

8. Raised space frame foundation

Where other manufacturers set their floor on the frame, Fleetwood builds an elevated stand-off steel-welded frame with integrated framework, engineered for a stronger, more durable structure and true alignment that greatly expands basement storage. The Power Bridge® can be found on Fleetwood Class A Diesel models, Power Platform™ on the Class A Gas and the Elevated Capacity Bridge™ can be found on Class C models.
×

9. PowerLock System™ (Interlocking walls, ceiling)

Fleetwood’s interlocking aluminum extrusion wall-joint system integrates sidewall and roof assembly into one locked-together overall structure for long-term performance and durability.
×

10. CARE-Checks™ (QC line checks)

Taking cues from the automotive industry, Fleetwood enlists numerous quality inspectors in a CARE QC line. Each person is specialized in a specific discipline such as cabinets, doors or paint, instead of the industry standard, “one-person-checks-all” approach.
×

11. PowerFrames™ (Precision, welded aluminum interlocking frames)

No “hammer-to-fit,” stick-and-frame construction here. We engineer and build our wall, floor and roof frames on jigs to precise tolerances, with strong, modern materials and techniques, joined with interlocking extrusions (PowerLock System™) to fit precisely when mated with the steel-reinforced bridge structure.
×

12. Flat interior ceiling

An arched aluminum frame roof and flat ceiling design creates a strong, durable structure that provides a full 5” of insulation at the roof peak—right where the A/C ducts run, to insulate them from heat and provide maximum cabin insulation.
×

13. Tapered slideout box tops & debris awnings

Some slideout boxes incorporate a tapered roofline that sheds water away from the body to provide an additional level of moisture protection in addition to multiple bead-seals and the debris awning protection.
×

14. Rotocast molded storage boxes

Instead of industry-standard plywood (or worse), these molded boxes are extremely durable, look great and can be washed out with a hose.
×

15. Tuff-Pex™ plumbing system

It is a complete system of flexible and durable Oetiker® tubing, fittings and stainless steel rings, all with sub-zero ratings. With some extra thinking added in production we make it simpler to service by using red for hot and blue for cold.
×

17. Solid bead-foam Engineered Fit Insulation™

Fleetwood above-standard insulation material and process doesn’t allow settling or air gaps to form as with roll-type fiberglass used in industry-standard units.
×

18. Tuff-Roof™ low-maintenance roof system

The armor skin of the arched aluminum frame roof is extremely durable and long-lasting, yet easily repaired if damaged. Most Fleetwood models feature a lightweight and flexible TPO skin, with some offering a molded fiberglass skin; either option is low-maintenance and guaranteed for durability.
×

19. DrySeal™ Edge Coating (water-wicking wall edge coating)

Applied to every perimeter edge of the walls and window openings, the coating seals out moisture to inhibit delamination, swelling and mold problems for long-lasting durability.
×

20. Aluminum extruded slide ramps

The industry standard is pine wood ramps that can absorb moisture, crack, distort and rot. The Fleetwood standard demands these be made of modern materials to stay straight and last for years of trouble-free operation.
Learn more about the
F-21 Advantage »
