2016 Tioga Ranger
Travel in style and comfort in the ultra-versatile Tioga Ranger.
The Manufacturer's Suggested Retail Price is in US Dollars and excludes destination freight charge, tax, title, license, dealer fees and optional equipment. CLOSE
$84,711
*
MSRP
UP TO 305 HP

FLOOR PLANS 25G, 31A, 31D, 31M
SLEEPS 6
BROCHURE FIND A DEALER
Divina Dynasty
French Beach

1 / 7

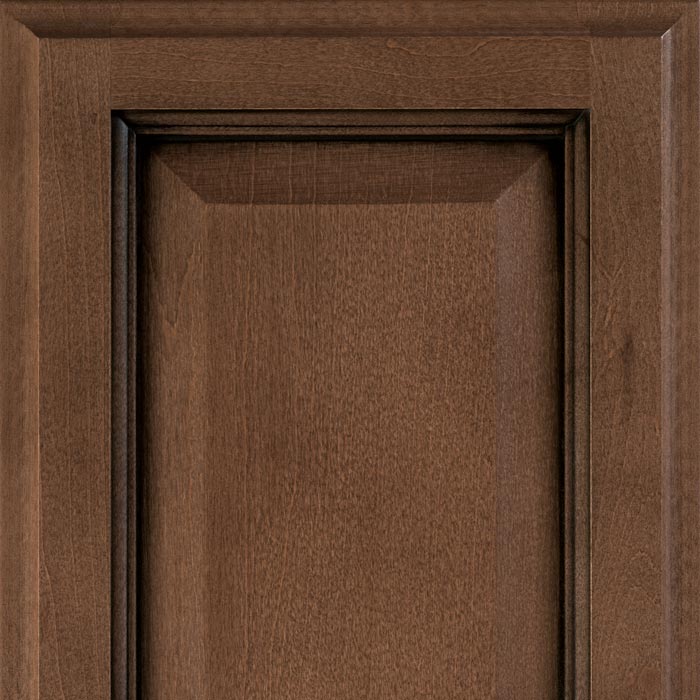

Tioga Ranger 31D shown in French Beach décor with Spice wood cabinetry
Tioga Ranger Floor Plans
Floor Plans
Why Buy


A large variety of floor plans let you choose the right layout to fit your needs.
25G

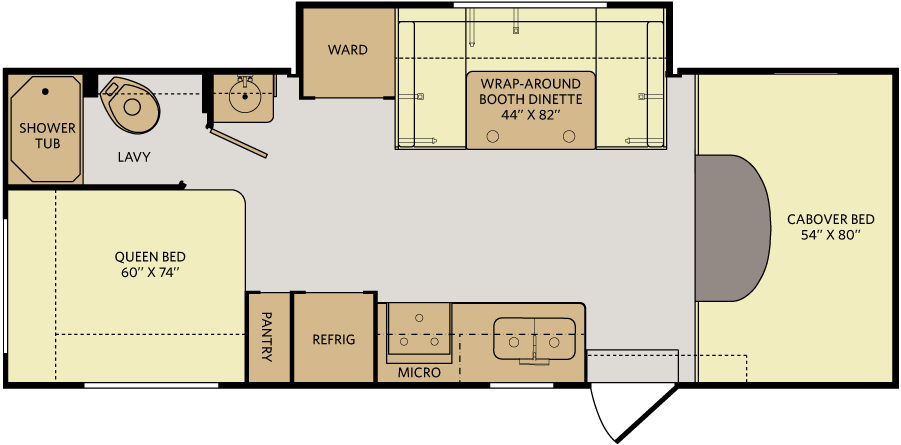

Tioga Ranger 25G
Length: 26' 2.5"
Tioga Ranger 31A
Length: 31' 8.5"
Tioga Ranger 31D
Length: 31' 8.5"
Tioga Ranger 31M
Length: 32' 5.5"
Experience
Conversion
The Approach
Towing
Loaded
Welcome Home

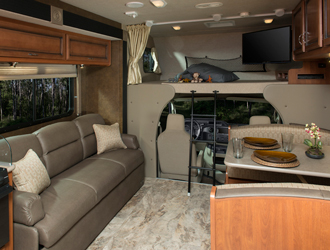

Lounge in the comfort of Flexsteel® Furniture and a temptingly-pleasurable temperature, controlled by a radius roof with ducted A/C.

Tioga Ranger 25G Floor Plan Options
Front 19
OPT079
Front 19" LED TV & DVD Player
Bedroom 19
OPT084
Bedroom 19" LED TV
Exterior Entertainment Center
OPT093
Exterior Entertainment Center
32
OPT167
32" LED TV Swing-Arm Home Entertainment Center
Cabover 32
OPT351
Cabover 32" LED TV
Front 19
OPT079
Front 19" LED TV & DVD Player
Bedroom 19
OPT084
Bedroom 19" LED TV
Exterior Entertainment Center
OPT093
Exterior Entertainment Center
Bunk Bed 19
OPT097
Bunk Bed 19" LED TV
Dual Bunk BEd Monitors
OPT157
Dual Bunk BEd Monitors
32
OPT167
32" LED TV Swing-Arm Home Entertainment Center
Cabover 32
OPT351
Cabover 32" LED TV
Dinette w/ Swing Down Bunk
OPT860 OPT864
Dinette w/ Swing Down Bunk
Front 19
OPT079
Front 19" LED TV & DVD Player
Bedroom 19
OPT084
Bedroom 19" LED TV
Exterior Entertainment Center
OPT093
Exterior Entertainment Center
Bunk Bed 19
OPT097
Bunk Bed 19" LED TV
Dual Bunk BEd Monitors
OPT157
Dual Bunk BEd Monitors
32
OPT167
32" LED TV Swing-Arm Home Entertainment Center
Cabover 32
OPT351
Cabover 32" LED TV
Dinette w/ Swing Down Bunk
OPT860 OPT864
Dinette w/ Swing Down Bunk
Front 19
OPT079
Front 19" LED TV & DVD Player
Bedroom 19
OPT084
Bedroom 19" LED TV
Exterior Entertainment Center
OPT093
Exterior Entertainment Center
32
OPT167
32" LED TV Swing-Arm Home Entertainment Center
Cabover 32
OPT351
Cabover 32" LED TV
Tioga Ranger 25G Specifications
Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
25G Ford® E450
Wheelbase (inches) 176"
GVWR (lbs)1 14,500
Front GAWR (lbs)2 5,000
Rear GAWR (lbs)2 9,500
GCWR (lbs)3 19,500
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
25G Ford® E450
Overall Length (feet and inches)5 26' 2.5"
Overall Height (with A/C) (feet and inches) 11' 6"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 102
Exterior Storage (cu. ft.) 100
Patio Awning Width (feet and inches) 17' 3"
Fresh Water Holding Tank (gal) 50
Grey Water Holding Tank (gal) 37
Black Water Holding Tank (gal) 36
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford® E450
Model Ford® E450
Engine 6.8L Triton V10
Transmission 5-Speed, Automatic w/Overdrive
Alternator 120 Amp
Torque 420 lb-ft @ 3250 RPM
Horsepower 305HP
Fuel Capacity 55 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
31A Ford® E450
Wheelbase (inches) 214"
GVWR (lbs)1 14,500
Front GAWR (lbs)2 5,000
Rear GAWR (lbs)2 9,500
GCWR (lbs)3 19,500
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 350
31A Ford® E450
Overall Length (feet and inches)5 31' 8.5"
Overall Height (with A/C) (feet and inches) 11' 6"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 110
Exterior Storage (cu. ft.) 104
Patio Awning Width (feet and inches) 10'
Fresh Water Holding Tank (gal) 60
Grey Water Holding Tank (gal) 35
Black Water Holding Tank (gal) 35
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford® E450
Model Ford® E450
Engine 6.8L Triton V10
Transmission 5-Speed, Automatic w/Overdrive
Alternator 120 Amp
Torque 420 lb-ft @ 3250 RPM
Horsepower 305HP
Fuel Capacity 55 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
31D Ford® E450
Wheelbase (inches) 214"
GVWR (lbs)1 14,500
Front GAWR (lbs)2 5,000
Rear GAWR (lbs)2 9,500
GCWR (lbs)3 19,500
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 350
31D Ford® E450
Overall Length (feet and inches)5 31' 8.5"
Overall Height (with A/C) (feet and inches) 11' 6"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 110
Exterior Storage (cu. ft.) 104
Patio Awning Width (feet and inches) 10'
Fresh Water Holding Tank (gal) 60
Grey Water Holding Tank (gal) 35
Black Water Holding Tank (gal) 35
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford® E450
Model Ford® E450
Engine 6.8L Triton V10
Transmission 5-Speed, Automatic w/Overdrive
Alternator 120 Amp
Torque 420 lb-ft @ 3250 RPM
Horsepower 305HP
Fuel Capacity 55 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
31M Ford® E450
Wheelbase (inches) 218"
GVWR (lbs)1 14,500
Front GAWR (lbs)2 5,000
Rear GAWR (lbs)2 9,500
GCWR (lbs)3 19,500
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 350
31M Ford® E450
Overall Length (feet and inches)5 32' 5.5"
Overall Height (with A/C) (feet and inches) 11' 6"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 126
Exterior Storage (cu. ft.) 102
Patio Awning Width (feet and inches) 14'
Fresh Water Holding Tank (gal) 60
Grey Water Holding Tank (gal) 35
Black Water Holding Tank (gal) 35
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford® E450
Model Ford® E450
Engine 6.8L Triton V10
Transmission 5-Speed, Automatic w/Overdrive
Alternator 120 Amp
Torque 420 lb-ft @ 3250 RPM
Horsepower 305HP
Fuel Capacity 55 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Tioga Ranger Features
Interior
Exterior


Build the Tioga Ranger that’s right for you with a variety of features and options that meet your needs and wants.

Interior - Throughout
Driver Convenience
Living Room
Galley
Bedroom
Bathroom
Safety/Convenience
Exterior - Throughout
Safety/Convenience
Storage
Body Structure
Interior - Throughout
From the color of the decor to the design of the driver's seat, we've paid attention to every detail. A Fleetwood RV welcomes you from the moment you enter. We build our motor homes for comfort and convenience so you're always ready to sit back, relax and put your feet up (unless you're driving, that is). Every Fleetwood RV has a motor. But it's the special touches that make it a home.
See All Features
12V Water Pump, Demand Operation
13,000 Btu Conventional Air Conditioner (25G)
15,000 Btu Ducted Air Conditioner w/Chill Grille (28Z, 31M, 31A, 31D)
30,000 Btu Furnace, Wall Mounted Thermostat (Except 31A, 31D)
6 Gallon Propane Water Heater w/Electronic Ignition
AC/DC Load Center w/12V Converter/Battery Charger
Central Monitor Panel
Complete PEX Plumbing System
Deluxe Roller Bearing, Full Extension Drawer Guides and Transit-Ship Locks
Dual 20,000 Btu Furnaces (31A, 31D)
Dual 6V Deep Cycle Auxiliary Batteries w/Disconnect Switch
GFI Circuit Protection
Hardwood Raised Panel Cabinet Doors
Hidden Cabinet Door Hinges
Ozite Lined Ceilings
Pleated Night Shades in Living Room & Bedroom
Pre-Finish Lined Shelves in Overhead Cabinets
Quality Constructed Furniture by Flexsteel®
Water Heater Bypass Valve Fresh Water System Winterization
Water Pump with On/Off Switches at Galley and Lavy
Options
19" LED TV (Bedroom)
19" LED Wide-Screen TV w/Remote and DVD Player
32" Swing-Arm Home Entertainment Center
Bunk Bed-N-Breakfast (31A, 31D)
Cabover Entertainment System: 32" LED TV w/Home Theater
Dual Flat Panel TV Package
Glass Shower Door Enclosure (Select Models)
Real Wood Raised Panel Refrigerator Inserts
Satellite Radio
Driver Convenience
In the driver's seat, you take care of both kin and cargo. We make sure you're taken care of too. With plush seating, plenty of lighting and technology at your fingertips, it might just be the best seat in the house.
See All Features
3 Point Seat Belts at Driver and Front Passenger Seats
54" X 80" Cabover Bed w/Privacy Curtain, Roof Vent and Sliding Side Windows
Auxiliary Emergency Start Assist Switch on Dash
Cabover Bunk Ladder
Cockpit Area w/Tilt Wheel, Cruise Control, Dome Light, Cup Holders, Map Pocket
Driver/Front Passenger Airbag Supplemental Restraint System
In-Dash AM/FM/Radio w/CD Player & 4 Speakers
Power Windows & Door Locks
Living Room
Cozy furniture and convenient sofa beds make your adventures as comfortable as they are memorable. Our living rooms are a great place to slow down and unwind, even when they're in constant motion.
See All Features
Ceiling Lights w/Wall Switches (Entry & Bath)
Dinette w/2 Cup Holders, Convertible for Sleeping
Sofa Bed (Select Models)
Swivel Reading Lights at Sofa Overhead
Galley
We've added everything except a personal chef. Our fully-equipped, modern galleys make sure you're always at home, home on the range - no matter what's cooking on top of it.
See All Features
Cooktop Cover
Dometic® 6 cu. ft. Refrigerator/Freezer
Laminate Countertops w/Bull Nose T-Molding Edge
Microwave Oven w/Electronic Touch Pad
Power Roof Fan-Tastic® Vent Fan
Range Hood w/Light & Fan
Range w/High Output/Piezo Igniter and Oven
Residential Size Double Bowl Sink
Whole Coach Water Filtration System
Bedroom
Comfy beds let you sleep snugly, while built-in nooks and crannies give you space to stash your stuff. After all, what's the point of traveling if you can't get a little R and R?
See All Features
Bedspread w/Reverse Pillow Shams
Decorative Reading Lights
Queen Bed w/Innerspring Mattress (Select Models)
Wall Space for TV w/AC Receptacle & Cable Jack
Bathroom
Residential-style touches and handy features make a Fleetwood RV much more comfortable than your typical campsite. With so many amenities, you might feel a little spoiled.
See All Features
Bath Door w/Residential Passage Lock and Towel Bars (Select Models)
China Bowl Toilet w/Hand Sprayer
Medicine Cabinet w/Wood Construction
Molded ABS Shower/Tub w/Surround
Residential Style Faucet w/Large Sink
Shower Curtain and Rod (Select Models)
Shower Head w/Flexible Hose Extension
Skylight/Roof Vent w/12V Fan
Wall Mounted Mirror (Select Models)
Safety/Convenience
With such roomy interior spaces, it's easy to forget that every Fleetwood RV is filled with safety features. They may be out of sight, but they'll give you peace of mind.
See All Features
10 lb. ABC Fire Extinguisher
Carbon Monoxide Detector/Alarm
Exterior and Interior Entry Assist Handle
Multiple Seatbelt Locations
Propane Detector/Alarm
Smoke Detector/Alarm
Exterior - Throughout
Our styling and exterior graphics look smart when you're on the move. And when you pull into camp to stop for the night, the exterior safety and performance features make you look even smarter.
See All Features
Debris Awning Above All Slide-Out Rooms
Full Size Spare Tire w/Carrier
High Gloss Smooth Fiberglass Exterior
Lg. 1" (Inside Diameter) Water Tank Drain
Onan® 4.0kW MicroQuiet Generator
Patio Awning
Power Double Electric Step
Rear Ladder
Roto-Molded Polyethylene Luggage Compartments (Where Applicable)
Sewer Hose Storage in Bumper
Side Fuel Fill
Stainless Steel Wheel Simulators
Toilet Tank San-T-Flush System
Trailer Hitch w/7 Pin Electrical Hook-Up1
Wash Unit w/Faucet, Flexible Shower Hose
Options
Dual Pane Windows
Electric Awning (Select Models)
Exterior Entertainment Center with AM/FM/CD Player and Auxiliary Speaker, Coax Cable and 12V/110 Receptacles
Full Body Paint
Midi Heki Skylight- Sunroof w/Screen and Pull shade
Rear Vision Camera
Side View Camera Package
Safety/Convenience
We've added more than just bells and whistles. Whether you're moving down the road or setting up camp, every Fleetwood RV is outfitted with unique exterior features to keep you safe and secure.
See All Features
30 Amp, 30' Power Cord, Compartment Storage
AC Duplex GFI Receptacle on Patio Side
Amber Porch Light w/Interior Switch
Automotive Safety Glass
Breakaway Side Mirrors w/Power Adjust and Heat Control
Easy Access Propane Hookup for Accessories
Entry Door w/Screen Door & Deadbolt Lock
High Mounted Large Taillights
Hydraulic 4 Wheel Disk Brakes w/4 Wheel Anti-Lock Brakes
Power Electric Step
Radius Tinted Windows
Storage
Take it all with you. With ingeniously designed storage solutions, you'll always know your luggage is safe, secure and stowed away within easy reach.
See All Features
Molded Cross Link Polyethylene Battery Compartment w/lid
Body Structure
Fleetwood owners build memories for a lifetime. We build our motor homes using superior construction techniques, to ensure you will keep moving for many years to come.
See All Features
26" Wide Radius Corner Entry Door w/Obscured Window
Corrosion Resistant Aluminum Tube Hull Framing
Full Basement Exterior
Molded Rear Wheel Trim Flares
One-Piece Molded Fiberglass Front End Cap
Pass Through Storage
Powder Coated, Steel Running Boards
Radius Roof
Sidewalls Framed with 1-1/2" Aluminum Tubing
Steel Powder Coated Rear Bumper
Vacu-bond® Floor
Vacu-bond® Hull Lamination Process
Tioga Ranger Interior Décor


The interior décor options for the Tioga Ranger help you design the motorhome you’ve always wanted.

Divina Dynasty
Divina DynastySofa
Divina DynastyAccent
Divina DynastyBedspread
Divina DynastyCountertop
Divina DynastyFlooring
Divina DynastyCarpet
French Beach
French BeachSofa
French BeachAccent
French BeachBedspread
French BeachCountertop
French BeachFlooring
French BeachCarpet
Wood Cabinetry
CinnabarCinnabar
SpiceSpice
ButternutButternut
Click on any decor or cabinetry choice to see it larger.
Divina Dynasty
Divina DynastySofa
Divina DynastyAccent
Divina DynastyBedspread
Divina DynastyCountertop
Divina DynastyFlooring
Divina DynastyCarpet
French Beach
French BeachSofa
French BeachAccent
French BeachBedspread
French BeachCountertop
French BeachFlooring
French BeachCarpet
Cinnabar Cinnabar
Spice Spice
Butternut Butternut
Colors are representations of actual samples and may be limited by standard display technology.
Please consult your dealer before making a purchase decision.
Tioga Ranger Construction

21st-century Advanced Motorhome Construction

Fleetwood RV employs 21st century construction materials and techniques when manufacturing its motorhomes to provide the latest in durability and safety. We call it the F-21 Advantage, an industry-leading approach to motorhome engineering, manufacturing and materials that exceeds the standard. F-21 is demonstrated by 21 key proof points shared throughout all Fleetwood product classes, some of which are shown here.

Proof
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
×

2. Vacu-bond™ integrated walls

Fully sealed and insulated, these weather-resistant, vacuum-bonded assemblies combine 21st-century materials and construction for a straight and flat integrated wall that’s better suited to withstand the rigors of the road. An adhesive bonding process applies up to 415,000 pounds of vacuum pressure to the welded-aluminum sidewall frame, bead-foam panel insulation, thick Tuff Coat fiberglass skin and inner wall materials for over 30 minutes, far exceeding industry standards.
×

3. Premium full-body paint

Instead of the industry-standard gelcoat and vinyl, the Fleetwood standard offers full-painted exteriors—as on premium motorcoaches. Painted and clear-coated in a state-of-the-art facility, this finish has superior UV protection for finish longevity and higher resale value.
×

4. Dedicated full-length, metallic A/C ducting

Instead of cut-out foam channels, the Fleetwood standard provides insulated A/C ducting running the length of the coach with carefully placed outlets for cool comfort throughout.
×

7. Radiused and cambered entry door

The industry standard is to provide a flat door that can allow wind noise, so we use a higher-end solution that latches more securely and seals tighter.
×

8. Raised space frame foundation

Where other manufacturers set their floor on the frame, Fleetwood builds an elevated stand-off steel-welded frame with integrated framework, engineered for a stronger, more durable structure and true alignment that greatly expands basement storage. The Power Bridge® can be found on Fleetwood Class A Diesel models, Power Platform™ on the Class A Gas and the Elevated Capacity Bridge™ can be found on Class C models.
×

9. PowerLock System™ (Interlocking walls, ceiling)

Fleetwood’s interlocking aluminum extrusion wall-joint system integrates sidewall and roof assembly into one locked-together overall structure for long-term performance and durability.
×

10. CARE-Checks™ (QC line checks)

Taking cues from the automotive industry, Fleetwood enlists numerous quality inspectors in a CARE QC line. Each person is specialized in a specific discipline such as cabinets, doors or paint, instead of the industry standard, “one-person-checks-all” approach.
×

11. PowerFrames™ (Precision, welded aluminum interlocking frames)

No “hammer-to-fit,” stick-and-frame construction here. We engineer and build our wall, floor and roof frames on jigs to precise tolerances, with strong, modern materials and techniques, joined with interlocking extrusions (PowerLock System™) to fit precisely when mated with the steel-reinforced bridge structure.
×

12. Flat interior ceiling

An arched aluminum frame roof and flat ceiling design creates a strong, durable structure that provides a full 5” of insulation at the roof peak—right where the A/C ducts run, to insulate them from heat and provide maximum cabin insulation.
×

13. Tapered slideout box tops & debris awnings

Some slideout boxes incorporate a tapered roofline that sheds water away from the body to provide an additional level of moisture protection in addition to multiple bead-seals and the debris awning protection.
×

14. Rotocast molded storage boxes

Instead of industry-standard plywood (or worse), these molded boxes are extremely durable, look great and can be washed out with a hose.
×

15. Tuff-Pex™ plumbing system

It is a complete system of flexible and durable Oetiker® tubing, fittings and stainless steel rings, all with sub-zero ratings. With some extra thinking added in production we make it simpler to service by using red for hot and blue for cold.
×

17. Solid bead-foam Engineered Fit Insulation™

Fleetwood above-standard insulation material and process doesn’t allow settling or air gaps to form as with roll-type fiberglass used in industry-standard units.
×

18. Tuff-Roof™ low-maintenance roof system

The armor skin of the arched aluminum frame roof is extremely durable and long-lasting, yet easily repaired if damaged. Most Fleetwood models feature a lightweight and flexible TPO skin, with some offering a molded fiberglass skin; either option is low-maintenance and guaranteed for durability.
×

19. DrySeal™ Edge Coating (water-wicking wall edge coating)

Applied to every perimeter edge of the walls and window openings, the coating seals out moisture to inhibit delamination, swelling and mold problems for long-lasting durability.
×

20. Aluminum extruded slide ramps

The industry standard is pine wood ramps that can absorb moisture, crack, distort and rot. The Fleetwood standard demands these be made of modern materials to stay straight and last for years of trouble-free operation.
Learn more about the
F-21 Advantage »
