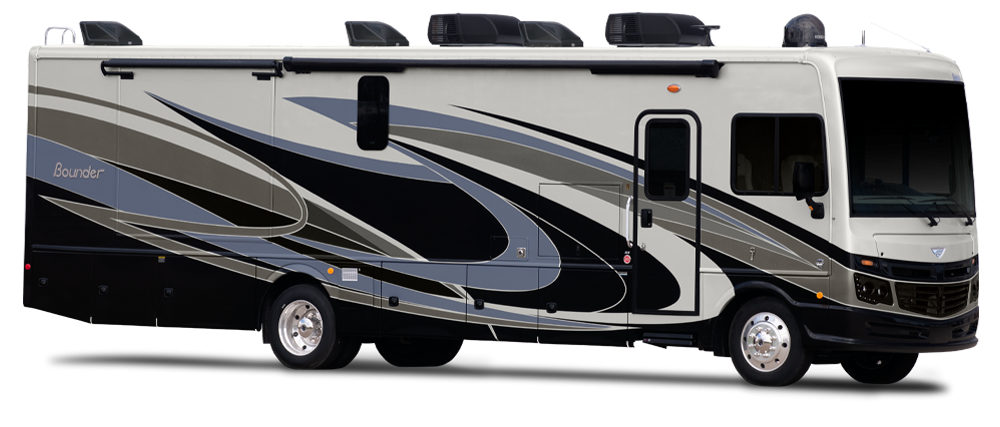

Bounder

Break free from boundaries.

There’s a lot to brag about when you’re the best-selling motorhome of all -time—which is just what Bounder is. With five floorplans, you can have bunkbeds, a Jack and Jill bath, a second bath or even 36 more square feet of patio space with the Extended Living Edition. Plus, you get Fleetwood’s exclusive Power Platform™ chassis and an automotive-style dash with dual monitors.

But just because Bounder is the champion of the RV world doesn’t mean it’s content to live on a legacy. For 2020, we’ve added as standard WiFiRangerTM Sky4 DC, a 7-inch touch-screen systems control panel and a 100w solar panel. Or, you can upgrade to a 265w panel.

For more than 30 years, Bounder has been a legend. Come be a part of it.

Chassis

Chassis Type:

Ford F-53 Motorhome Chassis

GVWR:

22000

GCWR:

26000

Rear Axle GAWR:

15000

Front Axle GAWR:

8000

Hitch Rating:

5000

Front suspension: Tapered Multi-Leaf:

S

Rear suspension: Tapered Multi-Leaf:

S

Power - 4 Wheel Disc (Hydro-boost) w/ABS:

S

Shock Absorbers - Bilstein™ 1.63-in. diameter:

S

Power Assisted Steering:

S

Stabilizer Bar Front & Rear:

S

Front Tires :

235/80R 22.5

Rear Tires:

235/80R 22.5

Front and Rear Aluminum Wheels:

S

Sumo Springs - Front/Rear:

O

Engine Equipment

Ford 6.8L Triton V10, 320 HP w/460 lb. Torque:

S

175 Amp Alternator:

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode:

S

Chassis Battery 72-amp:

S

6V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

208"

Exterior Length:

34'3"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

123

Basement Storage (cu.ft.):

160

# of Slideouts:

2

Capacities

Fuel (gal):

80

Fresh Water (gal):

100

Gray Waste Water (gal):

58

Black Waste Water (gal):

42

Appliance Propane (gal) (WC):

25

Water Heater (gal):

10

Tankless Water Heater:

-

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls; R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments:

S

Basement Storage Lighting w/Master Switch:

S

Heated Fresh Water and Holding Tank Compartments:

S

Power Platform Chassis Construction:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Full Coverage Heavy Duty Undercoating:

S

CSA Build:

O

Exterior

Aerodynamic Fiberglass Cap w/Automotive Headlighting:

S

Rear Fiberglass Cap w/Automotive Lighting:

S

ABS Wheel Well Skirts:

S

TPO Roof - Thermoplastic Polyolefin :

S

Legless Electric Patio Awning w/LED lighting and Wind Sensor Retract:

S

Slide Out Awning Toppers Above All Slideouts:

S

Radiused Entry Door w/Screendoor, Latch, Deadbolt Lock:

S

Black Luggage Door Handles:

S

Entry Grab Handle - Acrylic Lighted:

S

Power Entry Step w/Light Exterior :

S

Bus-Style Luggage Doors Side Swing Aluminum :

S

Frameless Dual Pane Windows :

S

Patio LED Light:

S

Front, Side and Rear Clearance and Marker lighting:

S

Auto Gen Start:

S

Gravity Fresh Water Fill:

S

Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves:

S

Park Cable and Satellite Hookup Exterior :

S

Trailer Hitch w/7-Way Round Tow Connection (lbs.):

5000

TV Antenna - Unidirectional King Controls Jack Antenna:

S

LP Connection Exterior :

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Rear Ladder:

S

4-Color Premier Full Body Paint w/Front Clear Mask:

S

Rain Covers Roof Vent :

S

King Universal Satellite System:

S

Cab Exterior

Automotive Windshield One-Piece :

S

Daytime Running Lights:

S

Driver/Passenger Tinted Slider Windows:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Blindspot Detection:

O

Cab Interior

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Manual Footrest, Reclining Back & Swivel:

S

Driver/Passenger ABS Style Armrests:

S

Driver/Passenger Cupholders :

S

Power Windshield Roller Shade:

S

Driver/Passenger Window Manual Roller Shades:

S

Driver/Passenger Overhead Map Flex Lighting:

S

Black Instrument Gauges w/Electronic Information Center:

S

Dash Air Conditioning and Heat High Output :

S

Cruise Control Electronic :

S

Windshield Wipers w/Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt Column:

S

Color Monitor for Side and Rear Cameras - 6" :

S

Kenwood® 6.2" Stereo w/AM/FM/CD/DVD/Bluetooth/ MP3/USB - Phone Control - Android Rapid Charge - Built in HD Radio – Pandora - Spotify – iHeart radio - Sirius/XM Ready (Requires Subscription) Wireless Music Browsing – Dual Phone Connection – Remote App – Backup camera – Variable Color Illumination:

S

Collision Mitigation w/6.95" Kenwood® Motorized Tilt Touch Screen Stereo w/AM/FM/CD/DVD/Bluetooth/ MP3/USB - Remote Control - Phone Control - Siri Eyes Free - Android Auto & Apple® Car Play w/Navigation - Android Rapid Charge - Built in HD Radio - Wireless Music Browsing - Pandora - Spotify - Sirius/XM Ready (Requires Subscription) :

O

Kenwood® Radio Speakers - 6 1/2" :

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Seat Belts Driver & Passenger - 3 Point w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlets :

S

Automotive Style Dash w/Dual Monitors and Work Station:

S

Pullout Storage Bin Center Dash :

S

Cab Lights:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Colored Fiberglass Engine Cover w/Snack Tray:

S

Cab Floor Mats - Front :

S

Cab Fans - Front :

S

Auto Leveling Jacks Controls:

S

Driver/Passenger Center Table:

S

Auxiliary Start Switch:

S

Hide-A-LoftTM Drop Down Queen Bed w/24" TV:

O

Interior

Sofa - Expandable L-Sofa:

O

Sofa - Tri-fold:

-

Sofa - Tri-fold w/Facing Booth Dinette w/Dream Dinette:

-

Sofa - Expandable L-Sofa and Free-Standing Dinette w/Credenza:

-

Sofa - Jack-knife:

S

Sofa - Theatre Seating:

O

Facing Booth Dinette w/Dream Dinette Table:

S

Free Standing Dinette w/Credenza:

O

Solid Surface Galley Top:

S

Surf-X Tops Throughout (Excluding Galley):

S

Electric Fireplace:

S

Feature Wall w/Accent Wall Covering:

S

Interior Flat Soft Touch Vinyl Ceiling:

S

Vinyl Tile Flooring Throughout:

S

Ozite Lined Cabinet Interiors:

S

Cedar Lined Wardrobe Interiors (Select Locations):

S

Full Extension Drawer Guides w/Latches Throughout:

S

Hidden Euro Hinges and Struts:

S

Panel Cabinet Doors Solid Wood Raised :

S

Ceiling Treatment Solid Wood :

S

Slideout Fascia - Interior Wood Color Coordinating :

S

Window Valances w/Lambrequins and Wood Accents:

S

Manual Day/Night Roller Shades:

S

Energy Efficient 3" LED Flush Mount Ceiling and Under Cabinet Reading Lights Throughout:

S

Slideouts Flush Floor Living :

S

Faucets, Fixtures and Hardware, Brushed Nickle :

S

Interior Entry

Battery Disconnect:

S

Interior Entry Grab Handle - Metal:

S

Multiplex Electric Controls w/App Control:

S

Entry Door Manual Roller Shade:

S

Solid Surface Entry Steps w/Lighted Stepwell:

S

Kitchen

Residential Refrigerator - Stainless Steel French Door Style w/Icemaker - Samsung:

S

Cooktop w/Solid Surface Covers 3-Burner :

S

Range w/Oven 3-Burner Drop-In :

O

Microwave Stainless Steel Over the Range Convection :

S

Tile Backsplash:

S

Large Galley Window w/Tiled Window Box:

S

Deep Double Bowl Undermount Stainless Steel Sink:

S

Solid Surface Sink Covers:

S

Faucet w/Pullout Sprayer Residential Single Handle :

S

Adjustable Shelves Throughout:

S

Power Ceiling Vent - Fantastic:

S

Waste Basket:

S

Manual Night Roller Shade:

S

Bedroom or Bunk Area

King Memory Foam Mattress:

S

Bunk Beds (Mutli-purpose Flip Bunk for Wardrobe and Seating w/Doors):

-

Designer Bedspread, Headboard, Pillow Shams & Pillows:

S

C-PAP Machine Prep in Bedroom Overhead:

S

120V/USB Ports:

S

Bathroom

Top Mounted Porcelain Sink:

-

Top Mounted Stainless Steel Sink:

S

Single Handle Residential Faucet:

S

Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Porcelain Macerator Toilet:

S

Porcelain VacuFlush Toilet:

-

Porcelain Standard Toilet:

-

Power Ceiling Vent - Fantastic:

S

Entertainment

40″ Flat Screen LED TV (Living Area):

S

32″ Flat Screen LED TV (Bedroom):

S

24″ Flat Screen LED TV (Bedroom):

-

24″ Flat Screen LED TV (Bunk Area):

-

24" Flat Screen LED TV (Front Overhead w/Hide-A-LoftTM Drop Down Bed):

O

HDMI Video Distribution:

S

Soundbar w/Blu-RayTM Player:

S

Exterior Entertainment Center w/40" LED TV, AM/FM/CD/DVD/BT, and Two Speakers:

S

Electric & Utilities

Dual-Roof Mount Ducted 15,000-BTU A/C Units w/Chill Grill and Rear Heat Pump:

S

34,000 BTU Furnace :

S

30,000/20,000 BTU Furnace :

-

Service: 50 AMP:

S

Converter: 60 AMP Power Converter:

S

Inverter: Single 2000w Pure Sine:

S

WiFi RangerTM Sky4:

S

WiFi RangerTM SkyPro Pack w/LTE and GPS:

O

100w Solar Panel:

S

265w Solar Panel:

O

Multiplex Wiring Control System w/7" Touchscreen Panel and App Control:

S

Auxiliary Batteries (4) 6V :

S

Neutral Loss Protection:

S

Generator: 5.5kW Onan®:

S

Auto Gen Start:

S

Battery Disconnect Switch Master :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Pump: 12V 5.3GPM High Capacity AquaJet Water Pump:

-

Water Purification System (Whole Coach):

S

Water Heater Bypass System:

S

Shower Exterior :

S

Cable TV/Satellite Hookup:

S

Black Holding Tank Flush System - San-T-Flush:

S

Single Location Monitor Panel w/LPG, Touch Sensor Tank Monitoring and Battery Readouts:

S

Fire Extinguisher, LP/CO and Smoke Detectors:

S

GFCI Receptacle in Exterior Storage:

S

Washer/Dryer Combo :

O

Washer/Dryer Stackable :

-

Washer/Dryer Prep Combo :

S

Water Heater Bypass System:

S

Water Heater Tankless :

-

50 AMP Shoreline Power Cord:

S
Chassis

Chassis Type:

Ford F-53 Motorhome Chassis

GVWR:

22000

GCWR:

26000

Rear Axle GAWR:

15000

Front Axle GAWR:

8000

Hitch Rating:

5000

Front suspension: Tapered Multi-Leaf:

S

Rear suspension: Tapered Multi-Leaf:

S

Power - 4 Wheel Disc (Hydro-boost) w/ABS:

S

Shock Absorbers - Bilstein™ 1.63-in. diameter:

S

Power Assisted Steering:

S

Stabilizer Bar Front & Rear:

S

Front Tires :

235/80R 22.5

Rear Tires:

235/80R 22.5

Front and Rear Aluminum Wheels:

S

Sumo Springs - Front/Rear:

O

Engine Equipment

Ford 6.8L Triton V10, 320 HP w/460 lb. Torque:

S

175 Amp Alternator:

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode:

S

Chassis Battery 72-amp:

S

6V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

228"

Exterior Length:

36'3"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

126

Basement Storage (cu.ft.):

180

# of Slideouts:

2

Capacities

Fuel (gal):

80

Fresh Water (gal):

100

Gray Waste Water (gal):

58

Black Waste Water (gal):

42

Appliance Propane (gal) (WC):

25

Water Heater (gal):

10

Tankless Water Heater:

-

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls; R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments:

S

Basement Storage Lighting w/Master Switch:

S

Heated Fresh Water and Holding Tank Compartments:

S

Power Platform Chassis Construction:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Full Coverage Heavy Duty Undercoating:

S

CSA Build:

O

Exterior

Aerodynamic Fiberglass Cap w/Automotive Headlighting:

S

Rear Fiberglass Cap w/Automotive Lighting:

S

ABS Wheel Well Skirts:

S

TPO Roof - Thermoplastic Polyolefin :

S

Legless Electric Patio Awning w/LED lighting and Wind Sensor Retract:

S

Slide Out Awning Toppers Above All Slideouts:

S

Radiused Entry Door w/Screendoor, Latch, Deadbolt Lock:

S

Black Luggage Door Handles:

S

Entry Grab Handle - Acrylic Lighted:

S

Power Entry Step w/Light Exterior :

S

Bus-Style Luggage Doors Side Swing Aluminum :

S

Frameless Dual Pane Windows :

S

Patio LED Light:

S

Front, Side and Rear Clearance and Marker lighting:

S

Auto Gen Start:

S

Gravity Fresh Water Fill:

S

Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves:

S

Park Cable and Satellite Hookup Exterior :

S

Trailer Hitch w/7-Way Round Tow Connection (lbs.):

5000

TV Antenna - Unidirectional King Controls Jack Antenna:

S

LP Connection Exterior :

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Rear Ladder:

S

4-Color Premier Full Body Paint w/Front Clear Mask:

S

Rain Covers Roof Vent :

S

King Universal Satellite System:

S

Cab Exterior

Automotive Windshield One-Piece :

S

Daytime Running Lights:

S

Driver/Passenger Tinted Slider Windows:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Blindspot Detection:

O

Cab Interior

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Manual Footrest, Reclining Back & Swivel:

S

Driver/Passenger ABS Style Armrests:

S

Driver/Passenger Cupholders :

S

Power Windshield Roller Shade:

S

Driver/Passenger Window Manual Roller Shades:

S

Driver/Passenger Overhead Map Flex Lighting:

S

Black Instrument Gauges w/Electronic Information Center:

S

Dash Air Conditioning and Heat High Output :

S

Cruise Control Electronic :

S

Windshield Wipers w/Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt Column:

S

Color Monitor for Side and Rear Cameras - 6" :

S

Kenwood® 6.2" Stereo w/AM/FM/CD/DVD/Bluetooth/ MP3/USB - Phone Control - Android Rapid Charge - Built in HD Radio – Pandora - Spotify – iHeart radio - Sirius/XM Ready (Requires Subscription) Wireless Music Browsing – Dual Phone Connection – Remote App – Backup camera – Variable Color Illumination:

S

Collision Mitigation w/6.95" Kenwood® Motorized Tilt Touch Screen Stereo w/AM/FM/CD/DVD/Bluetooth/ MP3/USB - Remote Control - Phone Control - Siri Eyes Free - Android Auto & Apple® Car Play w/Navigation - Android Rapid Charge - Built in HD Radio - Wireless Music Browsing - Pandora - Spotify - Sirius/XM Ready (Requires Subscription) :

O

Kenwood® Radio Speakers - 6 1/2" :

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Seat Belts Driver & Passenger - 3 Point w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlets :

S

Automotive Style Dash w/Dual Monitors and Work Station:

S

Pullout Storage Bin Center Dash :

S

Cab Lights:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Colored Fiberglass Engine Cover w/Snack Tray:

S

Cab Floor Mats - Front :

S

Cab Fans - Front :

S

Auto Leveling Jacks Controls:

S

Driver/Passenger Center Table:

S

Auxiliary Start Switch:

S

Hide-A-LoftTM Drop Down Queen Bed w/24" TV:

O

Interior

Sofa - Expandable L-Sofa:

O

Sofa - Tri-fold:

-

Sofa - Tri-fold w/Facing Booth Dinette w/Dream Dinette:

-

Sofa - Expandable L-Sofa and Free-Standing Dinette w/Credenza:

-

Sofa - Jack-knife:

S

Sofa - Theatre Seating:

O

Facing Booth Dinette w/Dream Dinette Table:

S

Free Standing Dinette w/Credenza:

O

Solid Surface Galley Top:

S

Surf-X Tops Throughout (Excluding Galley):

S

Electric Fireplace:

S

Feature Wall w/Accent Wall Covering:

S

Interior Flat Soft Touch Vinyl Ceiling:

S

Vinyl Tile Flooring Throughout:

S

Ozite Lined Cabinet Interiors:

S

Cedar Lined Wardrobe Interiors (Select Locations):

S

Full Extension Drawer Guides w/Latches Throughout:

S

Hidden Euro Hinges and Struts:

S

Panel Cabinet Doors Solid Wood Raised :

S

Ceiling Treatment Solid Wood :

S

Slideout Fascia - Interior Wood Color Coordinating :

S

Window Valances w/Lambrequins and Wood Accents:

S

Manual Day/Night Roller Shades:

S

Energy Efficient 3" LED Flush Mount Ceiling and Under Cabinet Reading Lights Throughout:

S

Slideouts Flush Floor Living :

S

Faucets, Fixtures and Hardware, Brushed Nickle :

S

Interior Entry

Battery Disconnect:

S

Interior Entry Grab Handle - Metal:

S

Multiplex Electric Controls w/App Control:

S

Entry Door Manual Roller Shade:

S

Solid Surface Entry Steps w/Lighted Stepwell:

S

Kitchen

Residential Refrigerator - Stainless Steel French Door Style w/Icemaker - Samsung:

S

Cooktop w/Solid Surface Covers 3-Burner :

S

Range w/Oven 3-Burner Drop-In :

O

Microwave Stainless Steel Over the Range Convection :

S

Tile Backsplash:

S

Large Galley Window w/Tiled Window Box:

S

Deep Double Bowl Undermount Stainless Steel Sink:

S

Solid Surface Sink Covers:

S

Faucet w/Pullout Sprayer Residential Single Handle :

S

Adjustable Shelves Throughout:

S

Power Ceiling Vent - Fantastic:

S

Waste Basket:

S

Manual Night Roller Shade:

S

Bedroom or Bunk Area

King Memory Foam Mattress:

S

Bunk Beds (Mutli-purpose Flip Bunk for Wardrobe and Seating w/Doors):

-

Designer Bedspread, Headboard, Pillow Shams & Pillows:

S

C-PAP Machine Prep in Bedroom Overhead:

S

120V/USB Ports:

S

Bathroom

Top Mounted Porcelain Sink:

S

Top Mounted Stainless Steel Sink:

S

Single Handle Residential Faucet:

S

Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Porcelain Macerator Toilet:

S

Porcelain VacuFlush Toilet:

-

Porcelain Standard Toilet:

-

Power Ceiling Vent - Fantastic:

S

Entertainment

40″ Flat Screen LED TV (Living Area):

S

32″ Flat Screen LED TV (Bedroom):

S

24″ Flat Screen LED TV (Bedroom):

-

24″ Flat Screen LED TV (Bunk Area):

-

24" Flat Screen LED TV (Front Overhead w/Hide-A-LoftTM Drop Down Bed):

O

HDMI Video Distribution:

S

Soundbar w/Blu-RayTM Player:

S

Exterior Entertainment Center w/40" LED TV, AM/FM/CD/DVD/BT, and Two Speakers:

S

Electric & Utilities

Dual-Roof Mount Ducted 15,000-BTU A/C Units w/Chill Grill and Rear Heat Pump:

S

34,000 BTU Furnace :

S

30,000/20,000 BTU Furnace :

-

Service: 50 AMP:

S

Converter: 60 AMP Power Converter:

S

Inverter: Single 2000w Pure Sine:

S

WiFi RangerTM Sky4:

S

WiFi RangerTM SkyPro Pack w/LTE and GPS:

O

100w Solar Panel:

S

265w Solar Panel:

O

Multiplex Wiring Control System w/7" Touchscreen Panel and App Control:

S

Auxiliary Batteries (4) 6V :

S

Neutral Loss Protection:

S

Generator: 5.5kW Onan®:

S

Auto Gen Start:

S

Battery Disconnect Switch Master :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Pump: 12V 5.3GPM High Capacity AquaJet Water Pump:

-

Water Purification System (Whole Coach):

S

Water Heater Bypass System:

S

Shower Exterior :

S

Cable TV/Satellite Hookup:

S

Black Holding Tank Flush System - San-T-Flush:

S

Single Location Monitor Panel w/LPG, Touch Sensor Tank Monitoring and Battery Readouts:

S

Fire Extinguisher, LP/CO and Smoke Detectors:

S

GFCI Receptacle in Exterior Storage:

S

Washer/Dryer Combo :

O

Washer/Dryer Stackable :

-

Washer/Dryer Prep Combo :

S

Water Heater Bypass System:

S

Water Heater Tankless :

-

50 AMP Shoreline Power Cord:

S
Chassis

Chassis Type:

Ford F-53 Motorhome Chassis

GVWR:

24000

GCWR:

30000

Rear Axle GAWR:

15500

Front Axle GAWR:

9000

Hitch Rating:

5000

Front suspension: Tapered Multi-Leaf:

S

Rear suspension: Tapered Multi-Leaf:

S

Power - 4 Wheel Disc (Hydro-boost) w/ABS:

S

Shock Absorbers - Bilstein™ 1.63-in. diameter:

S

Power Assisted Steering:

S

Stabilizer Bar Front & Rear:

S

Front Tires :

255/80R 22.5

Rear Tires:

255/80R 22.5

Front and Rear Aluminum Wheels:

S

Sumo Springs - Front/Rear:

O

Engine Equipment

Ford 6.8L Triton V10, 320 HP w/460 lb. Torque:

S

175 Amp Alternator:

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode:

S

Chassis Battery 72-amp:

S

6V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

252"

Exterior Length:

36'3"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

144

Basement Storage (cu.ft.):

138

# of Slideouts:

4

Capacities

Fuel (gal):

80

Fresh Water (gal):

100

Gray Waste Water (gal):

46

Black Waste Water (gal):

30

Appliance Propane (gal) (WC):

25

Water Heater (gal):

10

Tankless Water Heater:

-

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls; R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments:

S

Basement Storage Lighting w/Master Switch:

S

Heated Fresh Water and Holding Tank Compartments:

S

Power Platform Chassis Construction:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Full Coverage Heavy Duty Undercoating:

S

CSA Build:

O

Exterior

Aerodynamic Fiberglass Cap w/Automotive Headlighting:

S

Rear Fiberglass Cap w/Automotive Lighting:

S

ABS Wheel Well Skirts:

S

TPO Roof - Thermoplastic Polyolefin :

S

Legless Electric Patio Awning w/LED lighting and Wind Sensor Retract:

S

Slide Out Awning Toppers Above All Slideouts:

S

Radiused Entry Door w/Screendoor, Latch, Deadbolt Lock:

S

Black Luggage Door Handles:

S

Entry Grab Handle - Acrylic Lighted:

S

Power Entry Step w/Light Exterior :

S

Bus-Style Luggage Doors Side Swing Aluminum :

S

Frameless Dual Pane Windows :

S

Patio LED Light:

S

Front, Side and Rear Clearance and Marker lighting:

S

Auto Gen Start:

S

Gravity Fresh Water Fill:

S

Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves:

S

Park Cable and Satellite Hookup Exterior :

S

Trailer Hitch w/7-Way Round Tow Connection (lbs.):

5000

TV Antenna - Unidirectional King Controls Jack Antenna:

S

LP Connection Exterior :

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Rear Ladder:

S

4-Color Premier Full Body Paint w/Front Clear Mask:

S

Rain Covers Roof Vent :

S

King Universal Satellite System:

S

Cab Exterior

Automotive Windshield One-Piece :

S

Daytime Running Lights:

S

Driver/Passenger Tinted Slider Windows:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Blindspot Detection:

O

Cab Interior

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Manual Footrest, Reclining Back & Swivel:

S

Driver/Passenger ABS Style Armrests:

S

Driver/Passenger Cupholders :

S

Power Windshield Roller Shade:

S

Driver/Passenger Window Manual Roller Shades:

S

Driver/Passenger Overhead Map Flex Lighting:

S

Black Instrument Gauges w/Electronic Information Center:

S

Dash Air Conditioning and Heat High Output :

S

Cruise Control Electronic :

S

Windshield Wipers w/Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt Column:

S

Color Monitor for Side and Rear Cameras - 6" :

S

Kenwood® 6.2" Stereo w/AM/FM/CD/DVD/Bluetooth/ MP3/USB - Phone Control - Android Rapid Charge - Built in HD Radio – Pandora - Spotify – iHeart radio - Sirius/XM Ready (Requires Subscription) Wireless Music Browsing – Dual Phone Connection – Remote App – Backup camera – Variable Color Illumination:

S

Collision Mitigation w/6.95" Kenwood® Motorized Tilt Touch Screen Stereo w/AM/FM/CD/DVD/Bluetooth/ MP3/USB - Remote Control - Phone Control - Siri Eyes Free - Android Auto & Apple® Car Play w/Navigation - Android Rapid Charge - Built in HD Radio - Wireless Music Browsing - Pandora - Spotify - Sirius/XM Ready (Requires Subscription) :

O

Kenwood® Radio Speakers - 6 1/2" :

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Seat Belts Driver & Passenger - 3 Point w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlets :

S

Automotive Style Dash w/Dual Monitors and Work Station:

S

Pullout Storage Bin Center Dash :

S

Cab Lights:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Colored Fiberglass Engine Cover w/Snack Tray:

S

Cab Floor Mats - Front :

S

Cab Fans - Front :

S

Auto Leveling Jacks Controls:

S

Driver/Passenger Center Table:

S

Auxiliary Start Switch:

S

Hide-A-LoftTM Drop Down Queen Bed w/24" TV:

O

Interior

Sofa - Expandable L-Sofa:

-

Sofa - Tri-fold:

-

Sofa - Tri-fold w/Facing Booth Dinette w/Dream Dinette:

S

Sofa - Expandable L-Sofa and Free-Standing Dinette w/Credenza:

O

Sofa - Jack-knife:

-

Sofa - Theatre Seating:

-

Facing Booth Dinette w/Dream Dinette Table:

S

Free Standing Dinette w/Credenza:

O

Solid Surface Galley Top:

S

Surf-X Tops Throughout (Excluding Galley):

S

Electric Fireplace:

S

Feature Wall w/Accent Wall Covering:

S

Interior Flat Soft Touch Vinyl Ceiling:

S

Vinyl Tile Flooring Throughout:

S

Ozite Lined Cabinet Interiors:

S

Cedar Lined Wardrobe Interiors (Select Locations):

S

Full Extension Drawer Guides w/Latches Throughout:

S

Hidden Euro Hinges and Struts:

S

Panel Cabinet Doors Solid Wood Raised :

S

Ceiling Treatment Solid Wood :

S

Slideout Fascia - Interior Wood Color Coordinating :

S

Window Valances w/Lambrequins and Wood Accents:

S

Manual Day/Night Roller Shades:

S

Energy Efficient 3" LED Flush Mount Ceiling and Under Cabinet Reading Lights Throughout:

S

Slideouts Flush Floor Living :

S

Faucets, Fixtures and Hardware, Brushed Nickle :

S

Interior Entry

Battery Disconnect:

S

Interior Entry Grab Handle - Metal:

S

Multiplex Electric Controls w/App Control:

S

Entry Door Manual Roller Shade:

S

Solid Surface Entry Steps w/Lighted Stepwell:

S

Kitchen

Residential Refrigerator - Stainless Steel French Door Style w/Icemaker - Samsung:

S

Cooktop w/Solid Surface Covers 3-Burner :

S

Range w/Oven 3-Burner Drop-In :

O

Microwave Stainless Steel Over the Range Convection :

S

Tile Backsplash:

S

Large Galley Window w/Tiled Window Box:

-

Deep Double Bowl Undermount Stainless Steel Sink:

S

Solid Surface Sink Covers:

S

Faucet w/Pullout Sprayer Residential Single Handle :

S

Adjustable Shelves Throughout:

S

Power Ceiling Vent - Fantastic:

S

Waste Basket:

S

Manual Night Roller Shade:

S

Bedroom or Bunk Area

King Memory Foam Mattress:

S

Bunk Beds (Mutli-purpose Flip Bunk for Wardrobe and Seating w/Doors):

-

Designer Bedspread, Headboard, Pillow Shams & Pillows:

S

C-PAP Machine Prep in Bedroom Overhead:

S

120V/USB Ports:

S

Bathroom

Top Mounted Porcelain Sink:

-

Top Mounted Stainless Steel Sink:

S

Single Handle Residential Faucet:

S

Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Porcelain Macerator Toilet:

-

Porcelain VacuFlush Toilet:

-

Porcelain Standard Toilet:

S

Power Ceiling Vent - Fantastic:

S

Entertainment

40″ Flat Screen LED TV (Living Area):

S

32″ Flat Screen LED TV (Bedroom):

S

24″ Flat Screen LED TV (Bedroom):

-

24″ Flat Screen LED TV (Bunk Area):

-

24" Flat Screen LED TV (Front Overhead w/Hide-A-LoftTM Drop Down Bed):

O

HDMI Video Distribution:

S

Soundbar w/Blu-RayTM Player:

S

Exterior Entertainment Center w/40" LED TV, AM/FM/CD/DVD/BT, and Two Speakers:

S

Electric & Utilities

Dual-Roof Mount Ducted 15,000-BTU A/C Units w/Chill Grill and Rear Heat Pump:

S

34,000 BTU Furnace :

S

30,000/20,000 BTU Furnace :

-

Service: 50 AMP:

S

Converter: 60 AMP Power Converter:

S

Inverter: Single 2000w Pure Sine:

S

WiFi RangerTM Sky4:

S

WiFi RangerTM SkyPro Pack w/LTE and GPS:

O

100w Solar Panel:

S

265w Solar Panel:

O

Multiplex Wiring Control System w/7" Touchscreen Panel and App Control:

S

Auxiliary Batteries (4) 6V :

S

Neutral Loss Protection:

S

Generator: 5.5kW Onan®:

S

Auto Gen Start:

S

Battery Disconnect Switch Master :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Pump: 12V 5.3GPM High Capacity AquaJet Water Pump:

-

Water Purification System (Whole Coach):

S

Water Heater Bypass System:

S

Shower Exterior :

S

Cable TV/Satellite Hookup:

S

Black Holding Tank Flush System - San-T-Flush:

S

Single Location Monitor Panel w/LPG, Touch Sensor Tank Monitoring and Battery Readouts:

S

Fire Extinguisher, LP/CO and Smoke Detectors:

S

GFCI Receptacle in Exterior Storage:

S

Washer/Dryer Combo :

-

Washer/Dryer Stackable :

S

Washer/Dryer Prep Combo :

-

Water Heater Bypass System:

S

Water Heater Tankless :

-

50 AMP Shoreline Power Cord:

S
Chassis

Chassis Type:

Ford F-53 Motorhome Chassis

GVWR:

24000

GCWR:

30000

Rear Axle GAWR:

15500

Front Axle GAWR:

9000

Hitch Rating:

8000

Front suspension: Tapered Multi-Leaf:

S

Rear suspension: Tapered Multi-Leaf:

S

Power - 4 Wheel Disc (Hydro-boost) w/ABS:

S

Shock Absorbers - Bilstein™ 1.63-in. diameter:

S

Power Assisted Steering:

S

Stabilizer Bar Front & Rear:

S

Front Tires :

255/80R 22.5

Rear Tires:

255/80R 22.5

Front and Rear Aluminum Wheels:

S

Sumo Springs - Front/Rear:

O

Engine Equipment

Ford 6.8L Triton V10, 320 HP w/460 lb. Torque:

S

175 Amp Alternator:

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode:

S

Chassis Battery 72-amp:

S

6V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

242"

Exterior Length:

38'9"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

171

Basement Storage (cu.ft.):

170

# of Slideouts:

2

Capacities

Fuel (gal):

80

Fresh Water (gal):

100

Gray Waste Water (gal):

45

Black Waste Water (gal):

50

Appliance Propane (gal) (WC):

25

Water Heater (gal):

-

Tankless Water Heater:

S

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls; R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments:

S

Basement Storage Lighting w/Master Switch:

S

Heated Fresh Water and Holding Tank Compartments:

S

Power Platform Chassis Construction:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Full Coverage Heavy Duty Undercoating:

S

CSA Build:

O

Exterior

Aerodynamic Fiberglass Cap w/Automotive Headlighting:

S

Rear Fiberglass Cap w/Automotive Lighting:

S

ABS Wheel Well Skirts:

S

TPO Roof - Thermoplastic Polyolefin :

S

Legless Electric Patio Awning w/LED lighting and Wind Sensor Retract:

S

Slide Out Awning Toppers Above All Slideouts:

S

Radiused Entry Door w/Screendoor, Latch, Deadbolt Lock:

S

Black Luggage Door Handles:

S

Entry Grab Handle - Acrylic Lighted:

S

Power Entry Step w/Light Exterior :

S

Bus-Style Luggage Doors Side Swing Aluminum :

S

Frameless Dual Pane Windows :

S

Patio LED Light:

S

Front, Side and Rear Clearance and Marker lighting:

S

Auto Gen Start:

S

Gravity Fresh Water Fill:

S

Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves:

S

Park Cable and Satellite Hookup Exterior :

S

Trailer Hitch w/7-Way Round Tow Connection (lbs.):

8000

TV Antenna - Unidirectional King Controls Jack Antenna:

S

LP Connection Exterior :

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Rear Ladder:

S

4-Color Premier Full Body Paint w/Front Clear Mask:

S

Rain Covers Roof Vent :

S

King Universal Satellite System:

S

Cab Exterior

Automotive Windshield One-Piece :

S

Daytime Running Lights:

S

Driver/Passenger Tinted Slider Windows:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Blindspot Detection:

O

Cab Interior

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Manual Footrest, Reclining Back & Swivel:

S

Driver/Passenger ABS Style Armrests:

S

Driver/Passenger Cupholders :

S

Power Windshield Roller Shade:

S

Driver/Passenger Window Manual Roller Shades:

S

Driver/Passenger Overhead Map Flex Lighting:

S

Black Instrument Gauges w/Electronic Information Center:

S

Dash Air Conditioning and Heat High Output :

S

Cruise Control Electronic :

S

Windshield Wipers w/Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt Column:

S

Color Monitor for Side and Rear Cameras - 6" :

S

Kenwood® 6.2" Stereo w/AM/FM/CD/DVD/Bluetooth/ MP3/USB - Phone Control - Android Rapid Charge - Built in HD Radio – Pandora - Spotify – iHeart radio - Sirius/XM Ready (Requires Subscription) Wireless Music Browsing – Dual Phone Connection – Remote App – Backup camera – Variable Color Illumination:

S

Collision Mitigation w/6.95" Kenwood® Motorized Tilt Touch Screen Stereo w/AM/FM/CD/DVD/Bluetooth/ MP3/USB - Remote Control - Phone Control - Siri Eyes Free - Android Auto & Apple® Car Play w/Navigation - Android Rapid Charge - Built in HD Radio - Wireless Music Browsing - Pandora - Spotify - Sirius/XM Ready (Requires Subscription) :

O

Kenwood® Radio Speakers - 6 1/2" :

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Seat Belts Driver & Passenger - 3 Point w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlets :

S

Automotive Style Dash w/Dual Monitors and Work Station:

S

Pullout Storage Bin Center Dash :

S

Cab Lights:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Colored Fiberglass Engine Cover w/Snack Tray:

S

Cab Floor Mats - Front :

S

Cab Fans - Front :

S

Auto Leveling Jacks Controls:

S

Driver/Passenger Center Table:

S

Auxiliary Start Switch:

S

Hide-A-LoftTM Drop Down Queen Bed w/24" TV:

O

Interior

Sofa - Expandable L-Sofa:

-

Sofa - Tri-fold:

S

Sofa - Tri-fold w/Facing Booth Dinette w/Dream Dinette:

-

Sofa - Expandable L-Sofa and Free-Standing Dinette w/Credenza:

-

Sofa - Jack-knife:

-

Sofa - Theatre Seating:

O

Facing Booth Dinette w/Dream Dinette Table:

S

Free Standing Dinette w/Credenza:

-

Solid Surface Galley Top:

S

Surf-X Tops Throughout (Excluding Galley):

S

Electric Fireplace:

S

Feature Wall w/Accent Wall Covering:

S

Interior Flat Soft Touch Vinyl Ceiling:

S

Vinyl Tile Flooring Throughout:

S

Ozite Lined Cabinet Interiors:

S

Cedar Lined Wardrobe Interiors (Select Locations):

S

Full Extension Drawer Guides w/Latches Throughout:

S

Hidden Euro Hinges and Struts:

S

Panel Cabinet Doors Solid Wood Raised :

S

Ceiling Treatment Solid Wood :

S

Slideout Fascia - Interior Wood Color Coordinating :

S

Window Valances w/Lambrequins and Wood Accents:

S

Manual Day/Night Roller Shades:

S

Energy Efficient 3" LED Flush Mount Ceiling and Under Cabinet Reading Lights Throughout:

S

Slideouts Flush Floor Living :

-

Faucets, Fixtures and Hardware, Brushed Nickle :

S

Interior Entry

Battery Disconnect:

S

Interior Entry Grab Handle - Metal:

S

Multiplex Electric Controls w/App Control:

S

Entry Door Manual Roller Shade:

S

Solid Surface Entry Steps w/Lighted Stepwell:

S

Kitchen

Residential Refrigerator - Stainless Steel French Door Style w/Icemaker - Samsung:

S

Cooktop w/Solid Surface Covers 3-Burner :

S

Range w/Oven 3-Burner Drop-In :

O

Microwave Stainless Steel Over the Range Convection :

S

Tile Backsplash:

S

Large Galley Window w/Tiled Window Box:

S

Deep Double Bowl Undermount Stainless Steel Sink:

S

Solid Surface Sink Covers:

S

Faucet w/Pullout Sprayer Residential Single Handle :

S

Adjustable Shelves Throughout:

S

Power Ceiling Vent - Fantastic:

S

Waste Basket:

S

Manual Night Roller Shade:

S

Bedroom or Bunk Area

King Memory Foam Mattress:

S

Bunk Beds (Mutli-purpose Flip Bunk for Wardrobe and Seating w/Doors):

S

Designer Bedspread, Headboard, Pillow Shams & Pillows:

S

C-PAP Machine Prep in Bedroom Overhead:

S

120V/USB Ports:

S

Bathroom

Top Mounted Porcelain Sink:

-

Top Mounted Stainless Steel Sink:

S

Single Handle Residential Faucet:

S

Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Porcelain Macerator Toilet:

S

Porcelain VacuFlush Toilet:

-

Porcelain Standard Toilet:

-

Power Ceiling Vent - Fantastic:

S

Entertainment

40″ Flat Screen LED TV (Living Area):

S

32″ Flat Screen LED TV (Bedroom):

-

24″ Flat Screen LED TV (Bedroom):

S

24″ Flat Screen LED TV (Bunk Area):

S

24" Flat Screen LED TV (Front Overhead w/Hide-A-LoftTM Drop Down Bed):

O

HDMI Video Distribution:

S

Soundbar w/Blu-RayTM Player:

S

Exterior Entertainment Center w/40" LED TV, AM/FM/CD/DVD/BT, and Two Speakers:

S

Electric & Utilities

Dual-Roof Mount Ducted 15,000-BTU A/C Units w/Chill Grill and Rear Heat Pump:

S

34,000 BTU Furnace :

-

30,000/20,000 BTU Furnace :

S

Service: 50 AMP:

S

Converter: 60 AMP Power Converter:

S

Inverter: Single 2000w Pure Sine:

S

WiFi RangerTM Sky4:

S

WiFi RangerTM SkyPro Pack w/LTE and GPS:

O

100w Solar Panel:

S

265w Solar Panel:

O

Multiplex Wiring Control System w/7" Touchscreen Panel and App Control:

S

Auxiliary Batteries (4) 6V :

S

Neutral Loss Protection:

S

Generator: 5.5kW Onan®:

S

Auto Gen Start:

S

Battery Disconnect Switch Master :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

-

Water Pump: 12V 5.3GPM High Capacity AquaJet Water Pump:

S

Water Purification System (Whole Coach):

S

Water Heater Bypass System:

S

Shower Exterior :

S

Cable TV/Satellite Hookup:

S

Black Holding Tank Flush System - San-T-Flush:

S

Single Location Monitor Panel w/LPG, Touch Sensor Tank Monitoring and Battery Readouts:

S

Fire Extinguisher, LP/CO and Smoke Detectors:

S

GFCI Receptacle in Exterior Storage:

S

Washer/Dryer Combo :

O

Washer/Dryer Stackable :

-

Washer/Dryer Prep Combo :

S

Water Heater Bypass System:

-

Water Heater Tankless :

S

50 AMP Shoreline Power Cord:

S
Chassis

Chassis Type:

Ford F-53 Motorhome Chassis

GVWR:

26000

GCWR:

30000

Rear Axle GAWR:

17500

Front Axle GAWR:

9000

Hitch Rating:

8000

Front suspension: Tapered Multi-Leaf:

S

Rear suspension: Tapered Multi-Leaf:

S

Power - 4 Wheel Disc (Hydro-boost) w/ABS:

S

Shock Absorbers - Bilstein™ 1.63-in. diameter:

S

Power Assisted Steering:

S

Stabilizer Bar Front & Rear:

S

Front Tires :

255/80R 22.5

Rear Tires:

255/80R 22.5

Front and Rear Aluminum Wheels:

S

Sumo Springs - Front/Rear:

O

Engine Equipment

Ford 6.8L Triton V10, 320 HP w/460 lb. Torque:

S

175 Amp Alternator:

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode:

S

Chassis Battery 72-amp:

S

6V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

242"

Exterior Length:

39'1"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

171

Basement Storage (cu.ft.):

170

# of Slideouts:

2

Capacities

Fuel (gal):

80

Fresh Water (gal):

100

Gray Waste Water (gal):

45

Black Waste Water (gal):

50

Appliance Propane (gal) (WC):

25

Water Heater (gal):

-

Tankless Water Heater:

S

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls; R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments:

S

Basement Storage Lighting w/Master Switch:

S

Heated Fresh Water and Holding Tank Compartments:

S

Power Platform Chassis Construction:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Full Coverage Heavy Duty Undercoating:

S

CSA Build:

O

Exterior

Aerodynamic Fiberglass Cap w/Automotive Headlighting:

S

Rear Fiberglass Cap w/Automotive Lighting:

S

ABS Wheel Well Skirts:

S

TPO Roof - Thermoplastic Polyolefin :

S

Legless Electric Patio Awning w/LED lighting and Wind Sensor Retract:

S

Slide Out Awning Toppers Above All Slideouts:

S

Radiused Entry Door w/Screendoor, Latch, Deadbolt Lock:

S

Black Luggage Door Handles:

S

Entry Grab Handle - Acrylic Lighted:

S

Power Entry Step w/Light Exterior :

S

Bus-Style Luggage Doors Side Swing Aluminum :

S

Frameless Dual Pane Windows :

S

Patio LED Light:

S

Front, Side and Rear Clearance and Marker lighting:

S

Auto Gen Start:

S

Gravity Fresh Water Fill:

S

Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves:

S

Park Cable and Satellite Hookup Exterior :

S

Trailer Hitch w/7-Way Round Tow Connection (lbs.):

8000

TV Antenna - Unidirectional King Controls Jack Antenna:

S

LP Connection Exterior :

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Rear Ladder:

S

4-Color Premier Full Body Paint w/Front Clear Mask:

S

Rain Covers Roof Vent :

S

King Universal Satellite System:

S

Cab Exterior

Automotive Windshield One-Piece :

S

Daytime Running Lights:

S

Driver/Passenger Tinted Slider Windows:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Blindspot Detection:

O

Cab Interior

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Manual Footrest, Reclining Back & Swivel:

S

Driver/Passenger ABS Style Armrests:

S

Driver/Passenger Cupholders :

S

Power Windshield Roller Shade:

S

Driver/Passenger Window Manual Roller Shades:

S

Driver/Passenger Overhead Map Flex Lighting:

S

Black Instrument Gauges w/Electronic Information Center:

S

Dash Air Conditioning and Heat High Output :

S

Cruise Control Electronic :

S

Windshield Wipers w/Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt Column:

S

Color Monitor for Side and Rear Cameras - 6" :

S

Kenwood® 6.2" Stereo w/AM/FM/CD/DVD/Bluetooth/ MP3/USB - Phone Control - Android Rapid Charge - Built in HD Radio – Pandora - Spotify – iHeart radio - Sirius/XM Ready (Requires Subscription) Wireless Music Browsing – Dual Phone Connection – Remote App – Backup camera – Variable Color Illumination:

S

Collision Mitigation w/6.95" Kenwood® Motorized Tilt Touch Screen Stereo w/AM/FM/CD/DVD/Bluetooth/ MP3/USB - Remote Control - Phone Control - Siri Eyes Free - Android Auto & Apple® Car Play w/Navigation - Android Rapid Charge - Built in HD Radio - Wireless Music Browsing - Pandora - Spotify - Sirius/XM Ready (Requires Subscription) :

O

Kenwood® Radio Speakers - 6 1/2" :

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Seat Belts Driver & Passenger - 3 Point w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlets :

S

Automotive Style Dash w/Dual Monitors and Work Station:

S

Pullout Storage Bin Center Dash :

S

Cab Lights:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Colored Fiberglass Engine Cover w/Snack Tray:

S

Cab Floor Mats - Front :

S

Cab Fans - Front :

S

Auto Leveling Jacks Controls:

S

Driver/Passenger Center Table:

S

Auxiliary Start Switch:

S

Hide-A-LoftTM Drop Down Queen Bed w/24" TV:

O

Interior

Sofa - Expandable L-Sofa:

-

Sofa - Tri-fold:

S

Sofa - Tri-fold w/Facing Booth Dinette w/Dream Dinette:

-

Sofa - Expandable L-Sofa and Free-Standing Dinette w/Credenza:

-

Sofa - Jack-knife:

-

Sofa - Theatre Seating:

O

Facing Booth Dinette w/Dream Dinette Table:

S

Free Standing Dinette w/Credenza:

-

Solid Surface Galley Top:

S

Surf-X Tops Throughout (Excluding Galley):

S

Electric Fireplace:

S

Feature Wall w/Accent Wall Covering:

S

Interior Flat Soft Touch Vinyl Ceiling:

S

Vinyl Tile Flooring Throughout:

S

Ozite Lined Cabinet Interiors:

S

Cedar Lined Wardrobe Interiors (Select Locations):

S

Full Extension Drawer Guides w/Latches Throughout:

S

Hidden Euro Hinges and Struts:

S

Panel Cabinet Doors Solid Wood Raised :

S

Ceiling Treatment Solid Wood :

S

Slideout Fascia - Interior Wood Color Coordinating :

S

Window Valances w/Lambrequins and Wood Accents:

S

Manual Day/Night Roller Shades:

S

Energy Efficient 3" LED Flush Mount Ceiling and Under Cabinet Reading Lights Throughout:

S

Slideouts Flush Floor Living :

-

Faucets, Fixtures and Hardware, Brushed Nickle :

S

Interior Entry

Battery Disconnect:

S

Interior Entry Grab Handle - Metal:

S

Multiplex Electric Controls w/App Control:

S

Entry Door Manual Roller Shade:

S

Solid Surface Entry Steps w/Lighted Stepwell:

S

Kitchen

Residential Refrigerator - Stainless Steel French Door Style w/Icemaker - Samsung:

S

Cooktop w/Solid Surface Covers 3-Burner :

S

Range w/Oven 3-Burner Drop-In :

O

Microwave Stainless Steel Over the Range Convection :

S

Tile Backsplash:

S

Large Galley Window w/Tiled Window Box:

S

Deep Double Bowl Undermount Stainless Steel Sink:

S

Solid Surface Sink Covers:

S

Faucet w/Pullout Sprayer Residential Single Handle :

S

Adjustable Shelves Throughout:

S

Power Ceiling Vent - Fantastic:

S

Waste Basket:

S

Manual Night Roller Shade:

S

Bedroom or Bunk Area

King Memory Foam Mattress:

S

Bunk Beds (Mutli-purpose Flip Bunk for Wardrobe and Seating w/Doors):

S

Designer Bedspread, Headboard, Pillow Shams & Pillows:

S

C-PAP Machine Prep in Bedroom Overhead:

S

120V/USB Ports:

S

Bathroom

Top Mounted Porcelain Sink:

-

Top Mounted Stainless Steel Sink:

S

Single Handle Residential Faucet:

S

Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Porcelain Macerator Toilet:

-

Porcelain VacuFlush Toilet:

S

Porcelain Standard Toilet:

-

Power Ceiling Vent - Fantastic:

S

Entertainment

40″ Flat Screen LED TV (Living Area):

S

32″ Flat Screen LED TV (Bedroom):

-

24″ Flat Screen LED TV (Bedroom):

S

24″ Flat Screen LED TV (Bunk Area):

S

24" Flat Screen LED TV (Front Overhead w/Hide-A-LoftTM Drop Down Bed):

O

HDMI Video Distribution:

S

Soundbar w/Blu-RayTM Player:

S

Exterior Entertainment Center w/40" LED TV, AM/FM/CD/DVD/BT, and Two Speakers:

S

Electric & Utilities

Dual-Roof Mount Ducted 15,000-BTU A/C Units w/Chill Grill and Rear Heat Pump:

S

34,000 BTU Furnace :

-

30,000/20,000 BTU Furnace :

S

Service: 50 AMP:

S

Converter: 60 AMP Power Converter:

S

Inverter: Single 2000w Pure Sine:

S

WiFi RangerTM Sky4:

S

WiFi RangerTM SkyPro Pack w/LTE and GPS:

O

100w Solar Panel:

S

265w Solar Panel:

O

Multiplex Wiring Control System w/7" Touchscreen Panel and App Control:

S

Auxiliary Batteries (4) 6V :

S

Neutral Loss Protection:

S

Generator: 5.5kW Onan®:

S

Auto Gen Start:

S

Battery Disconnect Switch Master :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

-

Water Pump: 12V 5.3GPM High Capacity AquaJet Water Pump:

S

Water Purification System (Whole Coach):

S

Water Heater Bypass System:

S

Shower Exterior :

S

Cable TV/Satellite Hookup:

S

Black Holding Tank Flush System - San-T-Flush:

S

Single Location Monitor Panel w/LPG, Touch Sensor Tank Monitoring and Battery Readouts:

S

Fire Extinguisher, LP/CO and Smoke Detectors:

S

GFCI Receptacle in Exterior Storage:

S

Washer/Dryer Combo :

-

Washer/Dryer Stackable :

-

Washer/Dryer Prep Combo :

-

Water Heater Bypass System:

-

Water Heater Tankless :

S

50 AMP Shoreline Power Cord:

S

Bounder

Break free from boundaries.

Fleetwood Discovery LXE

Fleetwood Fortis
