Class A

Discovery LXE

Discover more.

Brochure, opens in a new window

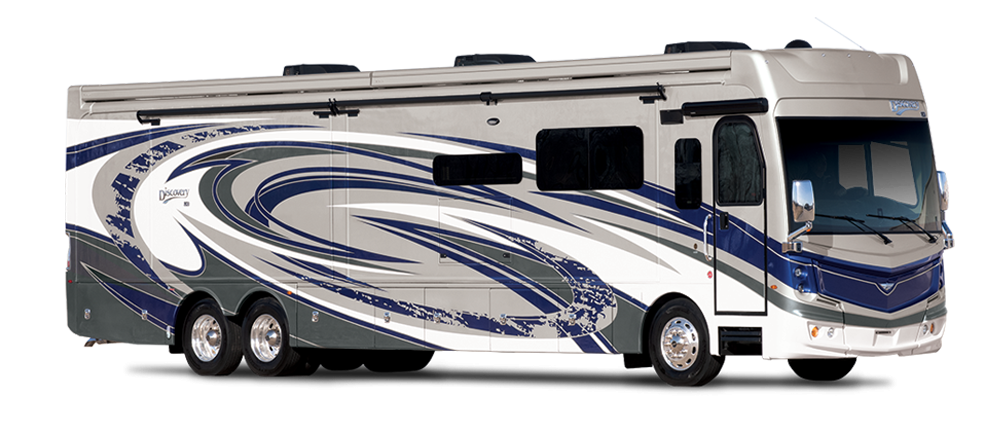

2020 Dis LXE 3 Qtr

Discover more.

Luxury is what defines Discovery LXE. It starts with the Freedom Bridge™ platform and a digital dash with push button start and dual monitors. Beauty meets convenience with Roadwire® front seats, porcelain floors and a Whirlpool® dishwasher.

We even managed to take Discovery LXE up a notch in 2020. Two new floorplans maximize the length to 44 feet, where you enjoy independent suspension, 450 horsepower and a 15,000-pound towing capacity. And you can add a second full bay 90-inch slide-out tray or Hide-A-Loft™ twin bed to any of our floorplans.

Comfort, luxury, convenience, space—Discovery LXE simply checks all the boxes.

Chassis

Chassis Type:

FREIGHTLINER XCM

GVWR:

36400

GCWR:

46400

Rear Axle GAWR:

24000

Rear Tag GAWR:

-

Front Axle GAWR:

12400

Hitch Rating:

10000

Front Suspension: Neway Air Suspension:

S

Independent Front Air Suspension:

-

Wheel Cut 55 Degree :

S

Rear Suspension: V-Ride Air Suspension:

S

Front Brakes: ADB22X AIR DISC w/ABS:

S

Rear Brakes: 16.5X8.62D ES CAST SPIDER CAM REAR BRAKES/ ABS:

S

15 X 5 Q+ CAM PUSHER/TAG BRAKES:

-

Tuned Sachs Shocks:

S

Power Assisted Steering:

S

Suspended Pedals (FCCC):

S

Push Buttom Start (FCCC):

S

Auto Headlight (FCCC):

S

Electronic Dash (FCCC):

S

Engine Equipment

Cummins® ISL9 380 HP w/1,150 lb-ft Torque:

S

Cummins® ISL9 450 HP w/1,250 lb-ft Torque:

-

Alternator- Delco® Remy 160 AMP:

S

Allison® 3000 MH 6-Speed Automatic Transmission w/Electronic Shift Control:

S

Chassis Battery 72 AMP:

S

Chassis Batteries 6V Heavy Duty (2) :

S

Tires and Wheels

Front Tires :

275/80R 22.5H

Rear Tires:

275/80R 22.5H

Rear Tag Tires:

-

Aluminum Wheels Front/Rear :

S

Valve Stem Extensions:

S

Sizes

Wheelbase:

276"

Exterior Length:

41'4"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

162

Basement Storage (cu.ft.):

157

# of Slideouts:

3

Capacities

Fuel (gal):

100

Fresh Water (gal):

105

Gray Waste Water (gal):

75

Black Waste Water (gal):

50

400 Aqua Hot®:

S

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-BondTM Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Composite Floor and Wall Construction:

S

Heated Fresh Water and Holding Tank Compartments:

S

Freedom Bridge® Chassis Construcion:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Undercoating Full Coverage Heavy Duty :

S

CSA Build:

O

Exterior

Four-Color Premier Full Body Paint:

S

Fiberglass Wheel Well Trims:

S

One piece Molded Fiberglass Domed Roof:

S

Awning - Electric Patio Awning w/ LED lighting and Wind Sensor Retract - Girard:

S

Powered entrance awning w/LED lighting:

S

Slide Out Awning Toppers above all Slideouts - Dometic:

S

Entrance Door - Radius trimmed door w/ black interior and black screendoor, with rotary latch, deadbolt lock and Window :

S

Acrylic Lighted Grab Handle at Entry Door:

S

Side Swing Aluminum Bus-Style Baggage doors w/ Chrome Handles:

S

Windows - Large Dark Tinted Frameless Windows Throughout:

S

LED Patio lights - (One @ door, One on doorside slide-out):

S

Porch light w/interior switch:

S

Automatic hydraulic leveling jacks:

S

Front, Side and Rear LED Clearance and Marker lighting:

S

Exterior Service Station - Includes: Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves,water heater Bypass valve:

S

Full-coach water filtration system:

S

Exterior Park Cable and Satellite Hookup:

S

7-Way Round Tow Connection:

S

Rear Ladder - Brushed Aluminum Color:

S

Full Length RearGard w/Nameplate:

S

Front & Rear Mudflaps:

S

Rear Underhood Utility Light:

S

Antenna - Unidirectional King Controls Jack Antenna:

S

Basement Storage LED Lighting :

S

Heated Holding Tank Compartment:

S

Basement Pass-Through Storage:

S

King Universal Stationary Satellite:

S

Undercarriage LED Lights:

S

Full Bay SlideTrays - 1st Bay Single 90" :

S

Roof Vent Rain Covers :

S

Exterior LED TV 48" Entertainment Center :

S

Winegard Inmotion Satellite:

O

Full Bay SlideTrays - 2nd Bay Single 90" :

O

Freezer Exterior:

O

Cab Exterior

One Piece Front Fiberglass Cap:

S

One Piece Rear Cap:

S

One Piece Gen acess :

S

Automotive One-Piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:

S

Lower front protective mask:

S

Blindspot Detection:

S

Gen Slide:

S

Cab Interior

Dash Inserts - Diver instrument panels:

S

Black instrument gauges w/electronic information center:

S

Push Button Start:

S

Evens High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers with Delay:

S

Keyless entry w/remotes:

S

Switch for Power/Heated Chrome Mirrors:

S

Switch for Utility Service Compartment:

S

Driver Console w/Lower Storage Bin:

S

Power Locks w/Key FOB Control:

S

Backup Monitor 7" Color:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/WiFi:

S

Driver Chair-Ultra Leather w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair-Ultra Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:

S

Seat Belts - 3 Point Driver & Passenger w/ Adjustable Straps:

S

12V and USB accessory ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest w/ Solid Surface Top:

S

Front Power Roller Shades and Blinds:

S

Driver and Passenger Side Manual Roller Shades and Blinds:

S

Radio Switch Main/Auxiliary Power at Dash:

S

Additional Battery Disconnect Switch at Dash:

S

Momentary Battery Booster Switch - Connecting Chassis and House Batteries:

S

Map Lights:

S

Driver & Passenger Overhead Storage Cabinetry:

S

Air Horns:

S

Automatic Leveling Jacks w/Touchpad Controls:

S

Cabinet Front Overhead Lighting:

S

Hide-A-LoftTM Overhead Bunk w/Mattress Power Drop-Down :

O

Interior

Sofa - 86" Sofa w/Mattress:

-

Sofa - 77" Sofa w/ Drawer:

-

Sofa - 90" x 70" L-Sofa w/Footrest and Jack-knife:

S

Sofa - 72" Sofa w/Mattress:

-

Sofa - 67" Sofa w/ Full Mattress:

-

Sofa - 64" Sofa w/ Drawer:

-

Ottoman- Cube 20" x 20" w/storage (2):

-

Free Standing Dinette w/Credenza:

S

U-Shape Dinette:

-

Electric Fireplace :

S

Interior Flat Soft Touch Vinyl Ceiling:

S

Polished Porcelain Tile Flooring Throughout:

S

Floor Heat for Living Area :

S

Full Extension Drawer Guides Throughout w/ Latches:

S

Hardwood Throughout:

S

Hardwood Ceiling Feature Trim :

S

Hardwood Ceiling Feature Trim w/Lighting :

S

Coordinating Valance w/Lambrequins:

S

Manual Day/Night Roller Shades Front/Driver/Passenger - Black/Black:

S

Manual Day/Night Roller Shades:

S

Safe-T-ViewTM Camera System:

S

110V/USB Ports :

S

Energy Efficient LED 3" Puck Flush Mount Ceiling and Accent Wall Lighting :

S

Washer and Dryer :

S

Accent rope lighting (Tops,Living Slide-out Trims, New Ceiling Trim):

S

Option: Sleeper Sofa:

O

Option: Dual Recliners :

-

Option: Theater Seating :

O

Option: Facing Dinette Booth:

-

Option: L-Shape Dinette:

O

Option: Free Standing Dinette w/Credenza:

-

Interior Entry

Power Entry Step Cover:

S

Solid Surface Entry Step w/LED Accent Lighting:

S

Battery Disconnect at Passenger Cabinet:

S

Metal Interior Grab Handle at Entry:

S

Entry Door Manual Roller Shades and Blinds:

S

Lighted Step Well:

S

Automatic Entrance Steps:

S

Kitchen

Refrigerator: w/Exterior Ice & Water Dispenser, 36-inch Wide Counter Depth French Door - 20 cu. ft. :

S

Induction Electric Cooktop High-output 2 Burner :

S

Stainless Steel Over the Range 1000W Convection Microwave :

S

Dishwasher :

S

Polished Solid Surface Galley Countertop w/Lighting:

S

Glass Tile Backsplash :

S

Shadow Box Glass Tile Backsplash w/Window & Shade:

-

Stainless Steel Framhouse Sink:

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/ pullout sprayer :

S

Adjustable Shelves Throughout Kitchen:

S

Full Extension Drawer Guides w/ Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Pantry :

S

Bedroom or Bunk Area

King Size Dream Easy Serenity Memory FoamMattress w/Adjustable Head (Wolf®):

S

King Size Dream Easy Serenity Memory Foam Mattress:

-

Bunk Beds 28" x 73 w/5" Foam Mattress:

-

Designer Bedspread, Pillow Shams & Pillows:

S

Headboard:

S

Coordinating Fabric Window treatments and Lambrequins:

S

Remote Generator Start Switch:

S

Solid Surface Nightstand Tops:

S

Hardwood Raised Panel Doors:

S

Hardwood Cabinet Wardrobe Doors w/ Mirrors:

S

Cedar Lined Rear Wardrobe Closet:

S

Wire Organizer's in Rear Wardrobe Closet:

-

Dual Rear Wardrobe w/ Hings Rods :

S

Full Rear Wardrobe w/ Hings Rod:

-

Bunk Bed Beadspreads and Privacy Curtains:

-

USB @Nightstands :

S

Individual reading lights bed overhead:

S

Bathroom

Polished Solid Surface Lavy Countertop:

S

Polished Solid Surface Lavy Shelf:

S

Feature Lighting at Lavy Top:

S

Tile Backsplash :

S

Gemstone Undermount Lav Sink:

S

Residential Chrome Double Handle Faucet :

S

Deluxe Hardwood Medicine Cabinet w/ Mirror:

S

Hardwood Raised Panel Doors:

S

Tile Shower:

S

Glass Shower Door - Clear:

S

Shower Skylight:

S

Chrome Shower Head w/On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Toilet Porcelain w/Macerator Foot-flush w/Water Saver:

S

Fantastic® Power Vent w/Wall Switch :

S

Hardwood Window treatment:

S

Manual Night Roller Shade - Black :

S

Accessories: Dual Towel Rings and Toilet Paper :

S

Entertainment

LG 32″ Flat Screen LED TV (Bedroom):

S

LG 43″ Flat Screen LED TV (Living Area):

-

LG 49″ Flat Screen LED TV (Living Area):

S

49" Pop-up TV (Living Area) :

-

55" Pop-up TV (Living Area) (Added for 2019):

-

Bose® Solo 5 TV Sound System:

S

Blu-Ray® Player w/remote:

S

LG 32" Flat Screen LED TV (Front Overhead):

S

Exterior Entertainment 48" TV JBL Soundbar w/Bluetooth® :

S

LED TV/DVD Combo in Bunk Bed Area (2) :

-

LG 43" Flat Screen LED TV (Living Area):

-

Electric & Utilities

Air Conditioner: Roof Mount High Efficiency Ducted 15,000 BTU w/ Chill Grill and Rear has Heat Pump (3) :

S

Aqua Hot® 400 :

S

Firefly Multiplex Wiring:

S

Service: 50-amp, 120-volt Service Panel:

S

Converter: 60 AMP Power Converter - Precision Circuits:

S

Inverter: Single 2800W Pure Sine w/Remote - Magnum:

S

Energy Management System (EMS) w/Soft Start - Precision Circuits:

S

Nuetral Loss Protection:

S

Onan® Generator Quiet Diesel 8KW :

S

Generator Auto Changeover:

S

Auto Gen Start:

S

Deep Cycle House Batteries 6V (6) :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Purification System :

S

Black Water Tank Flush:

S

Gravity Water Fill DS/RS:

S

Cable TV/satellite hookup:

S

Toilet Tank San-T-Flush System:

S

Touch Sensor Tank Monitoring and Battery readout:

S

CO & Smoke Detectors, Fire Extinguisher:

S

Exterior GFCI receptacle in Exterior Storage:

S

Central Vacuum System:

S

Surge Guard Transfer Switch:

S

Power Water Hose Reel:

S

Power Cord Reel:

S

100W Solar Panel:

S

Technology Package (WiFiRanger™Sky4 ProPack w/LTE, WeBoost Cell Booster, Mobile Eye Collision Mitigation, 265 Watt Solar Panel):

S

:
Chassis

Chassis Type:

FREIGHTLINER XCM

GVWR:

36400

GCWR:

46400

Rear Axle GAWR:

24000

Rear Tag GAWR:

-

Front Axle GAWR:

12400

Hitch Rating:

10000

Front Suspension: Neway Air Suspension:

S

Independent Front Air Suspension:

-

Wheel Cut 55 Degree :

S

Rear Suspension: V-Ride Air Suspension:

S

Front Brakes: ADB22X AIR DISC w/ABS:

S

Rear Brakes: 16.5X8.62D ES CAST SPIDER CAM REAR BRAKES/ ABS:

S

15 X 5 Q+ CAM PUSHER/TAG BRAKES:

-

Tuned Sachs Shocks:

S

Power Assisted Steering:

S

Suspended Pedals (FCCC):

S

Push Buttom Start (FCCC):

S

Auto Headlight (FCCC):

S

Electronic Dash (FCCC):

S

Engine Equipment

Cummins® ISL9 380 HP w/1,150 lb-ft Torque:

S

Cummins® ISL9 450 HP w/1,250 lb-ft Torque:

-

Alternator- Delco® Remy 160 AMP:

S

Allison® 3000 MH 6-Speed Automatic Transmission w/Electronic Shift Control:

S

Chassis Battery 72 AMP:

S

Chassis Batteries 6V Heavy Duty (2) :

S

Tires and Wheels

Front Tires :

275/80R 22.5H

Rear Tires:

275/80R 22.5H

Rear Tag Tires:

-

Aluminum Wheels Front/Rear :

S

Valve Stem Extensions:

S

Sizes

Wheelbase:

276"

Exterior Length:

41'4"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

168

Basement Storage (cu.ft.):

157

# of Slideouts:

2

Capacities

Fuel (gal):

100

Fresh Water (gal):

105

Gray Waste Water (gal):

75

Black Waste Water (gal):

50

400 Aqua Hot®:

S

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-BondTM Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Composite Floor and Wall Construction:

S

Heated Fresh Water and Holding Tank Compartments:

S

Freedom Bridge® Chassis Construcion:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Undercoating Full Coverage Heavy Duty :

S

CSA Build:

O

Exterior

Four-Color Premier Full Body Paint:

S

Fiberglass Wheel Well Trims:

S

One piece Molded Fiberglass Domed Roof:

S

Awning - Electric Patio Awning w/ LED lighting and Wind Sensor Retract - Girard:

S

Powered entrance awning w/LED lighting:

S

Slide Out Awning Toppers above all Slideouts - Dometic:

S

Entrance Door - Radius trimmed door w/ black interior and black screendoor, with rotary latch, deadbolt lock and Window :

S

Acrylic Lighted Grab Handle at Entry Door:

S

Side Swing Aluminum Bus-Style Baggage doors w/ Chrome Handles:

S

Windows - Large Dark Tinted Frameless Windows Throughout:

S

LED Patio lights - (One @ door, One on doorside slide-out):

S

Porch light w/interior switch:

S

Automatic hydraulic leveling jacks:

S

Front, Side and Rear LED Clearance and Marker lighting:

S

Exterior Service Station - Includes: Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves,water heater Bypass valve:

S

Full-coach water filtration system:

S

Exterior Park Cable and Satellite Hookup:

S

7-Way Round Tow Connection:

S

Rear Ladder - Brushed Aluminum Color:

S

Full Length RearGard w/Nameplate:

S

Front & Rear Mudflaps:

S

Rear Underhood Utility Light:

S

Antenna - Unidirectional King Controls Jack Antenna:

S

Basement Storage LED Lighting :

S

Heated Holding Tank Compartment:

S

Basement Pass-Through Storage:

S

King Universal Stationary Satellite:

S

Undercarriage LED Lights:

S

Full Bay SlideTrays - 1st Bay Single 90" :

S

Roof Vent Rain Covers :

S

Exterior LED TV 48" Entertainment Center :

S

Winegard Inmotion Satellite:

O

Full Bay SlideTrays - 2nd Bay Single 90" :

O

Freezer Exterior:

O

Cab Exterior

One Piece Front Fiberglass Cap:

S

One Piece Rear Cap:

S

One Piece Gen acess :

S

Automotive One-Piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:

S

Lower front protective mask:

S

Blindspot Detection:

S

Gen Slide:

S

Cab Interior

Dash Inserts - Diver instrument panels:

S

Black instrument gauges w/electronic information center:

S

Push Button Start:

S

Evens High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers with Delay:

S

Keyless entry w/remotes:

S

Switch for Power/Heated Chrome Mirrors:

S

Switch for Utility Service Compartment:

S

Driver Console w/Lower Storage Bin:

S

Power Locks w/Key FOB Control:

S

Backup Monitor 7" Color:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/WiFi:

S

Driver Chair-Ultra Leather w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair-Ultra Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:

S

Seat Belts - 3 Point Driver & Passenger w/ Adjustable Straps:

S

12V and USB accessory ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest w/ Solid Surface Top:

S

Front Power Roller Shades and Blinds:

S

Driver and Passenger Side Manual Roller Shades and Blinds:

S

Radio Switch Main/Auxiliary Power at Dash:

S

Additional Battery Disconnect Switch at Dash:

S

Momentary Battery Booster Switch - Connecting Chassis and House Batteries:

S

Map Lights:

S

Driver & Passenger Overhead Storage Cabinetry:

S

Air Horns:

S

Automatic Leveling Jacks w/Touchpad Controls:

S

Cabinet Front Overhead Lighting:

S

Hide-A-LoftTM Overhead Bunk w/Mattress Power Drop-Down :

O

Interior

Sofa - 86" Sofa w/Mattress:

-

Sofa - 77" Sofa w/ Drawer:

-

Sofa - 90" x 70" L-Sofa w/Footrest and Jack-knife:

-

Sofa - 72" Sofa w/Mattress:

S

Sofa - 67" Sofa w/ Full Mattress:

-

Sofa - 64" Sofa w/ Drawer:

-

Ottoman- Cube 20" x 20" w/storage (2):

-

Free Standing Dinette w/Credenza:

-

U-Shape Dinette:

S

Electric Fireplace :

S

Interior Flat Soft Touch Vinyl Ceiling:

S

Polished Porcelain Tile Flooring Throughout:

S

Floor Heat for Living Area :

S

Full Extension Drawer Guides Throughout w/ Latches:

S

Hardwood Throughout:

S

Hardwood Ceiling Feature Trim :

S

Hardwood Ceiling Feature Trim w/Lighting :

S

Coordinating Valance w/Lambrequins:

S

Manual Day/Night Roller Shades Front/Driver/Passenger - Black/Black:

S

Manual Day/Night Roller Shades:

S

Safe-T-ViewTM Camera System:

S

110V/USB Ports :

S

Energy Efficient LED 3" Puck Flush Mount Ceiling and Accent Wall Lighting :

S

Washer and Dryer :

S

Accent rope lighting (Tops,Living Slide-out Trims, New Ceiling Trim):

S

Option: Sleeper Sofa:

-

Option: Dual Recliners :

-

Option: Theater Seating :

O

Option: Facing Dinette Booth:

-

Option: L-Shape Dinette:

-

Option: Free Standing Dinette w/Credenza:

O

Interior Entry

Power Entry Step Cover:

S

Solid Surface Entry Step w/LED Accent Lighting:

S

Battery Disconnect at Passenger Cabinet:

S

Metal Interior Grab Handle at Entry:

S

Entry Door Manual Roller Shades and Blinds:

S

Lighted Step Well:

S

Automatic Entrance Steps:

S

Kitchen

Refrigerator: w/Exterior Ice & Water Dispenser, 36-inch Wide Counter Depth French Door - 20 cu. ft. :

S

Induction Electric Cooktop High-output 2 Burner :

S

Stainless Steel Over the Range 1000W Convection Microwave :

S

Dishwasher :

S

Polished Solid Surface Galley Countertop w/Lighting:

S

Glass Tile Backsplash :

S

Shadow Box Glass Tile Backsplash w/Window & Shade:

-

Stainless Steel Framhouse Sink:

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/ pullout sprayer :

S

Adjustable Shelves Throughout Kitchen:

S

Full Extension Drawer Guides w/ Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Pantry :

S

Bedroom or Bunk Area

King Size Dream Easy Serenity Memory FoamMattress w/Adjustable Head (Wolf®):

-

King Size Dream Easy Serenity Memory Foam Mattress:

S

Bunk Beds 28" x 73 w/5" Foam Mattress:

S

Designer Bedspread, Pillow Shams & Pillows:

S

Headboard:

S

Coordinating Fabric Window treatments and Lambrequins:

S

Remote Generator Start Switch:

S

Solid Surface Nightstand Tops:

S

Hardwood Raised Panel Doors:

S

Hardwood Cabinet Wardrobe Doors w/ Mirrors:

S

Cedar Lined Rear Wardrobe Closet:

S

Wire Organizer's in Rear Wardrobe Closet:

S

Dual Rear Wardrobe w/ Hings Rods :

-

Full Rear Wardrobe w/ Hings Rod:

-

Bunk Bed Beadspreads and Privacy Curtains:

S

USB @Nightstands :

S

Individual reading lights bed overhead:

S

Bathroom

Polished Solid Surface Lavy Countertop:

S

Polished Solid Surface Lavy Shelf:

-

Feature Lighting at Lavy Top:

S

Tile Backsplash :

S

Gemstone Undermount Lav Sink:

S

Residential Chrome Double Handle Faucet :

S

Deluxe Hardwood Medicine Cabinet w/ Mirror:

S

Hardwood Raised Panel Doors:

S

Tile Shower:

S

Glass Shower Door - Clear:

S

Shower Skylight:

S

Chrome Shower Head w/On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Toilet Porcelain w/Macerator Foot-flush w/Water Saver:

S

Fantastic® Power Vent w/Wall Switch :

S

Hardwood Window treatment:

S

Manual Night Roller Shade - Black :

S

Accessories: Dual Towel Rings and Toilet Paper :

S

Entertainment

LG 32″ Flat Screen LED TV (Bedroom):

S

LG 43″ Flat Screen LED TV (Living Area):

S

LG 49″ Flat Screen LED TV (Living Area):

-

49" Pop-up TV (Living Area) :

-

55" Pop-up TV (Living Area) (Added for 2019):

-

Bose® Solo 5 TV Sound System:

S

Blu-Ray® Player w/remote:

S

LG 32" Flat Screen LED TV (Front Overhead):

S

Exterior Entertainment 48" TV JBL Soundbar w/Bluetooth® :

S

LED TV/DVD Combo in Bunk Bed Area (2) :

S

LG 43" Flat Screen LED TV (Living Area):

-

Electric & Utilities

Air Conditioner: Roof Mount High Efficiency Ducted 15,000 BTU w/ Chill Grill and Rear has Heat Pump (3) :

S

Aqua Hot® 400 :

S

Firefly Multiplex Wiring:

S

Service: 50-amp, 120-volt Service Panel:

S

Converter: 60 AMP Power Converter - Precision Circuits:

S

Inverter: Single 2800W Pure Sine w/Remote - Magnum:

S

Energy Management System (EMS) w/Soft Start - Precision Circuits:

S

Nuetral Loss Protection:

S

Onan® Generator Quiet Diesel 8KW :

S

Generator Auto Changeover:

S

Auto Gen Start:

S

Deep Cycle House Batteries 6V (6) :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Purification System :

S

Black Water Tank Flush:

S

Gravity Water Fill DS/RS:

S

Cable TV/satellite hookup:

S

Toilet Tank San-T-Flush System:

S

Touch Sensor Tank Monitoring and Battery readout:

S

CO & Smoke Detectors, Fire Extinguisher:

S

Exterior GFCI receptacle in Exterior Storage:

S

Central Vacuum System:

S

Surge Guard Transfer Switch:

S

Power Water Hose Reel:

S

Power Cord Reel:

S

100W Solar Panel:

S

Technology Package (WiFiRanger™Sky4 ProPack w/LTE, WeBoost Cell Booster, Mobile Eye Collision Mitigation, 265 Watt Solar Panel):

S

:
Chassis

Chassis Type:

FREIGHTLINER XCM

GVWR:

36400

GCWR:

46400

Rear Axle GAWR:

24000

Rear Tag GAWR:

-

Front Axle GAWR:

12400

Hitch Rating:

10000

Front Suspension: Neway Air Suspension:

S

Independent Front Air Suspension:

-

Wheel Cut 55 Degree :

S

Rear Suspension: V-Ride Air Suspension:

S

Front Brakes: ADB22X AIR DISC w/ABS:

S

Rear Brakes: 16.5X8.62D ES CAST SPIDER CAM REAR BRAKES/ ABS:

S

15 X 5 Q+ CAM PUSHER/TAG BRAKES:

-

Tuned Sachs Shocks:

S

Power Assisted Steering:

S

Suspended Pedals (FCCC):

S

Push Buttom Start (FCCC):

S

Auto Headlight (FCCC):

S

Electronic Dash (FCCC):

S

Engine Equipment

Cummins® ISL9 380 HP w/1,150 lb-ft Torque:

S

Cummins® ISL9 450 HP w/1,250 lb-ft Torque:

-

Alternator- Delco® Remy 160 AMP:

S

Allison® 3000 MH 6-Speed Automatic Transmission w/Electronic Shift Control:

S

Chassis Battery 72 AMP:

S

Chassis Batteries 6V Heavy Duty (2) :

S

Tires and Wheels

Front Tires :

275/80R 22.5H

Rear Tires:

275/80R 22.5H

Rear Tag Tires:

-

Aluminum Wheels Front/Rear :

S

Valve Stem Extensions:

S

Sizes

Wheelbase:

263

Exterior Length:

40'1"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

133

Basement Storage (cu.ft.):

142

# of Slideouts:

3

Capacities

Fuel (gal):

100

Fresh Water (gal):

105

Gray Waste Water (gal):

75

Black Waste Water (gal):

50

400 Aqua Hot®:

S

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-BondTM Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Composite Floor and Wall Construction:

S

Heated Fresh Water and Holding Tank Compartments:

S

Freedom Bridge® Chassis Construcion:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Undercoating Full Coverage Heavy Duty :

S

CSA Build:

O

Exterior

Four-Color Premier Full Body Paint:

S

Fiberglass Wheel Well Trims:

S

One piece Molded Fiberglass Domed Roof:

S

Awning - Electric Patio Awning w/ LED lighting and Wind Sensor Retract - Girard:

S

Powered entrance awning w/LED lighting:

S

Slide Out Awning Toppers above all Slideouts - Dometic:

S

Entrance Door - Radius trimmed door w/ black interior and black screendoor, with rotary latch, deadbolt lock and Window :

S

Acrylic Lighted Grab Handle at Entry Door:

S

Side Swing Aluminum Bus-Style Baggage doors w/ Chrome Handles:

S

Windows - Large Dark Tinted Frameless Windows Throughout:

S

LED Patio lights - (One @ door, One on doorside slide-out):

S

Porch light w/interior switch:

S

Automatic hydraulic leveling jacks:

S

Front, Side and Rear LED Clearance and Marker lighting:

S

Exterior Service Station - Includes: Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves,water heater Bypass valve:

S

Full-coach water filtration system:

S

Exterior Park Cable and Satellite Hookup:

S

7-Way Round Tow Connection:

S

Rear Ladder - Brushed Aluminum Color:

S

Full Length RearGard w/Nameplate:

S

Front & Rear Mudflaps:

S

Rear Underhood Utility Light:

S

Antenna - Unidirectional King Controls Jack Antenna:

S

Basement Storage LED Lighting :

S

Heated Holding Tank Compartment:

S

Basement Pass-Through Storage:

S

King Universal Stationary Satellite:

S

Undercarriage LED Lights:

S

Full Bay SlideTrays - 1st Bay Single 90" :

S

Roof Vent Rain Covers :

S

Exterior LED TV 48" Entertainment Center :

S

Winegard Inmotion Satellite:

O

Full Bay SlideTrays - 2nd Bay Single 90" :

O

Freezer Exterior:

O

Cab Exterior

One Piece Front Fiberglass Cap:

S

One Piece Rear Cap:

S

One Piece Gen acess :

S

Automotive One-Piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:

S

Lower front protective mask:

S

Blindspot Detection:

S

Gen Slide:

S

Cab Interior

Dash Inserts - Diver instrument panels:

S

Black instrument gauges w/electronic information center:

S

Push Button Start:

S

Evens High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers with Delay:

S

Keyless entry w/remotes:

S

Switch for Power/Heated Chrome Mirrors:

S

Switch for Utility Service Compartment:

S

Driver Console w/Lower Storage Bin:

S

Power Locks w/Key FOB Control:

S

Backup Monitor 7" Color:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/WiFi:

S

Driver Chair-Ultra Leather w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair-Ultra Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:

S

Seat Belts - 3 Point Driver & Passenger w/ Adjustable Straps:

S

12V and USB accessory ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest w/ Solid Surface Top:

S

Front Power Roller Shades and Blinds:

S

Driver and Passenger Side Manual Roller Shades and Blinds:

S

Radio Switch Main/Auxiliary Power at Dash:

S

Additional Battery Disconnect Switch at Dash:

S

Momentary Battery Booster Switch - Connecting Chassis and House Batteries:

S

Map Lights:

S

Driver & Passenger Overhead Storage Cabinetry:

S

Air Horns:

S

Automatic Leveling Jacks w/Touchpad Controls:

S

Cabinet Front Overhead Lighting:

S

Hide-A-LoftTM Overhead Bunk w/Mattress Power Drop-Down :

O

Interior

Sofa - 86" Sofa w/Mattress:

-

Sofa - 77" Sofa w/ Drawer:

-

Sofa - 90" x 70" L-Sofa w/Footrest and Jack-knife:

-

Sofa - 72" Sofa w/Mattress:

-

Sofa - 67" Sofa w/ Full Mattress:

S

Sofa - 64" Sofa w/ Drawer:

S

Ottoman- Cube 20" x 20" w/storage (2):

-

Free Standing Dinette w/Credenza:

S

U-Shape Dinette:

-

Electric Fireplace :

S

Interior Flat Soft Touch Vinyl Ceiling:

S

Polished Porcelain Tile Flooring Throughout:

S

Floor Heat for Living Area :

S

Full Extension Drawer Guides Throughout w/ Latches:

S

Hardwood Throughout:

S

Hardwood Ceiling Feature Trim :

S

Hardwood Ceiling Feature Trim w/Lighting :

S

Coordinating Valance w/Lambrequins:

S

Manual Day/Night Roller Shades Front/Driver/Passenger - Black/Black:

S

Manual Day/Night Roller Shades:

S

Safe-T-ViewTM Camera System:

S

110V/USB Ports :

S

Energy Efficient LED 3" Puck Flush Mount Ceiling and Accent Wall Lighting :

S

Washer and Dryer :

S

Accent rope lighting (Tops,Living Slide-out Trims, New Ceiling Trim):

S

Option: Sleeper Sofa:

-

Option: Dual Recliners :

-

Option: Theater Seating :

O

Option: Facing Dinette Booth:

O

Option: L-Shape Dinette:

-

Option: Free Standing Dinette w/Credenza:

-

Interior Entry

Power Entry Step Cover:

S

Solid Surface Entry Step w/LED Accent Lighting:

S

Battery Disconnect at Passenger Cabinet:

S

Metal Interior Grab Handle at Entry:

S

Entry Door Manual Roller Shades and Blinds:

S

Lighted Step Well:

S

Automatic Entrance Steps:

S

Kitchen

Refrigerator: w/Exterior Ice & Water Dispenser, 36-inch Wide Counter Depth French Door - 20 cu. ft. :

S

Induction Electric Cooktop High-output 2 Burner :

S

Stainless Steel Over the Range 1000W Convection Microwave :

S

Dishwasher :

S

Polished Solid Surface Galley Countertop w/Lighting:

S

Glass Tile Backsplash :

-

Shadow Box Glass Tile Backsplash w/Window & Shade:

S

Stainless Steel Framhouse Sink:

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/ pullout sprayer :

S

Adjustable Shelves Throughout Kitchen:

S

Full Extension Drawer Guides w/ Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Pantry :

S

Bedroom or Bunk Area

King Size Dream Easy Serenity Memory FoamMattress w/Adjustable Head (Wolf®):

S

King Size Dream Easy Serenity Memory Foam Mattress:

-

Bunk Beds 28" x 73 w/5" Foam Mattress:

-

Designer Bedspread, Pillow Shams & Pillows:

S

Headboard:

S

Coordinating Fabric Window treatments and Lambrequins:

S

Remote Generator Start Switch:

S

Solid Surface Nightstand Tops:

S

Hardwood Raised Panel Doors:

S

Hardwood Cabinet Wardrobe Doors w/ Mirrors:

S

Cedar Lined Rear Wardrobe Closet:

S

Wire Organizer's in Rear Wardrobe Closet:

-

Dual Rear Wardrobe w/ Hings Rods :

S

Full Rear Wardrobe w/ Hings Rod:

-

Bunk Bed Beadspreads and Privacy Curtains:

-

USB @Nightstands :

S

Individual reading lights bed overhead:

S

Bathroom

Polished Solid Surface Lavy Countertop:

S

Polished Solid Surface Lavy Shelf:

-

Feature Lighting at Lavy Top:

S

Tile Backsplash :

S

Gemstone Undermount Lav Sink:

S

Residential Chrome Double Handle Faucet :

S

Deluxe Hardwood Medicine Cabinet w/ Mirror:

S

Hardwood Raised Panel Doors:

S

Tile Shower:

S

Glass Shower Door - Clear:

S

Shower Skylight:

S

Chrome Shower Head w/On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Toilet Porcelain w/Macerator Foot-flush w/Water Saver:

S

Fantastic® Power Vent w/Wall Switch :

S

Hardwood Window treatment:

S

Manual Night Roller Shade - Black :

S

Accessories: Dual Towel Rings and Toilet Paper :

S

Entertainment

LG 32″ Flat Screen LED TV (Bedroom):

S

LG 43″ Flat Screen LED TV (Living Area):

-

LG 49″ Flat Screen LED TV (Living Area):

S

49" Pop-up TV (Living Area) :

S

55" Pop-up TV (Living Area) (Added for 2019):

-

Bose® Solo 5 TV Sound System:

S

Blu-Ray® Player w/remote:

S

LG 32" Flat Screen LED TV (Front Overhead):

S

Exterior Entertainment 48" TV JBL Soundbar w/Bluetooth® :

S

LED TV/DVD Combo in Bunk Bed Area (2) :

-

LG 43" Flat Screen LED TV (Living Area):

O

Electric & Utilities

Air Conditioner: Roof Mount High Efficiency Ducted 15,000 BTU w/ Chill Grill and Rear has Heat Pump (3) :

S

Aqua Hot® 400 :

S

Firefly Multiplex Wiring:

S

Service: 50-amp, 120-volt Service Panel:

S

Converter: 60 AMP Power Converter - Precision Circuits:

S

Inverter: Single 2800W Pure Sine w/Remote - Magnum:

S

Energy Management System (EMS) w/Soft Start - Precision Circuits:

S

Nuetral Loss Protection:

S

Onan® Generator Quiet Diesel 8KW :

S

Generator Auto Changeover:

S

Auto Gen Start:

S

Deep Cycle House Batteries 6V (6) :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Purification System :

S

Black Water Tank Flush:

S

Gravity Water Fill DS/RS:

S

Cable TV/satellite hookup:

S

Toilet Tank San-T-Flush System:

S

Touch Sensor Tank Monitoring and Battery readout:

S

CO & Smoke Detectors, Fire Extinguisher:

S

Exterior GFCI receptacle in Exterior Storage:

S

Central Vacuum System:

S

Surge Guard Transfer Switch:

S

Power Water Hose Reel:

S

Power Cord Reel:

S

100W Solar Panel:

S

Technology Package (WiFiRanger™Sky4 ProPack w/LTE, WeBoost Cell Booster, Mobile Eye Collision Mitigation, 265 Watt Solar Panel):

S

:
Chassis

Chassis Type:

FREIGHTLINER XCM

GVWR:

43200

GCWR:

52200

Rear Axle GAWR:

20000

Rear Tag GAWR:

10000

Front Axle GAWR:

13200

Hitch Rating:

15000

Front Suspension: Neway Air Suspension:

-

Independent Front Air Suspension:

S

Wheel Cut 55 Degree :

S

Rear Suspension: V-Ride Air Suspension:

S

Front Brakes: ADB22X AIR DISC w/ABS:

S

Rear Brakes: 16.5X8.62D ES CAST SPIDER CAM REAR BRAKES/ ABS:

S

15 X 5 Q+ CAM PUSHER/TAG BRAKES:

S

Tuned Sachs Shocks:

S

Power Assisted Steering:

S

Suspended Pedals (FCCC):

S

Push Buttom Start (FCCC):

S

Auto Headlight (FCCC):

S

Electronic Dash (FCCC):

S

Engine Equipment

Cummins® ISL9 380 HP w/1,150 lb-ft Torque:

-

Cummins® ISL9 450 HP w/1,250 lb-ft Torque:

S

Alternator- Delco® Remy 160 AMP:

S

Allison® 3000 MH 6-Speed Automatic Transmission w/Electronic Shift Control:

S

Chassis Battery 72 AMP:

S

Chassis Batteries 6V Heavy Duty (2) :

S

Tires and Wheels

Front Tires :

275/80R 22.5H

Rear Tires:

275/80R 22.5H

Rear Tag Tires:

275/80R 22.5H

Aluminum Wheels Front/Rear :

S

Valve Stem Extensions:

S

Sizes

Wheelbase:

309

Exterior Length:

44

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

180

Basement Storage (cu.ft.):

157

# of Slideouts:

4

Capacities

Fuel (gal):

100

Fresh Water (gal):

105

Gray Waste Water (gal):

75

Black Waste Water (gal):

50

400 Aqua Hot®:

S

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-BondTM Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Composite Floor and Wall Construction:

S

Heated Fresh Water and Holding Tank Compartments:

S

Freedom Bridge® Chassis Construcion:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Undercoating Full Coverage Heavy Duty :

S

CSA Build:

O

Exterior

Four-Color Premier Full Body Paint:

S

Fiberglass Wheel Well Trims:

S

One piece Molded Fiberglass Domed Roof:

S

Awning - Electric Patio Awning w/ LED lighting and Wind Sensor Retract - Girard:

S

Powered entrance awning w/LED lighting:

S

Slide Out Awning Toppers above all Slideouts - Dometic:

S

Entrance Door - Radius trimmed door w/ black interior and black screendoor, with rotary latch, deadbolt lock and Window :

S

Acrylic Lighted Grab Handle at Entry Door:

S

Side Swing Aluminum Bus-Style Baggage doors w/ Chrome Handles:

S

Windows - Large Dark Tinted Frameless Windows Throughout:

S

LED Patio lights - (One @ door, One on doorside slide-out):

S

Porch light w/interior switch:

S

Automatic hydraulic leveling jacks:

S

Front, Side and Rear LED Clearance and Marker lighting:

S

Exterior Service Station - Includes: Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves,water heater Bypass valve:

S

Full-coach water filtration system:

S

Exterior Park Cable and Satellite Hookup:

S

7-Way Round Tow Connection:

S

Rear Ladder - Brushed Aluminum Color:

S

Full Length RearGard w/Nameplate:

S

Front & Rear Mudflaps:

S

Rear Underhood Utility Light:

S

Antenna - Unidirectional King Controls Jack Antenna:

S

Basement Storage LED Lighting :

S

Heated Holding Tank Compartment:

S

Basement Pass-Through Storage:

S

King Universal Stationary Satellite:

S

Undercarriage LED Lights:

S

Full Bay SlideTrays - 1st Bay Single 90" :

S

Roof Vent Rain Covers :

S

Exterior LED TV 48" Entertainment Center :

S

Winegard Inmotion Satellite:

O

Full Bay SlideTrays - 2nd Bay Single 90" :

O

Freezer Exterior:

O

Cab Exterior

One Piece Front Fiberglass Cap:

S

One Piece Rear Cap:

S

One Piece Gen acess :

S

Automotive One-Piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:

S

Lower front protective mask:

S

Blindspot Detection:

S

Gen Slide:

S

Cab Interior

Dash Inserts - Diver instrument panels:

S

Black instrument gauges w/electronic information center:

S

Push Button Start:

S

Evens High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers with Delay:

S

Keyless entry w/remotes:

S

Switch for Power/Heated Chrome Mirrors:

S

Switch for Utility Service Compartment:

S

Driver Console w/Lower Storage Bin:

S

Power Locks w/Key FOB Control:

S

Backup Monitor 7" Color:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/WiFi:

S

Driver Chair-Ultra Leather w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair-Ultra Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:

S

Seat Belts - 3 Point Driver & Passenger w/ Adjustable Straps:

S

12V and USB accessory ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest w/ Solid Surface Top:

S

Front Power Roller Shades and Blinds:

S

Driver and Passenger Side Manual Roller Shades and Blinds:

S

Radio Switch Main/Auxiliary Power at Dash:

S

Additional Battery Disconnect Switch at Dash:

S

Momentary Battery Booster Switch - Connecting Chassis and House Batteries:

S

Map Lights:

S

Driver & Passenger Overhead Storage Cabinetry:

S

Air Horns:

S

Automatic Leveling Jacks w/Touchpad Controls:

S

Cabinet Front Overhead Lighting:

S

Hide-A-LoftTM Overhead Bunk w/Mattress Power Drop-Down :

O

Interior

Sofa - 86" Sofa w/Mattress:

S

Sofa - 77" Sofa w/ Drawer:

S

Sofa - 90" x 70" L-Sofa w/Footrest and Jack-knife:

-

Sofa - 72" Sofa w/Mattress:

-

Sofa - 67" Sofa w/ Full Mattress:

-

Sofa - 64" Sofa w/ Drawer:

-

Ottoman- Cube 20" x 20" w/storage (2):

S

Free Standing Dinette w/Credenza:

-

U-Shape Dinette:

S

Electric Fireplace :

-

Interior Flat Soft Touch Vinyl Ceiling:

S

Polished Porcelain Tile Flooring Throughout:

S

Floor Heat for Living Area :

S

Full Extension Drawer Guides Throughout w/ Latches:

S

Hardwood Throughout:

S

Hardwood Ceiling Feature Trim :

-

Hardwood Ceiling Feature Trim w/Lighting :

S

Coordinating Valance w/Lambrequins:

S

Manual Day/Night Roller Shades Front/Driver/Passenger - Black/Black:

S

Manual Day/Night Roller Shades:

S

Safe-T-ViewTM Camera System:

S

110V/USB Ports :

S

Energy Efficient LED 3" Puck Flush Mount Ceiling and Accent Wall Lighting :

S

Washer and Dryer :

S

Accent rope lighting (Tops,Living Slide-out Trims, New Ceiling Trim):

S

Option: Sleeper Sofa:

-

Option: Dual Recliners :

O

Option: Theater Seating :

O

Option: Facing Dinette Booth:

O

Option: L-Shape Dinette:

-

Option: Free Standing Dinette w/Credenza:

O

Interior Entry

Power Entry Step Cover:

S

Solid Surface Entry Step w/LED Accent Lighting:

S

Battery Disconnect at Passenger Cabinet:

S

Metal Interior Grab Handle at Entry:

S

Entry Door Manual Roller Shades and Blinds:

S

Lighted Step Well:

S

Automatic Entrance Steps:

S

Kitchen

Refrigerator: w/Exterior Ice & Water Dispenser, 36-inch Wide Counter Depth French Door - 20 cu. ft. :

S

Induction Electric Cooktop High-output 2 Burner :

S

Stainless Steel Over the Range 1000W Convection Microwave :

S

Dishwasher :

S

Polished Solid Surface Galley Countertop w/Lighting:

S

Glass Tile Backsplash :

-

Shadow Box Glass Tile Backsplash w/Window & Shade:

S

Stainless Steel Framhouse Sink:

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/ pullout sprayer :

S

Adjustable Shelves Throughout Kitchen:

S

Full Extension Drawer Guides w/ Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Pantry :

S

Bedroom or Bunk Area

King Size Dream Easy Serenity Memory FoamMattress w/Adjustable Head (Wolf®):

S

King Size Dream Easy Serenity Memory Foam Mattress:

-

Bunk Beds 28" x 73 w/5" Foam Mattress:

S

Designer Bedspread, Pillow Shams & Pillows:

S

Headboard:

S

Coordinating Fabric Window treatments and Lambrequins:

S

Remote Generator Start Switch:

S

Solid Surface Nightstand Tops:

S

Hardwood Raised Panel Doors:

S

Hardwood Cabinet Wardrobe Doors w/ Mirrors:

S

Cedar Lined Rear Wardrobe Closet:

S

Wire Organizer's in Rear Wardrobe Closet:

-

Dual Rear Wardrobe w/ Hings Rods :

-

Full Rear Wardrobe w/ Hings Rod:

S

Bunk Bed Beadspreads and Privacy Curtains:

-

USB @Nightstands :

S

Individual reading lights bed overhead:

S

Bathroom

Polished Solid Surface Lavy Countertop:

S

Polished Solid Surface Lavy Shelf:

S

Feature Lighting at Lavy Top:

S

Tile Backsplash :

S

Gemstone Undermount Lav Sink:

S

Residential Chrome Double Handle Faucet :

S

Deluxe Hardwood Medicine Cabinet w/ Mirror:

S

Hardwood Raised Panel Doors:

S

Tile Shower:

S

Glass Shower Door - Clear:

S

Shower Skylight:

S

Chrome Shower Head w/On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Toilet Porcelain w/Macerator Foot-flush w/Water Saver:

S

Fantastic® Power Vent w/Wall Switch :

S

Hardwood Window treatment:

S

Manual Night Roller Shade - Black :

S

Accessories: Dual Towel Rings and Toilet Paper :

S

Entertainment

LG 32″ Flat Screen LED TV (Bedroom):

S

LG 43″ Flat Screen LED TV (Living Area):

-

LG 49″ Flat Screen LED TV (Living Area):

-

49" Pop-up TV (Living Area) :

-

55" Pop-up TV (Living Area) (Added for 2019):

S

Bose® Solo 5 TV Sound System:

S

Blu-Ray® Player w/remote:

S

LG 32" Flat Screen LED TV (Front Overhead):

S

Exterior Entertainment 48" TV JBL Soundbar w/Bluetooth® :

S

LED TV/DVD Combo in Bunk Bed Area (2) :

-

LG 43" Flat Screen LED TV (Living Area):

-

Electric & Utilities

Air Conditioner: Roof Mount High Efficiency Ducted 15,000 BTU w/ Chill Grill and Rear has Heat Pump (3) :

S

Aqua Hot® 400 :

S

Firefly Multiplex Wiring:

S

Service: 50-amp, 120-volt Service Panel:

S

Converter: 60 AMP Power Converter - Precision Circuits:

S

Inverter: Single 2800W Pure Sine w/Remote - Magnum:

S

Energy Management System (EMS) w/Soft Start - Precision Circuits:

S

Nuetral Loss Protection:

S

Onan® Generator Quiet Diesel 8KW :

S

Generator Auto Changeover:

S

Auto Gen Start:

S

Deep Cycle House Batteries 6V (6) :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Purification System :

S

Black Water Tank Flush:

S

Gravity Water Fill DS/RS:

S

Cable TV/satellite hookup:

S

Toilet Tank San-T-Flush System:

S

Touch Sensor Tank Monitoring and Battery readout:

S

CO & Smoke Detectors, Fire Extinguisher:

S

Exterior GFCI receptacle in Exterior Storage:

S

Central Vacuum System:

S

Surge Guard Transfer Switch:

S

Power Water Hose Reel:

S

Power Cord Reel:

S

100W Solar Panel:

S

Technology Package (WiFiRanger™Sky4 ProPack w/LTE, WeBoost Cell Booster, Mobile Eye Collision Mitigation, 265 Watt Solar Panel):

S

:
Chassis

Chassis Type:

FREIGHTLINER XCM

GVWR:

43200

GCWR:

52200

Rear Axle GAWR:

20000

Rear Tag GAWR:

10000

Front Axle GAWR:

13200

Hitch Rating:

15000

Front Suspension: Neway Air Suspension:

-

Independent Front Air Suspension:

S

Wheel Cut 55 Degree :

S

Rear Suspension: V-Ride Air Suspension:

S

Front Brakes: ADB22X AIR DISC w/ABS:

S

Rear Brakes: 16.5X8.62D ES CAST SPIDER CAM REAR BRAKES/ ABS:

S

15 X 5 Q+ CAM PUSHER/TAG BRAKES:

S

Tuned Sachs Shocks:

S

Power Assisted Steering:

S

Suspended Pedals (FCCC):

S

Push Buttom Start (FCCC):

S

Auto Headlight (FCCC):

S

Electronic Dash (FCCC):

S

Engine Equipment

Cummins® ISL9 380 HP w/1,150 lb-ft Torque:

-

Cummins® ISL9 450 HP w/1,250 lb-ft Torque:

S

Alternator- Delco® Remy 160 AMP:

S

Allison® 3000 MH 6-Speed Automatic Transmission w/Electronic Shift Control:

S

Chassis Battery 72 AMP:

S

Chassis Batteries 6V Heavy Duty (2) :

S

Tires and Wheels

Front Tires :

275/80R 22.5H

Rear Tires:

275/80R 22.5H

Rear Tag Tires:

275/80R 22.5H

Aluminum Wheels Front/Rear :

S

Valve Stem Extensions:

S

Sizes

Wheelbase:

309

Exterior Length:

44

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

192

Basement Storage (cu.ft.):

157

# of Slideouts:

4

Capacities

Fuel (gal):

100

Fresh Water (gal):

105

Gray Waste Water (gal):

75

Black Waste Water (gal):

50

400 Aqua Hot®:

S

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-BondTM Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Composite Floor and Wall Construction:

S

Heated Fresh Water and Holding Tank Compartments:

S

Freedom Bridge® Chassis Construcion:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Undercoating Full Coverage Heavy Duty :

S

CSA Build:

O

Exterior

Four-Color Premier Full Body Paint:

S

Fiberglass Wheel Well Trims:

S

One piece Molded Fiberglass Domed Roof:

S

Awning - Electric Patio Awning w/ LED lighting and Wind Sensor Retract - Girard:

S

Powered entrance awning w/LED lighting:

S

Slide Out Awning Toppers above all Slideouts - Dometic:

S

Entrance Door - Radius trimmed door w/ black interior and black screendoor, with rotary latch, deadbolt lock and Window :

S

Acrylic Lighted Grab Handle at Entry Door:

S

Side Swing Aluminum Bus-Style Baggage doors w/ Chrome Handles:

S

Windows - Large Dark Tinted Frameless Windows Throughout:

S

LED Patio lights - (One @ door, One on doorside slide-out):

S

Porch light w/interior switch:

S

Automatic hydraulic leveling jacks:

S

Front, Side and Rear LED Clearance and Marker lighting:

S

Exterior Service Station - Includes: Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves,water heater Bypass valve:

S

Full-coach water filtration system:

S

Exterior Park Cable and Satellite Hookup:

S

7-Way Round Tow Connection:

S

Rear Ladder - Brushed Aluminum Color:

S

Full Length RearGard w/Nameplate:

S

Front & Rear Mudflaps:

S

Rear Underhood Utility Light:

S

Antenna - Unidirectional King Controls Jack Antenna:

S

Basement Storage LED Lighting :

S

Heated Holding Tank Compartment:

S

Basement Pass-Through Storage:

S

King Universal Stationary Satellite:

S

Undercarriage LED Lights:

S

Full Bay SlideTrays - 1st Bay Single 90" :

S

Roof Vent Rain Covers :

S

Exterior LED TV 48" Entertainment Center :

S

Winegard Inmotion Satellite:

O

Full Bay SlideTrays - 2nd Bay Single 90" :

O

Freezer Exterior:

O

Cab Exterior

One Piece Front Fiberglass Cap:

S

One Piece Rear Cap:

S

One Piece Gen acess :

S

Automotive One-Piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:

S

Lower front protective mask:

S

Blindspot Detection:

S

Gen Slide:

S

Cab Interior

Dash Inserts - Diver instrument panels:

S

Black instrument gauges w/electronic information center:

S

Push Button Start:

S

Evens High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers with Delay:

S

Keyless entry w/remotes:

S

Switch for Power/Heated Chrome Mirrors:

S

Switch for Utility Service Compartment:

S

Driver Console w/Lower Storage Bin:

S

Power Locks w/Key FOB Control:

S

Backup Monitor 7" Color:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth®/Navigation/APP Store/WiFi:

S

Driver Chair-Ultra Leather w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair-Ultra Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:

S

Seat Belts - 3 Point Driver & Passenger w/ Adjustable Straps:

S

12V and USB accessory ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest w/ Solid Surface Top:

S

Front Power Roller Shades and Blinds:

S

Driver and Passenger Side Manual Roller Shades and Blinds:

S

Radio Switch Main/Auxiliary Power at Dash:

S

Additional Battery Disconnect Switch at Dash:

S

Momentary Battery Booster Switch - Connecting Chassis and House Batteries:

S

Map Lights:

S

Driver & Passenger Overhead Storage Cabinetry:

S

Air Horns:

S

Automatic Leveling Jacks w/Touchpad Controls:

S

Cabinet Front Overhead Lighting:

S

Hide-A-LoftTM Overhead Bunk w/Mattress Power Drop-Down :

O

Interior

Sofa - 86" Sofa w/Mattress:

S

Sofa - 77" Sofa w/ Drawer:

S

Sofa - 90" x 70" L-Sofa w/Footrest and Jack-knife:

-

Sofa - 72" Sofa w/Mattress:

-

Sofa - 67" Sofa w/ Full Mattress:

-

Sofa - 64" Sofa w/ Drawer:

-

Ottoman- Cube 20" x 20" w/storage (2):

S

Free Standing Dinette w/Credenza:

-

U-Shape Dinette:

S

Electric Fireplace :

-

Interior Flat Soft Touch Vinyl Ceiling:

S

Polished Porcelain Tile Flooring Throughout:

S

Floor Heat for Living Area :

S

Full Extension Drawer Guides Throughout w/ Latches:

S

Hardwood Throughout:

S

Hardwood Ceiling Feature Trim :

-

Hardwood Ceiling Feature Trim w/Lighting :

S

Coordinating Valance w/Lambrequins:

S

Manual Day/Night Roller Shades Front/Driver/Passenger - Black/Black:

S

Manual Day/Night Roller Shades:

S

Safe-T-ViewTM Camera System:

S

110V/USB Ports :

S

Energy Efficient LED 3" Puck Flush Mount Ceiling and Accent Wall Lighting :

S

Washer and Dryer :

S

Accent rope lighting (Tops,Living Slide-out Trims, New Ceiling Trim):

S

Option: Sleeper Sofa:

-

Option: Dual Recliners :

O

Option: Theater Seating :

O

Option: Facing Dinette Booth:

O

Option: L-Shape Dinette:

-

Option: Free Standing Dinette w/Credenza:

O

Interior Entry

Power Entry Step Cover:

S

Solid Surface Entry Step w/LED Accent Lighting:

S

Battery Disconnect at Passenger Cabinet:

S

Metal Interior Grab Handle at Entry:

S

Entry Door Manual Roller Shades and Blinds:

S

Lighted Step Well:

S

Automatic Entrance Steps:

S

Kitchen

Refrigerator: w/Exterior Ice & Water Dispenser, 36-inch Wide Counter Depth French Door - 20 cu. ft. :

S

Induction Electric Cooktop High-output 2 Burner :

S

Stainless Steel Over the Range 1000W Convection Microwave :

S

Dishwasher :

S

Polished Solid Surface Galley Countertop w/Lighting:

S

Glass Tile Backsplash :

-

Shadow Box Glass Tile Backsplash w/Window & Shade:

S

Stainless Steel Framhouse Sink:

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/ pullout sprayer :

S

Adjustable Shelves Throughout Kitchen:

S

Full Extension Drawer Guides w/ Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Pantry :

S

Bedroom or Bunk Area

King Size Dream Easy Serenity Memory FoamMattress w/Adjustable Head (Wolf®):

S

King Size Dream Easy Serenity Memory Foam Mattress:

-

Bunk Beds 28" x 73 w/5" Foam Mattress:

-

Designer Bedspread, Pillow Shams & Pillows:

S

Headboard:

S

Coordinating Fabric Window treatments and Lambrequins:

S

Remote Generator Start Switch:

S

Solid Surface Nightstand Tops:

S

Hardwood Raised Panel Doors:

S

Hardwood Cabinet Wardrobe Doors w/ Mirrors:

S

Cedar Lined Rear Wardrobe Closet:

S

Wire Organizer's in Rear Wardrobe Closet:

-

Dual Rear Wardrobe w/ Hings Rods :

-

Full Rear Wardrobe w/ Hings Rod:

S

Bunk Bed Beadspreads and Privacy Curtains:

-

USB @Nightstands :

S

Individual reading lights bed overhead:

S

Bathroom

Polished Solid Surface Lavy Countertop:

S

Polished Solid Surface Lavy Shelf:

S

Feature Lighting at Lavy Top:

S

Tile Backsplash :

S

Gemstone Undermount Lav Sink:

S

Residential Chrome Double Handle Faucet :

S

Deluxe Hardwood Medicine Cabinet w/ Mirror:

S

Hardwood Raised Panel Doors:

S

Tile Shower:

S

Glass Shower Door - Clear:

S

Shower Skylight:

S

Chrome Shower Head w/On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Toilet Porcelain w/Macerator Foot-flush w/Water Saver:

S

Fantastic® Power Vent w/Wall Switch :

S

Hardwood Window treatment:

S

Manual Night Roller Shade - Black :

S

Accessories: Dual Towel Rings and Toilet Paper :

S

Entertainment

LG 32″ Flat Screen LED TV (Bedroom):

S

LG 43″ Flat Screen LED TV (Living Area):

-

LG 49″ Flat Screen LED TV (Living Area):

-

49" Pop-up TV (Living Area) :

-

55" Pop-up TV (Living Area) (Added for 2019):

S

Bose® Solo 5 TV Sound System:

S

Blu-Ray® Player w/remote:

S

LG 32" Flat Screen LED TV (Front Overhead):

S

Exterior Entertainment 48" TV JBL Soundbar w/Bluetooth® :

S

LED TV/DVD Combo in Bunk Bed Area (2) :

-

LG 43" Flat Screen LED TV (Living Area):

-

Electric & Utilities

Air Conditioner: Roof Mount High Efficiency Ducted 15,000 BTU w/ Chill Grill and Rear has Heat Pump (3) :

S

Aqua Hot® 400 :

S

Firefly Multiplex Wiring:

S

Service: 50-amp, 120-volt Service Panel:

S

Converter: 60 AMP Power Converter - Precision Circuits:

S

Inverter: Single 2800W Pure Sine w/Remote - Magnum:

S

Energy Management System (EMS) w/Soft Start - Precision Circuits:

S

Nuetral Loss Protection:

S

Onan® Generator Quiet Diesel 8KW :

S

Generator Auto Changeover:

S

Auto Gen Start:

S

Deep Cycle House Batteries 6V (6) :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Purification System :

S

Black Water Tank Flush:

S

Gravity Water Fill DS/RS:

S

Cable TV/satellite hookup:

S

Toilet Tank San-T-Flush System:

S

Touch Sensor Tank Monitoring and Battery readout:

S

CO & Smoke Detectors, Fire Extinguisher:

S

Exterior GFCI receptacle in Exterior Storage:

S

Central Vacuum System:

S

Surge Guard Transfer Switch:

S

Power Water Hose Reel:

S

Power Cord Reel:

S

100W Solar Panel:

S

Technology Package (WiFiRanger™Sky4 ProPack w/LTE, WeBoost Cell Booster, Mobile Eye Collision Mitigation, 265 Watt Solar Panel):

S

:
