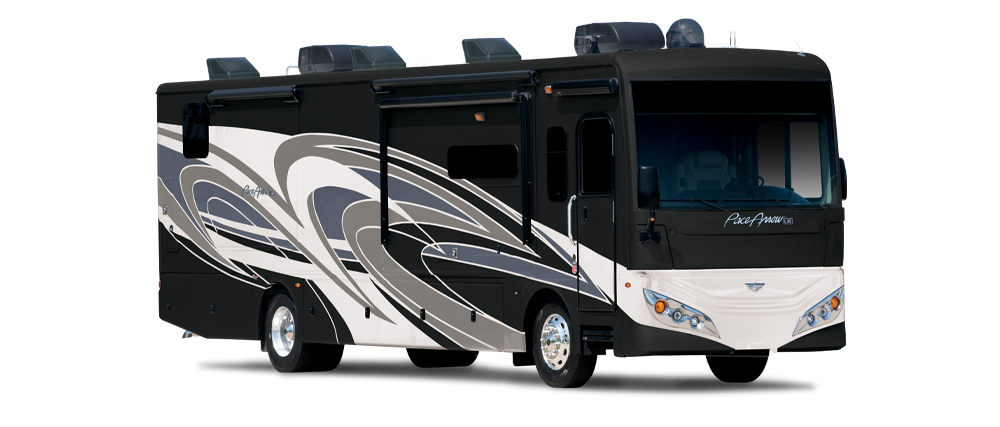

Pace Arrow LXE

Be free to go farther.

Be free to go farther.

When it comes to full-size diesel luxury coupled with value, Pace Arrow LXE can’t be beat. Here you get Fleetwood’s custom Freedom Bridge™ chassis, an on-demand tankless water heater, 105-gallon fresh water holding tank, 100-gallon fuel capacity and 100w standard solar panel. Plus, it boasts industry-leading pass-through storage.

We refreshed the looks of Pace Arrow LXE quite a bit for 2020—including updated furniture, exterior graphics and paint colors, three new interior décor packages and three new cabinetry options. The kitchen now features an expanded galley window and Whirlpool® residential appliances, including a 36-inch side-by-side refrigerator with in-door ice and water.

If you want to escape from it all, then Pace Arrow LXE hits the bullseye.

Chassis

Chassis:

FREIGHTLINER XCM

GVWR:

33000

GCWR:

33000

Rear Axle GAWR:

21000

Front Axle GAWR:

12400

Hitch Rating:

10000

Front Suspension: Neway Air Suspension:

S

Rear Suspension: V-Ride Air Suspension:

S

Wheel Cut 55 Degree :

S

Front Brakes: 17" Air Disc Brakes w/ ABS:

S

Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ABS:

S

Tuned Sachs Shocks:

S

Power Assisted Steering:

S

Auto Headlight (FCCC):

S

Electronic Dash (FCCC):

S

Engine Equipment

Cummins® ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque:

S

Allison® 2500 MH 6-Speed Automatic transmission w/Electronic Shift Control:

S

Alternator Delco® Remy 160 AMP:

S

Chassis Battery 72 AMP:

S

Chassis Batteries 6V Heavy Duty (2) :

S

Tires and Wheels

Front Tires :

275/80R 22.5H

Rear Tires:

275/80R 22.5H

Front and Rear Aluminum Wheels:

S

Valve Stem Extensions:

S

Sizes

Wheelbase:

245

Exterior Length:

38'8"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

132

Basement Storage (cu.ft.):

142

Awning Size:

18'

# of Slideouts:

3

Capacities

Fuel (gal):

100

Fresh Water (gal):

105

Gray Waste Water (gal):

75

Black Waste Water (gal):

50

Tankless Water Heater (Girard):

S

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-BondTM Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (No Wood Substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass-Through Basement Storage w/Composite Floor and Wall Construction:

S

Heated Fresh Water and Holding Tank Compartments:

S

Freedom Bridge® Chassis Construction:

S

Entry Step Box Steel Constructed :

S

Slide-Out Systems Electric Main/Bedroom/Wardrobe/Kitchen :

S

Steel Frame Chassis Construction Powder Coated :

S

Undercoating Full Coverage Heavy Duty :

S

CSA Build:

O

Exterior

Four-Color Premier Full Body Paint:

S

Fiberglass Wheel Well Trims:

S

One-piece Molded Fiberglass Domed Roof:

S

Awning - Electric Patio Awning w/LED Lighting and Wind Sensor Retract:

S

Powered Entrance Awning w/LED Lighting:

S

Slide-Out Awning Toppers Above All Slideouts - Dometic:

S

Entrance Door - Radius trimmed door w/ black interior and black screen door, with rotary latch, deadbolt lock and Window :

S

Acrylic Lighted Grab Handle at Entry Door:

S

Side Swing Aluminum Bus-Style Baggage doors w/Chrome Handles:

S

Windows - Large Dark Tinted Frameless Windows Throughout:

S

LED Patio Lights - (At Entry Door and Doorside Slide-out):

S

Porch Light w/Interior Switch:

S

Automatic Hydraulic Leveling Jacks:

S

Front, Side and Rear LED Clearance and Marker Lighting:

S

Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves, Water Heater Bypass Valve:

S

Water Filtration System:

S

Exterior Park Cable and Satellite Hookup:

S

7-Way Round Tow Connection:

S

Rear Ladder - Brushed Aluminum Color:

S

Full Length RearGard w/Nameplate:

S

Mudflaps Front/Rear:

S

Rear UnderHood Utility Light:

S

Antenna - Unidirectional King Controls Jack Antenna:

S

Basement Storage LED Lighting :

S

Heated Holding Tank Compartment:

S

Basement Pass-Through Storage:

S

King Universal Stationary Satellite:

S

Undercarriage LED Lights:

S

Full Bay Slide Trays - 1st Bay Single 90" :

S

Roof Vent Rain Covers :

S

Entertainment Center 48" LED TV Exterior :

S

Luggage Trim Stainless Steel Trim:

-

Roof A/C 3rd:

O

Cab Exterior

Front Fiberglass Cap Two-piece :

S

Rear Cap One-piece:

S

Generator Access One-piece :

S

Automotive One-piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:

-

Lower Front Protective Mask:

S

Blindspot Detection :

S

Cab Interior

Dash Inserts - Driver Instrument Panels:

S

Black Instrument Gauges w/Electronic Information Center:

S

Push Button Start:

S

Evens High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers w/Delay:

S

Keyless Entry w/Remotes:

S

Switch for Power/Heated Chrome Mirrors:

S

Switch for Utility Service Compartment:

S

Driver Console w/ Lower Storage Bin:

S

Power Locks w/Key FOB Control:

S

Backup Monitor 7" Color:

S

Sirius/XM® Satellite Radio Ready (Requires Subscription):

S

Magnadyne 10.2" Stereo Touchscreen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/WiFi:

S

Driver Chair-Ultra Leather w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair-Ultra Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:

S

Seat Belts - Three Point Driver & Passenger w/ Adjustable Straps:

S

12V and USB Accessory Ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest w/ Solid Surface Top:

S

Roller Shades and Blinds Front, Power :

S

Drive/Passenger Side Manual Roller Shades and Blinds:

S

Stereo Switch Main/Auxiliary Power at Dash:

S

Battery Disconnect Switch at Dash Additional :

S

Momentary Battery Booster Switch - Connecting Chassis and House Batteries:

S

Map Lights:

S

Drive/Passenger Overhead Storage Cabinetry:

S

Air Horn :

S

Automatic Leveling Jacks w/Touchpad Controls:

S

Hide-A-LoftTM Overhead Bunk w/Mattress Power Drop-Down :

O

Interior

Sofa - 81" X 70" L-Sofa w/Jackknife :

-

Sofa - 86" X 70" L-Sofa w/Air Mattress:

-

Sofa - 60" Rest Assured:

-

Sofa - 78 Sofa w/Air Mattress:

S

Chair - Recliner Swivel Glide :

S

Facing Dinette Booth :

-

Freestanding Dinette w/Credenza:

S

U-Shape Dinette :

-

Electric Fireplace :

S

Soft Touch Vinyl Ceiling Interior Flat :

S

Polished Porcelain Tile Flooring Throughout:

S

Floor Heat in Living Area :

S

Full Extension Drawer Guides Throughout w/ Latches:

S

Hidden Hinge :

S

Hardwood :

S

Hardwood Ceiling Feature Trim w/Lighting :

S

Coordinating Valance w/Lambrequins:

S

Manual Day/Night Roller Shades Front/Driver/Pass - Black/Black:

S

Manual Day/Night Roller Shades Throughout - Color/Black :

S

Safe-T-View Camera System:

S

110V/USB Ports Throughout :

S

Ceiling and Accent Wall Lighting Energy Efficient LED 3" Puck Flush Mount :

S

Washer/Dryer :

S

Accent Rope Lighting (Tops, Living Slide-out Trims, Ceiling Trim):

S

Sleeper Sofa :

-

L-Sofa :

O

Theatre Seat:

O

Facing Dinette Booth :

O

L-Shape Dinette :

-

Freestanding Dinette w/Credenza:

-

Interior Entry

Power Entry Step Cover:

S

Entry Step w/LED Accent Lighting, Solid Surface :

S

Battery Disconnect at Passenger Cabinet:

S

Metal Interior Grab Handle at Entry:

S

Entry Door Manual Roller Shades and Blinds:

S

Step Well Lighted :

S

Entrance Steps Automatic :

S

Kitchen

Refrigerator - 36-inch Wide, Counter Depth Side-by-Side, 21 cu. ft. w/Exterior Ice & Water Dispenser :

S

Electric Cooktop Two-Burner High Output Induction :

S

Stainless Steel Over the Range 1000W Convection Microwave :

S

Polished Solid Surface Galley Countertop w/Lighting:

S

Shadow Box Glass Tile Backsplash w/Window & Shade:

S

Stainless Steel Sink (Deeper):

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/Pullout Sprayer :

S

Adjustable Shelves in Kitchen:

S

Full Extension Drawer Guides w/ Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Pantry :

S

Dishwasher :

O

Bedroom or Bunk Area

King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head (Wolf):

S

28" x 73" Bunk Beds with 5" Foam Mattress:

-

Designer Bedspread, Pillow Shams & Pillows:

S

Headboard:

S

Coordinating Fabric Window Treatments and Lambrequins:

S

Remote Generator Start Switch:

S

SurfX Bedroom Tops:

S

Hardwood Raised Panel Doors:

S

Hardwood Cabinet Wardrobe Doors w/ Mirrors:

S

Cedar Lined Rear Wardrobe Closet:

S

Wardrobe w/Hinges Rods, Dual Rear :

S

Wardrobe w/Hinges Rod, Full Rear :

-

Barn Doors, Bunk Bed :

-

Nightstands w/USB :

S

Reading Lights Overhead Bed (2):

S

Lavy

Polished Solid Surface Lavy Countertop:

S

Polished Solid Surface Lavy Shelf:

-

Tile Backsplash :

S

Lavy Sink Gemstone Undermount :

S

Faucet Double Handle, Residential Chrome :

S

Medicine Cabinet w/Mirror, Deluxe Hardwood :

S

Panel Doors, Hardwood Raised :

S

Shower Pan and Surround, Fiberglass Colored :

S

Shower Door - Glass :

S

Shower Skylight:

S

Shower Head Brush Nickel w/On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Toilet: Porcelain Macerator Foot-flushw/Water Saver:

S

Toilet: Porcelain Foot-flush w/Water Saver:

-

Fantastic® Power Vent w/Wall Switch :

S

Window Treatment Hardwood :

S

Night Roller Shade - Manual, Black :

S

Accessories: Dual Towel Rings and Toilet Paper :

S

Entertainment

LG 32″ Flat Screen LED TV (Bedroom):

S

LG 43″ Flat Screen LED TV (Bedroom):

-

LG 43″ Flat Screen LED TV (Living Area):

-

LG 49″ Flat Screen LED TV (Living Area):

S

LED TV 49" Pop-up (Living Area) :

-

Bose® Solo 5 TV Sound System (Living Area):

S

Blu-Ray® Player w/Remote:

S

LG 32" Flat Screen LED TV (Front Overhead):

S

Exterior Entertainment 40" TV Soundbar w/Bluetooth® :

S

LED TV/DVD Combo Units (2):

-

Electric & Utilities

Air Conditioner: (3) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear has Heat Pump:

S

25,000/25,000 BTU Furnace :

S

30,000/25,000 BTU Furnace :

Precision Circuits Multiplex Wiring:

S

Service: 50 AMP, 120-volt Service Panel:

S

Converter: 60 AMP Power Converter - Precision Circuits:

S

Inverter: Single 2000W Pure Sine w/Remote - Magnum:

S

Energy Management System (EMS) w/Soft Start - Precision Circuits:

S

Neutral Loss Protection:

S

Generator: 8KW Onan® Quiet Diesel:

S

Generator Auto Changeover:

S

Auto Gen Start:

S

Batteries: 6V Deep Cycle House Batteries (4) :

S

Water Pump: 12V 3GPM High Capacity Shurflo® Water Pump:

S

Water Purification System :

S

Black Water Tank Flush:

S

Gravity Water Fill DS/RS:

S

Cable TV/Satellite Hookup:

S

Toilet Tank San-T-Flush System:

S

Touch Sensor Tank Monitoring and Battery Readout:

S

CO & Smoke Detectors, Fire Extinguisher:

S

GFCI Receptacle in Exterior Storage:

S

Central Vacuum System:

S

Surge Guard Transfer Switch:

S

Power Cord Reel:

S

100W Solar Panel:

S

Technology Package (WiFiRanger™Sky4 ProPack w/LTE, WeBoost Cell Booster, Mobile Eye Collision Mitigation, 265 Watt Solar Panel):

S

:
Chassis

Chassis:

FREIGHTLINER XCM

GVWR:

33000

GCWR:

33000

Rear Axle GAWR:

21000

Front Axle GAWR:

12400

Hitch Rating:

10000

Front Suspension: Neway Air Suspension:

S

Rear Suspension: V-Ride Air Suspension:

S

Wheel Cut 55 Degree :

S

Front Brakes: 17" Air Disc Brakes w/ ABS:

S

Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ABS:

S

Tuned Sachs Shocks:

S

Power Assisted Steering:

S

Auto Headlight (FCCC):

S

Electronic Dash (FCCC):

S

Engine Equipment

Cummins® ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque:

S

Allison® 2500 MH 6-Speed Automatic transmission w/Electronic Shift Control:

S

Alternator Delco® Remy 160 AMP:

S

Chassis Battery 72 AMP:

S

Chassis Batteries 6V Heavy Duty (2) :

S

Tires and Wheels

Front Tires :

275/80R 22.5H

Rear Tires:

275/80R 22.5H

Front and Rear Aluminum Wheels:

S

Valve Stem Extensions:

S

Sizes

Wheelbase:

263

Exterior Length:

40'1"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

166

Basement Storage (cu.ft.):

142

Awning Size:

19'-6"

# of Slideouts:

4

Capacities

Fuel (gal):

100

Fresh Water (gal):

105

Gray Waste Water (gal):

75

Black Waste Water (gal):

50

Tankless Water Heater (Girard):

S

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-BondTM Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (No Wood Substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass-Through Basement Storage w/Composite Floor and Wall Construction:

S

Heated Fresh Water and Holding Tank Compartments:

S

Freedom Bridge® Chassis Construction:

S

Entry Step Box Steel Constructed :

S

Slide-Out Systems Electric Main/Bedroom/Wardrobe/Kitchen :

S

Steel Frame Chassis Construction Powder Coated :

S

Undercoating Full Coverage Heavy Duty :

S

CSA Build:

O

Exterior

Four-Color Premier Full Body Paint:

S

Fiberglass Wheel Well Trims:

S

One-piece Molded Fiberglass Domed Roof:

S

Awning - Electric Patio Awning w/LED Lighting and Wind Sensor Retract:

S

Powered Entrance Awning w/LED Lighting:

S

Slide-Out Awning Toppers Above All Slideouts - Dometic:

S

Entrance Door - Radius trimmed door w/ black interior and black screen door, with rotary latch, deadbolt lock and Window :

S

Acrylic Lighted Grab Handle at Entry Door:

S

Side Swing Aluminum Bus-Style Baggage doors w/Chrome Handles:

S

Windows - Large Dark Tinted Frameless Windows Throughout:

S

LED Patio Lights - (At Entry Door and Doorside Slide-out):

S

Porch Light w/Interior Switch:

S

Automatic Hydraulic Leveling Jacks:

S

Front, Side and Rear LED Clearance and Marker Lighting:

S

Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves, Water Heater Bypass Valve:

S

Water Filtration System:

S

Exterior Park Cable and Satellite Hookup:

S

7-Way Round Tow Connection:

S

Rear Ladder - Brushed Aluminum Color:

S

Full Length RearGard w/Nameplate:

S

Mudflaps Front/Rear:

S

Rear UnderHood Utility Light:

S

Antenna - Unidirectional King Controls Jack Antenna:

S

Basement Storage LED Lighting :

S

Heated Holding Tank Compartment:

S

Basement Pass-Through Storage:

S

King Universal Stationary Satellite:

S

Undercarriage LED Lights:

S

Full Bay Slide Trays - 1st Bay Single 90" :

S

Roof Vent Rain Covers :

S

Entertainment Center 48" LED TV Exterior :

S

Luggage Trim Stainless Steel Trim:

-

Roof A/C 3rd:

O

Cab Exterior

Front Fiberglass Cap Two-piece :

S

Rear Cap One-piece:

S

Generator Access One-piece :

S

Automotive One-piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:

-

Lower Front Protective Mask:

S

Blindspot Detection :

S

Cab Interior

Dash Inserts - Driver Instrument Panels:

S

Black Instrument Gauges w/Electronic Information Center:

S

Push Button Start:

S

Evens High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers w/Delay:

S

Keyless Entry w/Remotes:

S

Switch for Power/Heated Chrome Mirrors:

S

Switch for Utility Service Compartment:

S

Driver Console w/ Lower Storage Bin:

S

Power Locks w/Key FOB Control:

S

Backup Monitor 7" Color:

S

Sirius/XM® Satellite Radio Ready (Requires Subscription):

S

Magnadyne 10.2" Stereo Touchscreen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/WiFi:

S

Driver Chair-Ultra Leather w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair-Ultra Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:

S

Seat Belts - Three Point Driver & Passenger w/ Adjustable Straps:

S

12V and USB Accessory Ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest w/ Solid Surface Top:

S

Roller Shades and Blinds Front, Power :

S

Drive/Passenger Side Manual Roller Shades and Blinds:

S

Stereo Switch Main/Auxiliary Power at Dash:

S

Battery Disconnect Switch at Dash Additional :

S

Momentary Battery Booster Switch - Connecting Chassis and House Batteries:

S

Map Lights:

S

Drive/Passenger Overhead Storage Cabinetry:

S

Air Horn :

S

Automatic Leveling Jacks w/Touchpad Controls:

S

Hide-A-LoftTM Overhead Bunk w/Mattress Power Drop-Down :

O

Interior

Sofa - 81" X 70" L-Sofa w/Jackknife :

-

Sofa - 86" X 70" L-Sofa w/Air Mattress:

S

Sofa - 60" Rest Assured:

-

Sofa - 78 Sofa w/Air Mattress:

-

Chair - Recliner Swivel Glide :

S

Facing Dinette Booth :

-

Freestanding Dinette w/Credenza:

S

U-Shape Dinette :

S

Electric Fireplace :

S

Soft Touch Vinyl Ceiling Interior Flat :

S

Polished Porcelain Tile Flooring Throughout:

S

Floor Heat in Living Area :

S

Full Extension Drawer Guides Throughout w/ Latches:

S

Hidden Hinge :

S

Hardwood :

S

Hardwood Ceiling Feature Trim w/Lighting :

S

Coordinating Valance w/Lambrequins:

S

Manual Day/Night Roller Shades Front/Driver/Pass - Black/Black:

S

Manual Day/Night Roller Shades Throughout - Color/Black :

S

Safe-T-View Camera System:

S

110V/USB Ports Throughout :

S

Ceiling and Accent Wall Lighting Energy Efficient LED 3" Puck Flush Mount :

S

Washer/Dryer :

S

Accent Rope Lighting (Tops, Living Slide-out Trims, Ceiling Trim):

S

Sleeper Sofa :

O

L-Sofa :

-

Theatre Seat:

-

Facing Dinette Booth :

O

L-Shape Dinette :

-

Freestanding Dinette w/Credenza:

-

Interior Entry

Power Entry Step Cover:

S

Entry Step w/LED Accent Lighting, Solid Surface :

S

Battery Disconnect at Passenger Cabinet:

S

Metal Interior Grab Handle at Entry:

S

Entry Door Manual Roller Shades and Blinds:

S

Step Well Lighted :

S

Entrance Steps Automatic :

S

Kitchen

Refrigerator - 36-inch Wide, Counter Depth Side-by-Side, 21 cu. ft. w/Exterior Ice & Water Dispenser :

S

Electric Cooktop Two-Burner High Output Induction :

S

Stainless Steel Over the Range 1000W Convection Microwave :

S

Polished Solid Surface Galley Countertop w/Lighting:

S

Shadow Box Glass Tile Backsplash w/Window & Shade:

S

Stainless Steel Sink (Deeper):

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/Pullout Sprayer :

S

Adjustable Shelves in Kitchen:

S

Full Extension Drawer Guides w/ Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Pantry :

S

Dishwasher :

O

Bedroom or Bunk Area

King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head (Wolf):

S

28" x 73" Bunk Beds with 5" Foam Mattress:

-

Designer Bedspread, Pillow Shams & Pillows:

S

Headboard:

S

Coordinating Fabric Window Treatments and Lambrequins:

S

Remote Generator Start Switch:

S

SurfX Bedroom Tops:

S

Hardwood Raised Panel Doors:

S

Hardwood Cabinet Wardrobe Doors w/ Mirrors:

S

Cedar Lined Rear Wardrobe Closet:

S

Wardrobe w/Hinges Rods, Dual Rear :

-

Wardrobe w/Hinges Rod, Full Rear :

S

Barn Doors, Bunk Bed :

-

Nightstands w/USB :

S

Reading Lights Overhead Bed (2):

S

Lavy

Polished Solid Surface Lavy Countertop:

S

Polished Solid Surface Lavy Shelf:

-

Tile Backsplash :

S

Lavy Sink Gemstone Undermount :

S

Faucet Double Handle, Residential Chrome :

S

Medicine Cabinet w/Mirror, Deluxe Hardwood :

S

Panel Doors, Hardwood Raised :

S

Shower Pan and Surround, Fiberglass Colored :

S

Shower Door - Glass :

S

Shower Skylight:

S

Shower Head Brush Nickel w/On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Toilet: Porcelain Macerator Foot-flushw/Water Saver:

S

Toilet: Porcelain Foot-flush w/Water Saver:

-

Fantastic® Power Vent w/Wall Switch :

S

Window Treatment Hardwood :

S

Night Roller Shade - Manual, Black :

S

Accessories: Dual Towel Rings and Toilet Paper :

S

Entertainment

LG 32″ Flat Screen LED TV (Bedroom):

-

LG 43″ Flat Screen LED TV (Bedroom):

S

LG 43″ Flat Screen LED TV (Living Area):

-

LG 49″ Flat Screen LED TV (Living Area):

S

LED TV 49" Pop-up (Living Area) :

-

Bose® Solo 5 TV Sound System (Living Area):

S

Blu-Ray® Player w/Remote:

S

LG 32" Flat Screen LED TV (Front Overhead):

S

Exterior Entertainment 40" TV Soundbar w/Bluetooth® :

S

LED TV/DVD Combo Units (2):

-

Electric & Utilities

Air Conditioner: (3) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear has Heat Pump:

S

25,000/25,000 BTU Furnace :

30,000/25,000 BTU Furnace :

S

Precision Circuits Multiplex Wiring:

S

Service: 50 AMP, 120-volt Service Panel:

S

Converter: 60 AMP Power Converter - Precision Circuits:

S

Inverter: Single 2000W Pure Sine w/Remote - Magnum:

S

Energy Management System (EMS) w/Soft Start - Precision Circuits:

S

Neutral Loss Protection:

S

Generator: 8KW Onan® Quiet Diesel:

S

Generator Auto Changeover:

S

Auto Gen Start:

S

Batteries: 6V Deep Cycle House Batteries (4) :

S

Water Pump: 12V 3GPM High Capacity Shurflo® Water Pump:

S

Water Purification System :

S

Black Water Tank Flush:

S

Gravity Water Fill DS/RS:

S

Cable TV/Satellite Hookup:

S

Toilet Tank San-T-Flush System:

S

Touch Sensor Tank Monitoring and Battery Readout:

S

CO & Smoke Detectors, Fire Extinguisher:

S

GFCI Receptacle in Exterior Storage:

S

Central Vacuum System:

S

Surge Guard Transfer Switch:

S

Power Cord Reel:

S

100W Solar Panel:

S

Technology Package (WiFiRanger™Sky4 ProPack w/LTE, WeBoost Cell Booster, Mobile Eye Collision Mitigation, 265 Watt Solar Panel):

S

:
Chassis

Chassis:

FREIGHTLINER XCM

GVWR:

33000

GCWR:

33000

Rear Axle GAWR:

21000

Front Axle GAWR:

12400

Hitch Rating:

10000

Front Suspension: Neway Air Suspension:

S

Rear Suspension: V-Ride Air Suspension:

S

Wheel Cut 55 Degree :

S

Front Brakes: 17" Air Disc Brakes w/ ABS:

S

Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ABS:

S

Tuned Sachs Shocks:

S

Power Assisted Steering:

S

Auto Headlight (FCCC):

S

Electronic Dash (FCCC):

S

Engine Equipment

Cummins® ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque:

S

Allison® 2500 MH 6-Speed Automatic transmission w/Electronic Shift Control:

S

Alternator Delco® Remy 160 AMP:

S

Chassis Battery 72 AMP:

S

Chassis Batteries 6V Heavy Duty (2) :

S

Tires and Wheels

Front Tires :

275/80R 22.5H

Rear Tires:

275/80R 22.5H

Front and Rear Aluminum Wheels:

S

Valve Stem Extensions:

S

Sizes

Wheelbase:

252

Exterior Length:

38'8"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

140

Basement Storage (cu.ft.):

127

Awning Size:

18'

# of Slideouts:

3

Capacities

Fuel (gal):

100

Fresh Water (gal):

105

Gray Waste Water (gal):

75

Black Waste Water (gal):

50

Tankless Water Heater (Girard):

S

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-BondTM Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (No Wood Substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass-Through Basement Storage w/Composite Floor and Wall Construction:

S

Heated Fresh Water and Holding Tank Compartments:

S

Freedom Bridge® Chassis Construction:

S

Entry Step Box Steel Constructed :

S

Slide-Out Systems Electric Main/Bedroom/Wardrobe/Kitchen :

S

Steel Frame Chassis Construction Powder Coated :

S

Undercoating Full Coverage Heavy Duty :

S

CSA Build:

O

Exterior

Four-Color Premier Full Body Paint:

S

Fiberglass Wheel Well Trims:

S

One-piece Molded Fiberglass Domed Roof:

S

Awning - Electric Patio Awning w/LED Lighting and Wind Sensor Retract:

S

Powered Entrance Awning w/LED Lighting:

S

Slide-Out Awning Toppers Above All Slideouts - Dometic:

S

Entrance Door - Radius trimmed door w/ black interior and black screen door, with rotary latch, deadbolt lock and Window :

S

Acrylic Lighted Grab Handle at Entry Door:

S

Side Swing Aluminum Bus-Style Baggage doors w/Chrome Handles:

S

Windows - Large Dark Tinted Frameless Windows Throughout:

S

LED Patio Lights - (At Entry Door and Doorside Slide-out):

S

Porch Light w/Interior Switch:

S

Automatic Hydraulic Leveling Jacks:

S

Front, Side and Rear LED Clearance and Marker Lighting:

S

Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves, Water Heater Bypass Valve:

S

Water Filtration System:

S

Exterior Park Cable and Satellite Hookup:

S

7-Way Round Tow Connection:

S

Rear Ladder - Brushed Aluminum Color:

S

Full Length RearGard w/Nameplate:

S

Mudflaps Front/Rear:

S

Rear UnderHood Utility Light:

S

Antenna - Unidirectional King Controls Jack Antenna:

S

Basement Storage LED Lighting :

S

Heated Holding Tank Compartment:

S

Basement Pass-Through Storage:

S

King Universal Stationary Satellite:

S

Undercarriage LED Lights:

S

Full Bay Slide Trays - 1st Bay Single 90" :

S

Roof Vent Rain Covers :

S

Entertainment Center 48" LED TV Exterior :

S

Luggage Trim Stainless Steel Trim:

-

Roof A/C 3rd:

O

Cab Exterior

Front Fiberglass Cap Two-piece :

S

Rear Cap One-piece:

S

Generator Access One-piece :

S

Automotive One-piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:

-

Lower Front Protective Mask:

S

Blindspot Detection :

S

Cab Interior

Dash Inserts - Driver Instrument Panels:

S

Black Instrument Gauges w/Electronic Information Center:

S

Push Button Start:

S

Evens High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers w/Delay:

S

Keyless Entry w/Remotes:

S

Switch for Power/Heated Chrome Mirrors:

S

Switch for Utility Service Compartment:

S

Driver Console w/ Lower Storage Bin:

S

Power Locks w/Key FOB Control:

S

Backup Monitor 7" Color:

S

Sirius/XM® Satellite Radio Ready (Requires Subscription):

S

Magnadyne 10.2" Stereo Touchscreen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/WiFi:

S

Driver Chair-Ultra Leather w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair-Ultra Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:

S

Seat Belts - Three Point Driver & Passenger w/ Adjustable Straps:

S

12V and USB Accessory Ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest w/ Solid Surface Top:

S

Roller Shades and Blinds Front, Power :

S

Drive/Passenger Side Manual Roller Shades and Blinds:

S

Stereo Switch Main/Auxiliary Power at Dash:

S

Battery Disconnect Switch at Dash Additional :

S

Momentary Battery Booster Switch - Connecting Chassis and House Batteries:

S

Map Lights:

S

Drive/Passenger Overhead Storage Cabinetry:

S

Air Horn :

S

Automatic Leveling Jacks w/Touchpad Controls:

S

Hide-A-LoftTM Overhead Bunk w/Mattress Power Drop-Down :

O

Interior

Sofa - 81" X 70" L-Sofa w/Jackknife :

S

Sofa - 86" X 70" L-Sofa w/Air Mattress:

-

Sofa - 60" Rest Assured:

-

Sofa - 78 Sofa w/Air Mattress:

-

Chair - Recliner Swivel Glide :

-

Facing Dinette Booth :

-

Freestanding Dinette w/Credenza:

-

U-Shape Dinette :

S

Electric Fireplace :

S

Soft Touch Vinyl Ceiling Interior Flat :

S

Polished Porcelain Tile Flooring Throughout:

S

Floor Heat in Living Area :

S

Full Extension Drawer Guides Throughout w/ Latches:

S

Hidden Hinge :

S

Hardwood :

S

Hardwood Ceiling Feature Trim w/Lighting :

S

Coordinating Valance w/Lambrequins:

S

Manual Day/Night Roller Shades Front/Driver/Pass - Black/Black:

S

Manual Day/Night Roller Shades Throughout - Color/Black :

S

Safe-T-View Camera System:

S

110V/USB Ports Throughout :

S

Ceiling and Accent Wall Lighting Energy Efficient LED 3" Puck Flush Mount :

S

Washer/Dryer :

S

Accent Rope Lighting (Tops, Living Slide-out Trims, Ceiling Trim):

S

Sleeper Sofa :

-

L-Sofa :

-

Theatre Seat:

O

Facing Dinette Booth :

-

L-Shape Dinette :

-

Freestanding Dinette w/Credenza:

O

Interior Entry

Power Entry Step Cover:

S

Entry Step w/LED Accent Lighting, Solid Surface :

S

Battery Disconnect at Passenger Cabinet:

S

Metal Interior Grab Handle at Entry:

S

Entry Door Manual Roller Shades and Blinds:

S

Step Well Lighted :

S

Entrance Steps Automatic :

S

Kitchen

Refrigerator - 36-inch Wide, Counter Depth Side-by-Side, 21 cu. ft. w/Exterior Ice & Water Dispenser :

S

Electric Cooktop Two-Burner High Output Induction :

S

Stainless Steel Over the Range 1000W Convection Microwave :

S

Polished Solid Surface Galley Countertop w/Lighting:

S

Shadow Box Glass Tile Backsplash w/Window & Shade:

S

Stainless Steel Sink (Deeper):

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/Pullout Sprayer :

S

Adjustable Shelves in Kitchen:

S

Full Extension Drawer Guides w/ Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Pantry :

S

Dishwasher :

O

Bedroom or Bunk Area

King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head (Wolf):

S

28" x 73" Bunk Beds with 5" Foam Mattress:

-

Designer Bedspread, Pillow Shams & Pillows:

S

Headboard:

S

Coordinating Fabric Window Treatments and Lambrequins:

S

Remote Generator Start Switch:

S

SurfX Bedroom Tops:

S

Hardwood Raised Panel Doors:

S

Hardwood Cabinet Wardrobe Doors w/ Mirrors:

S

Cedar Lined Rear Wardrobe Closet:

S

Wardrobe w/Hinges Rods, Dual Rear :

S

Wardrobe w/Hinges Rod, Full Rear :

-

Barn Doors, Bunk Bed :

-

Nightstands w/USB :

S

Reading Lights Overhead Bed (2):

S

Lavy

Polished Solid Surface Lavy Countertop:

S

Polished Solid Surface Lavy Shelf:

S

Tile Backsplash :

S

Lavy Sink Gemstone Undermount :

S

Faucet Double Handle, Residential Chrome :

S

Medicine Cabinet w/Mirror, Deluxe Hardwood :

S

Panel Doors, Hardwood Raised :

S

Shower Pan and Surround, Fiberglass Colored :

S

Shower Door - Glass :

S

Shower Skylight:

S

Shower Head Brush Nickel w/On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Toilet: Porcelain Macerator Foot-flushw/Water Saver:

S

Toilet: Porcelain Foot-flush w/Water Saver:

S

Fantastic® Power Vent w/Wall Switch :

S

Window Treatment Hardwood :

S

Night Roller Shade - Manual, Black :

S

Accessories: Dual Towel Rings and Toilet Paper :

S

Entertainment

LG 32″ Flat Screen LED TV (Bedroom):

S

LG 43″ Flat Screen LED TV (Bedroom):

-

LG 43″ Flat Screen LED TV (Living Area):

S

LG 49″ Flat Screen LED TV (Living Area):

-

LED TV 49" Pop-up (Living Area) :

-

Bose® Solo 5 TV Sound System (Living Area):

S

Blu-Ray® Player w/Remote:

S

LG 32" Flat Screen LED TV (Front Overhead):

S

Exterior Entertainment 40" TV Soundbar w/Bluetooth® :

S

LED TV/DVD Combo Units (2):

-

Electric & Utilities

Air Conditioner: (3) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear has Heat Pump:

S

25,000/25,000 BTU Furnace :

30,000/25,000 BTU Furnace :

S

Precision Circuits Multiplex Wiring:

S

Service: 50 AMP, 120-volt Service Panel:

S

Converter: 60 AMP Power Converter - Precision Circuits:

S

Inverter: Single 2000W Pure Sine w/Remote - Magnum:

S

Energy Management System (EMS) w/Soft Start - Precision Circuits:

S

Neutral Loss Protection:

S

Generator: 8KW Onan® Quiet Diesel:

S

Generator Auto Changeover:

S

Auto Gen Start:

S

Batteries: 6V Deep Cycle House Batteries (4) :

S

Water Pump: 12V 3GPM High Capacity Shurflo® Water Pump:

S

Water Purification System :

S

Black Water Tank Flush:

S

Gravity Water Fill DS/RS:

S

Cable TV/Satellite Hookup:

S

Toilet Tank San-T-Flush System:

S

Touch Sensor Tank Monitoring and Battery Readout:

S

CO & Smoke Detectors, Fire Extinguisher:

S

GFCI Receptacle in Exterior Storage:

S

Central Vacuum System:

S

Surge Guard Transfer Switch:

S

Power Cord Reel:

S

100W Solar Panel:

S

Technology Package (WiFiRanger™Sky4 ProPack w/LTE, WeBoost Cell Booster, Mobile Eye Collision Mitigation, 265 Watt Solar Panel):

S

:
Chassis

Chassis:

FREIGHTLINER XCM

GVWR:

33000

GCWR:

33000

Rear Axle GAWR:

21000

Front Axle GAWR:

12400

Hitch Rating:

10000

Front Suspension: Neway Air Suspension:

S

Rear Suspension: V-Ride Air Suspension:

S

Wheel Cut 55 Degree :

S

Front Brakes: 17" Air Disc Brakes w/ ABS:

S

Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ABS:

S

Tuned Sachs Shocks:

S

Power Assisted Steering:

S

Auto Headlight (FCCC):

S

Electronic Dash (FCCC):

S

Engine Equipment

Cummins® ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque:

S

Allison® 2500 MH 6-Speed Automatic transmission w/Electronic Shift Control:

S

Alternator Delco® Remy 160 AMP:

S

Chassis Battery 72 AMP:

S

Chassis Batteries 6V Heavy Duty (2) :

S

Tires and Wheels

Front Tires :

275/80R 22.5H

Rear Tires:

275/80R 22.5H

Front and Rear Aluminum Wheels:

S

Valve Stem Extensions:

S

Sizes

Wheelbase:

252

Exterior Length:

38'8"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

148

Basement Storage (cu.ft.):

127

Awning Size:

10'-8"

# of Slideouts:

3

Capacities

Fuel (gal):

100

Fresh Water (gal):

105

Gray Waste Water (gal):

75

Black Waste Water (gal):

50

Tankless Water Heater (Girard):

S

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-BondTM Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (No Wood Substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass-Through Basement Storage w/Composite Floor and Wall Construction:

S

Heated Fresh Water and Holding Tank Compartments:

S

Freedom Bridge® Chassis Construction:

S

Entry Step Box Steel Constructed :

S

Slide-Out Systems Electric Main/Bedroom/Wardrobe/Kitchen :

S

Steel Frame Chassis Construction Powder Coated :

S

Undercoating Full Coverage Heavy Duty :

S

CSA Build:

O

Exterior

Four-Color Premier Full Body Paint:

S

Fiberglass Wheel Well Trims:

S

One-piece Molded Fiberglass Domed Roof:

S

Awning - Electric Patio Awning w/LED Lighting and Wind Sensor Retract:

S

Powered Entrance Awning w/LED Lighting:

S

Slide-Out Awning Toppers Above All Slideouts - Dometic:

S

Entrance Door - Radius trimmed door w/ black interior and black screen door, with rotary latch, deadbolt lock and Window :

S

Acrylic Lighted Grab Handle at Entry Door:

S

Side Swing Aluminum Bus-Style Baggage doors w/Chrome Handles:

S

Windows - Large Dark Tinted Frameless Windows Throughout:

S

LED Patio Lights - (At Entry Door and Doorside Slide-out):

S

Porch Light w/Interior Switch:

S

Automatic Hydraulic Leveling Jacks:

S

Front, Side and Rear LED Clearance and Marker Lighting:

S

Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves, Water Heater Bypass Valve:

S

Water Filtration System:

S

Exterior Park Cable and Satellite Hookup:

S

7-Way Round Tow Connection:

S

Rear Ladder - Brushed Aluminum Color:

S

Full Length RearGard w/Nameplate:

S

Mudflaps Front/Rear:

S

Rear UnderHood Utility Light:

S

Antenna - Unidirectional King Controls Jack Antenna:

S

Basement Storage LED Lighting :

S

Heated Holding Tank Compartment:

S

Basement Pass-Through Storage:

S

King Universal Stationary Satellite:

S

Undercarriage LED Lights:

S

Full Bay Slide Trays - 1st Bay Single 90" :

S

Roof Vent Rain Covers :

S

Entertainment Center 48" LED TV Exterior :

S

Luggage Trim Stainless Steel Trim:

-

Roof A/C 3rd:

O

Cab Exterior

Front Fiberglass Cap Two-piece :

S

Rear Cap One-piece:

S

Generator Access One-piece :

S

Automotive One-piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:

-

Lower Front Protective Mask:

S

Blindspot Detection :

S

Cab Interior

Dash Inserts - Driver Instrument Panels:

S

Black Instrument Gauges w/Electronic Information Center:

S

Push Button Start:

S

Evens High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers w/Delay:

S

Keyless Entry w/Remotes:

S

Switch for Power/Heated Chrome Mirrors:

S

Switch for Utility Service Compartment:

S

Driver Console w/ Lower Storage Bin:

S

Power Locks w/Key FOB Control:

S

Backup Monitor 7" Color:

S

Sirius/XM® Satellite Radio Ready (Requires Subscription):

S

Magnadyne 10.2" Stereo Touchscreen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/WiFi:

S

Driver Chair-Ultra Leather w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair-Ultra Leather w/Reclining Back, Swivel 6-way Power Controls & Footrest:

S

Seat Belts - Three Point Driver & Passenger w/ Adjustable Straps:

S

12V and USB Accessory Ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest w/ Solid Surface Top:

S

Roller Shades and Blinds Front, Power :

S

Drive/Passenger Side Manual Roller Shades and Blinds:

S

Stereo Switch Main/Auxiliary Power at Dash:

S

Battery Disconnect Switch at Dash Additional :

S

Momentary Battery Booster Switch - Connecting Chassis and House Batteries:

S

Map Lights:

S

Drive/Passenger Overhead Storage Cabinetry:

S

Air Horn :

S

Automatic Leveling Jacks w/Touchpad Controls:

S

Hide-A-LoftTM Overhead Bunk w/Mattress Power Drop-Down :

O

Interior

Sofa - 81" X 70" L-Sofa w/Jackknife :

-

Sofa - 86" X 70" L-Sofa w/Air Mattress:

-

Sofa - 60" Rest Assured:

S

Sofa - 78 Sofa w/Air Mattress:

-

Chair - Recliner Swivel Glide :

-

Facing Dinette Booth :

S

Freestanding Dinette w/Credenza:

S

U-Shape Dinette :

-

Electric Fireplace :

S

Soft Touch Vinyl Ceiling Interior Flat :

S

Polished Porcelain Tile Flooring Throughout:

S

Floor Heat in Living Area :

S

Full Extension Drawer Guides Throughout w/ Latches:

S

Hidden Hinge :

S

Hardwood :

S

Hardwood Ceiling Feature Trim w/Lighting :

S

Coordinating Valance w/Lambrequins:

S

Manual Day/Night Roller Shades Front/Driver/Pass - Black/Black:

S

Manual Day/Night Roller Shades Throughout - Color/Black :

S

Safe-T-View Camera System:

S

110V/USB Ports Throughout :

S

Ceiling and Accent Wall Lighting Energy Efficient LED 3" Puck Flush Mount :

S

Washer/Dryer :

S

Accent Rope Lighting (Tops, Living Slide-out Trims, Ceiling Trim):

S

Sleeper Sofa :

-

L-Sofa :

-

Theatre Seat:

O

Facing Dinette Booth :

-

L-Shape Dinette :

O

Freestanding Dinette w/Credenza:

O

Interior Entry

Power Entry Step Cover:

S

Entry Step w/LED Accent Lighting, Solid Surface :

S

Battery Disconnect at Passenger Cabinet:

S

Metal Interior Grab Handle at Entry:

S

Entry Door Manual Roller Shades and Blinds:

S

Step Well Lighted :

S

Entrance Steps Automatic :

S

Kitchen

Refrigerator - 36-inch Wide, Counter Depth Side-by-Side, 21 cu. ft. w/Exterior Ice & Water Dispenser :

S

Electric Cooktop Two-Burner High Output Induction :

S

Stainless Steel Over the Range 1000W Convection Microwave :

S

Polished Solid Surface Galley Countertop w/Lighting:

S

Shadow Box Glass Tile Backsplash w/Window & Shade:

S

Stainless Steel Sink (Deeper):

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/Pullout Sprayer :

S

Adjustable Shelves in Kitchen:

S

Full Extension Drawer Guides w/ Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Pantry :

S

Dishwasher :

O

Bedroom or Bunk Area

King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head (Wolf):

S

28" x 73" Bunk Beds with 5" Foam Mattress:

S

Designer Bedspread, Pillow Shams & Pillows:

S

Headboard:

S

Coordinating Fabric Window Treatments and Lambrequins:

S

Remote Generator Start Switch:

S

SurfX Bedroom Tops:

S

Hardwood Raised Panel Doors:

S

Hardwood Cabinet Wardrobe Doors w/ Mirrors:

S

Cedar Lined Rear Wardrobe Closet:

S

Wardrobe w/Hinges Rods, Dual Rear :

S

Wardrobe w/Hinges Rod, Full Rear :

-

Barn Doors, Bunk Bed :

S

Nightstands w/USB :

S

Reading Lights Overhead Bed (2):

S

Lavy

Polished Solid Surface Lavy Countertop:

S

Polished Solid Surface Lavy Shelf:

S

Tile Backsplash :

S

Lavy Sink Gemstone Undermount :

S

Faucet Double Handle, Residential Chrome :

S

Medicine Cabinet w/Mirror, Deluxe Hardwood :

S

Panel Doors, Hardwood Raised :

S

Shower Pan and Surround, Fiberglass Colored :

S

Shower Door - Glass :

S

Shower Skylight:

S

Shower Head Brush Nickel w/On/Off, Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Toilet: Porcelain Macerator Foot-flushw/Water Saver:

S

Toilet: Porcelain Foot-flush w/Water Saver:

S

Fantastic® Power Vent w/Wall Switch :

S

Window Treatment Hardwood :

S

Night Roller Shade - Manual, Black :

S

Accessories: Dual Towel Rings and Toilet Paper :

S

Entertainment

LG 32″ Flat Screen LED TV (Bedroom):

S

LG 43″ Flat Screen LED TV (Bedroom):

-

LG 43″ Flat Screen LED TV (Living Area):

S

LG 49″ Flat Screen LED TV (Living Area):

-

LED TV 49" Pop-up (Living Area) :

-

Bose® Solo 5 TV Sound System (Living Area):

S

Blu-Ray® Player w/Remote:

S

LG 32" Flat Screen LED TV (Front Overhead):

S

Exterior Entertainment 40" TV Soundbar w/Bluetooth® :

S

LED TV/DVD Combo Units (2):

S

Electric & Utilities

Air Conditioner: (3) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear has Heat Pump:

S

25,000/25,000 BTU Furnace :

30,000/25,000 BTU Furnace :

S

Precision Circuits Multiplex Wiring:

S

Service: 50 AMP, 120-volt Service Panel:

S

Converter: 60 AMP Power Converter - Precision Circuits:

S

Inverter: Single 2000W Pure Sine w/Remote - Magnum:

S

Energy Management System (EMS) w/Soft Start - Precision Circuits:

S

Neutral Loss Protection:

S

Generator: 8KW Onan® Quiet Diesel:

S

Generator Auto Changeover:

S

Auto Gen Start:

S

Batteries: 6V Deep Cycle House Batteries (4) :

S

Water Pump: 12V 3GPM High Capacity Shurflo® Water Pump:

S

Water Purification System :

S

Black Water Tank Flush:

S

Gravity Water Fill DS/RS:

S

Cable TV/Satellite Hookup:

S

Toilet Tank San-T-Flush System:

S

Touch Sensor Tank Monitoring and Battery Readout:

S

CO & Smoke Detectors, Fire Extinguisher:

S

GFCI Receptacle in Exterior Storage:

S

Central Vacuum System:

S

Surge Guard Transfer Switch:

S

Power Cord Reel:

S

100W Solar Panel:

S

Technology Package (WiFiRanger™Sky4 ProPack w/LTE, WeBoost Cell Booster, Mobile Eye Collision Mitigation, 265 Watt Solar Panel):

S

:
