Class A

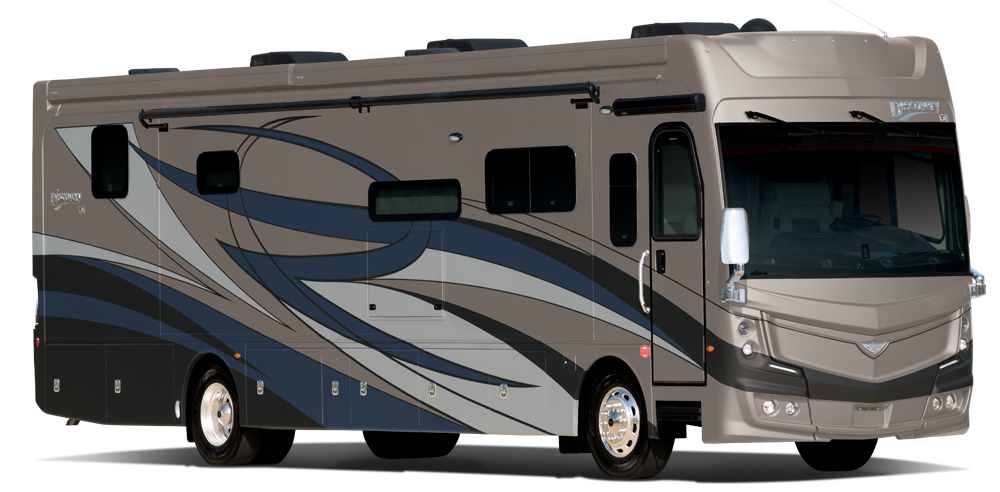

Discovery LXE
In a class of its own.

In a class of its own.
When you think about the full package, what you mean is Discovery LXE. There’s virtually nothing lacking in this vehicle. You get power from the Cummins® engine, which can put out up to 450HP with an incredible 1250 lb./ft. torque. Our custom Freedom Bridge chassis can support as much as 43,600…
When you think about the full package, what you mean is Discovery LXE. There’s virtually nothing lacking in this vehicle. You get power from the Cummins® engine, which can put out up to 450HP with an incredible 1250 lb./ft. torque. Our custom Freedom Bridge chassis can support as much as 43,600 pounds, while still maintaining 55-60 degree turning radius. V-Ride suspension cushions your ride and our 44-foot models also feature the UltraSteer™ steerable tag axle.
You’ll find incredible storage underneath, with a 90-inch full slideout bay and can add on a second one for good measure. Stay plugged in with an 8kW Onan® generator with automatic start and access and control all your home’s systems with a Firefly MultiPlex system with a 7-inch touchscreen. Your kitchen features Whirlpool® residential appliances, including a French door refrigerator. And driving is a breeze with a digital dash, fully-integrated steering wheel controls and adjustable, suspended pedals.
It’s everything you want. And so much more.
In a class of its own.
When you think about the full package, what you mean is Discovery LXE. There’s virtually nothing lacking in this vehicle. You get power from the Cummins® engine, which can put out up to 450HP with an incredible 1250 lb./ft. torque. Our custom Freedom Bridge chassis can support as much as 43,600 pounds, while still maintaining 55-60 degree turning radius. V-Ride suspension cushions your ride and our 44-foot models also feature the UltraSteer™ steerable tag axle.
You’ll find incredible storage underneath, with a 90-inch full slideout bay and can add on a second one for good measure. Stay plugged in with an 8kW Onan® generator with automatic start and access and control all your home’s systems with a Firefly MultiPlex system with a 7-inch touchscreen. Your kitchen features Whirlpool® residential appliances, including a French door refrigerator. And driving is a breeze with a digital dash, fully-integrated steering wheel controls and adjustable, suspended pedals.
It’s everything you want. And so much more.
-
Chassis
Chassis Type:
FREIGHTLINER XCM
GVWR:
36400
GCWR:
46400
Rear Axle GAWR:
24000
Front Axle GAWR:
12400
Hitch Rating:
10000
Front suspension: Neway Air Suspension:
S
55 Degree Wheel Cut:
S
Rear suspension: V-Ride Air Suspension:
S
Front Brakes: Air Disc w/ABS:
S
Rear Brakes: Bendix drum brakes w/ABS:
S
Custom Tuned Sachs Shocks:
S
Power assisted Steering:
S
Suspended pedals (FCCC):
S
Push Button Start (FCCC):
S
Auto Headlight (FCCC):
S
DriveTech w/Optiview Instrument Cluster (FCCC):
S
Engine Equipment
Cummins ISL9 380 HP / 1,150 lb-ft Torque:
S
Alternator- Delco Remy 160 AMP:
S
Allison 3000 MH 6-Speed Automatic transmission w/ Electronic Shift Control:
S
Chassis Battery 72-amp:
S
(2) 12V Heavy Duty Chassis Batteries:
S
Tires and Wheels
Front Tires :
275/80R 22.5H
Rear Tires:
275/80R 22.5H
Front and Rear Aluminum Wheels:
S
Valve Stem Extensions:
S
Sizes
Wheelbase:
276"
Exterior Length:
36'9"
Exterior Width:
102"
Exterior Height:
12'10"
Interior Height:
84"
Interior Width:
96"
Interior Storage (cu.ft.):
149
Basement Storage (cu.ft.):
88
Awning -Girard (Roof Mounted):
18'
# of Slideouts:
4
Capacities
Fuel (gal):
100
Fresh Water (gal):
105
Gray Waste Water (gal):
75
Black Waste Water (gal):
50
400D Aqua Hot:
S
Construction
Power Lock System Aluminum Welded - Interlocking Floor, Walls and Roof:
S
Dryseal Edge Coating for all Walls and Floors:
S
Vacu-Bond Constructed Roof, Sidewalls and Floor:
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):
S
High Density Polystyrene Insulated Sidewalls, Roof and Floor:
S
Quiet Cool Ducted A/C System:
S
Full Pass Through Basement Storage w/Composite Floor and Wall Construction:
S
Heated Fresh Water and Holding Tank Compartments:
S
Freedom Bridge Chassis Construction:
S
Steel Constructed Entry Step Box:
S
Electric Slide Out Systems:
S
Coated Steel Frame Chassis Construction:
S
Full Coverage Heavy Duty Undercoating:
S
CSA Build:
O
Exterior
4-Color Premium Full Body Paint:
S
Fiberglass Wheel Well Skirts:
S
One piece Molded Fiberglass Domed Roof:
S
Awning - Roof Mount Electric Patio Awning w/ LED lighting and Motion Sensor Retract:
S
Powered entrance awning w/LED lighting:
S
Slide Out Awning Toppers above all Slideouts:
S
Entry Door W/Radiused Upper, Deadbolt and Screen Door:
S
Acrylic Lighted Grab Handle at Entry Door:
S
Side Swing Aluminum Bus-Style Baggage Doors w/Chrome Handles:
S
Windows - Frameless Tinted Windows (Select Locations):
S
LED Patio Lights:
S
Porch light w/interior switch:
S
Automatic hydraulic leveling jacks:
S
Front, Side and Rear LED Clearance and Marker lighting:
S
Exterior Service Station - Includes: Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves:
S
Full-coach water filtration system:
S
Exterior Park Cable and Satellite Hookup:
S
7-Way Round Tow Connection:
S
Rear Ladder:
S
Full Length Rearguard w/Nameplate:
S
Front & Rear Mud flaps:
S
Rear Underhood Utility Light:
S
Unidirectional HD On-Air Antenna:
S
Basement Storage LED Lighting :
S
Heated holding tank compartment:
S
Basement Pass-Through Storage:
S
King Universal Stationary Satellite:
S
Undercarriage LED Lights:
S
Full Bay Slide Trays - 1st Bay Single 90" :
S
Roof Vent Rain Covers :
S
Exterior Entertainment Center :
S
Winegard In motion Satellite :
O
Satellite Delete:
O
Full Bay SlideTrays - 2nd Bay Single 90":
O
Exterior Freezer:
O
2nd Roof Mounted Awning :
O
Cab Exterior
Fiberglass Front Cap Assembly:
S
Fiberglass Rear Cap Assembly:
S
Fiberglass Sliding Generator Access:
S
Automotive One Piece Windshield:
S
Daytime Running Lights:
S
Tinted Slider Driver/Passenger Windows:
S
Fog Lamps:
S
Top Mount Automotive Style Windshield Wiper System:
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:
S
Lower front protective mask:
S
Blind Spot Detection:
O
Cab Interior
Air Suspension Deflation System (Dash air dump control):
S
High Output Dash Air Conditioning and Heat:
S
Electronic Cruise Control:
S
Windshield Wipers with Delay:
S
Keyless entry w/remotes:
S
Switch for Power/Heated Chrome Mirrors:
S
Switch for Utility Service Compartment:
S
Driver Console w/ Lower Storage Bin:
S
Power Entry Door Lock w/Key FOB Control:
S
7" Color Backup Monitor:
S
Sirius/XM Satellite Radio Ready (Requires Subscription):
S
10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/WiFi:
S
Driver Seat w/Reclining Back, Swivel and 6-way Power Controls:
S
Passenger Seat w/Reclining Back, Swivel 6-way Power Controls & Power Footrest:
S
Seat Belts - 3 Point Driver & Passenger:
S
12V and USB accessory ports:
S
110-Volt AC Outlet at Dash and Passenger Area:
S
Automotive Style Wrap Around Dash:
S
Passenger Console w/Solid Surface Top:
S
Front Power Roller Shades and Blinds:
S
Driver/Passenger Side Manual Roller Shades and Blinds:
S
Stereo Switch Main/Auxiliary Power at Dash:
S
Additional Battery Disconnect Switch at Dash:
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries:
S
Map lights:
S
Driver & Passenger Overhead Storage Cabinetry:
S
Electric Alert Horn:
S
Automatic Leveling Jacks Touchpad Controls:
S
Cabinet Front Overhead Lighting:
S
Power Drop-Down Hide-A-Loft Overhead Bunk:
O
Interior
Sofa w/Twin Bed:
S
Loveseat w/Storage:
S
Power Motion Lounge:
S
Adap"table" Dinette/Breakfast Bar:
S
Interior Flat Soft Touch Vinyl Ceiling:
S
Mat Finish Porcelain Tile Flooring Throughout:
S
Floor Heat for Living Area :
S
Full Extension Drawer Guides Throughout w/ Latches:
S
Hidden Hinge Throughout:
S
Hardwood throughout:
S
Hardwood Ceiling Feature Trim w/Lighting:
S
Coordinating Window Treatments Throughout:
S
Manual Day/Night Roller Shades Throughout:
S
Safe-T-View Camera System:
S
110V/USB Ports Throughout :
S
Fantastic® Power Vent:
S
Energy Efficient LED Flush Mount Ceiling and Accent Lighting :
S
Stackable Washer and Dryer :
S
Four Interior Wood Color Choices:
O
Interior Entry
Power Entry Step Cover:
S
Solid Surface Entry Step w/LED Accent Lighting:
S
Metal Interior Grab Handle at Entry:
S
Entry Door Manual Roller Shades and Blind:
S
Automatic entrance steps:
S
Kitchen
Residential Refrigerator w/Exterior Ice & Water Dispenser:
S
2 Burner High Output Induction Electric Cooktop:
S
Stainless Steel Over the Range 1000W Convection Microwave :
S
Dishwasher :
S
Polished Solid Surface Galley Countertop w/lighting:
S
Glass Tile Backsplash :
S
Stainless Steel Farmhouse Sink:
S
Polished Solid Surface Sink Covers:
S
Residential Single Handle Faucet w/ pullout sprayer :
S
Adjustable Shelves Throughout Kitchen:
S
Full Extension Drawer Guides w/ Latches:
S
Fantastic® Power Vent w/Wall Switch :
S
Waste Basket:
S
Island Oasis w/Polished Solid Surface Top, Hardwood Trims & Stainless Steel Sink:
S
Pop-up Recepts:
S
Pantry w/Full Hardwood pull-outs:
S
Bedroom or Bunk Area
Designer Bedspread and Pillows w/Shams:
S
Headboard:
S
Remote Generator Start Switch:
S
Solid Surface Nightstand Tops:
S
Hardwood Raised Panel Doors:
S
Hardwood Cabinet Wardrobe Doors w/Mirrors:
S
USB at Nightstands :
S
Individual reading lights bed overhead:
S
Bathroom
Lavy Countertop w/Tile Backsplash:
S
Feature Lighting at Lavy Top:
S
Gemstone Undermount Lavy Sink:
S
Residential Chrome Faucet :
S
Deluxe Hardwood Medicine Cabinet w/ Mirror:
S
Hardwood Raised Panel Doors:
S
Tile Shower:
S
Glass Shower Door:
S
Shower Skylight:
S
Chrome Shower Head Assembly:
S
Porcelain Macerator Foot-flush Toilet w/Water Saver:
S
Hardwood Window treatment:
S
Manual Night Roller Shade - Black :
S
Towel Ring(s) and Toilet Paper Holder :
S
Entertainment
LED TV (Bedroom):
S
LED TV (Living Area):
S
LED TV (Front Overhead):
S
Sound Bar (Living Area):
S
Blu-Ray player w/Remote:
S
Exterior Entertainment Center w/LED TV & Sound Bar w/Bluetooth®:
S
(2) LED MONITOR/DVD Combo (Bunk Beds):
NA
Electric & Utilities
Air Conditioner: (3) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear Heat Pump:
S
Aqua Hot 400D:
S
Firefly Multiplex Wiring:
S
Service: 50-amp, 120-volt Service Panel:
S
Converter: 60 AMP Power Converter:
S
Inverter: Single 2800W Pure Sine w/Remote:
S
Energy Management System (EMS) w/Soft Start:
S
Neutral Loss Protection:
S
Generator: 8kW Onan Quiet Diesel:
S
Generator Auto Changeover:
S
Auto Gen Start:
S
Batteries: (6) 6V Deep Cycle House Batteries:
S
Water Pump: 12V 3GPM High Capacity Water Pump:
S
Water Filtration System (Whole Coach):
S
Black Water Tank Flush:
S
Gravity Water Fill DS/RS:
S
Cable TV/satellite hookup:
S
Toilet Tank San-T-Flush System:
S
Touch Sensor Tank Monitoring and Battery Readout:
S
CO & Smoke detectors, Fire Extinguisher:
S
Exterior GFCI receptacle in Exterior Storage:
S
Central Vacuum System:
S
Surge Guard Transfer Switch:
S
Power Water Hose Reel:
S
Power Cord Reel:
S
100W Solar Panel:
S
Blind Spot Detection:
O
Technology Package (Wifi Ranger, Cell Booster, 265W Solar Panel, Collision Mitigation):
O
-
Chassis
Chassis Type:
FREIGHTLINER XCM
GVWR:
36400
GCWR:
46400
Rear Axle GAWR:
24000
Front Axle GAWR:
12400
Hitch Rating:
10000
Front suspension: Neway Air Suspension:
S
55 Degree Wheel Cut:
S
Rear suspension: V-Ride Air Suspension:
S
Front Brakes: Air Disc w/ABS:
S
Rear Brakes: Bendix drum brakes w/ABS:
S
Custom Tuned Sachs Shocks:
S
Power assisted Steering:
S
Suspended pedals (FCCC):
S
Push Button Start (FCCC):
S
Auto Headlight (FCCC):
S
DriveTech w/Optiview Instrument Cluster (FCCC):
S
Engine Equipment
Cummins ISL9 380 HP / 1,150 lb-ft Torque:
S
Alternator- Delco Remy 160 AMP:
S
Allison 3000 MH 6-Speed Automatic transmission w/ Electronic Shift Control:
S
Chassis Battery 72-amp:
S
(2) 12V Heavy Duty Chassis Batteries:
S
Tires and Wheels
Front Tires :
275/80R 22.5H
Rear Tires:
275/80R 22.5H
Front and Rear Aluminum Wheels:
S
Valve Stem Extensions:
S
Sizes
Wheelbase:
276"
Exterior Length:
41'4"
Exterior Width:
102"
Exterior Height:
12'10"
Interior Height:
84"
Interior Width:
96"
Interior Storage (cu.ft.):
162
Basement Storage (cu.ft.):
157
Awning -Girard (Roof Mounted):
18'
# of Slideouts:
3
Capacities
Fuel (gal):
100
Fresh Water (gal):
105
Gray Waste Water (gal):
75
Black Waste Water (gal):
50
400D Aqua Hot:
S
Construction
Power Lock System Aluminum Welded - Interlocking Floor, Walls and Roof:
S
Dryseal Edge Coating for all Walls and Floors:
S
Vacu-Bond Constructed Roof, Sidewalls and Floor:
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):
S
High Density Polystyrene Insulated Sidewalls, Roof and Floor:
S
Quiet Cool Ducted A/C System:
S
Full Pass Through Basement Storage w/Composite Floor and Wall Construction:
S
Heated Fresh Water and Holding Tank Compartments:
S
Freedom Bridge Chassis Construction:
S
Steel Constructed Entry Step Box:
S
Electric Slide Out Systems:
S
Coated Steel Frame Chassis Construction:
S
Full Coverage Heavy Duty Undercoating:
S
CSA Build:
O
Exterior
4-Color Premium Full Body Paint:
S
Fiberglass Wheel Well Skirts:
S
One piece Molded Fiberglass Domed Roof:
S
Awning - Roof Mount Electric Patio Awning w/ LED lighting and Motion Sensor Retract:
S
Powered Entrance Awning w/LED Lighting:
S
Slide Out Awning Toppers above all Slideouts:
S
Entry Door w/Radiused Upper, Deadbolt and Screen Door:
S
Acrylic Lighted Grab Handle at Entry Door:
S
Side Swing Aluminum Bus-Style Baggage Doors w/Chrome Handles:
S
Windows - Frameless Tinted Windows (Select Locations):
S
LED Patio Lights:
S
Porch light w/interior switch:
S
Automatic hydraulic leveling jacks:
S
Front, Side and Rear LED Clearance and Marker lighting:
S
Exterior Service Station - Includes: Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves:
S
Full-coach water filtration system:
S
Exterior Park Cable and Satellite Hookup:
S
7-Way Round Tow Connection:
S
Rear Ladder:
S
Full Length Rearguard w/Nameplate:
S
Front & Rear Mud flaps:
S
Rear Underhood Utility Light:
S
Unidirectional HD On-Air Antenna:
S
Basement Storage LED Lighting :
S
Heated Holding Tank Compartment:
S
Basement Pass-Through Storage:
S
King Universal Stationary Satellite:
S
Undercarriage LED Lights:
S
Full Bay Slide Trays - 1st Bay Single 90" :
S
Roof Vent Rain Covers :
S
Exterior Entertainment Center :
S
Winegard In-Motion Satellite :
O
Satellite Delete:
O
Full Bay SlideTrays - 2nd Bay Single 90":
O
Exterior Freezer:
O
2nd Roof Mounted Awning :
O
Cab Exterior
Fiberglass Front Cap Assembly:
S
Fiberglass Rear Cap Assembly:
S
Fiberglass Sliding Generator Access:
S
Automotive One Piece Windshield:
S
Daytime Running Lights:
S
Tinted Slider Driver/Passenger Windows:
S
Fog Lamps:
S
Top Mount Automotive Style Windshield Wiper System:
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:
S
Lower Front Protective Mask:
S
Blindspot Detection:
O
Cab Interior
Air Suspension Deflation System (Dash air dump control):
S
High Output Dash Air Conditioning and Heat:
S
Electronic Cruise Control:
S
Windshield Wipers with Delay:
S
Keyless Entry w/remotes:
S
Switch for Power/Heated Chrome Mirrors:
S
Switch for Utility Service Compartment:
S
Driver Console w/ Lower Storage Bin:
S
Power Entry Door Lock w/Key FOB Control:
S
7" Color Backup Monitor:
S
Sirius/XM Satellite Radio Ready (Requires Subscription):
S
10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/WiFi:
S
Driver Seat w/Reclining Back, Swivel and 6-way Power Controls:
S
Passenger Seat w/Reclining Back, Swivel 6-way Power Controls & Power Footrest:
S
Seat Belts - 3 Point Driver & Passenger:
S
12V and USB accessory ports:
S
110-Volt AC Outlet at Dash and Passenger Area:
S
Automotive Style Wrap Around Dash:
S
Passenger Console w/Solid Surface Top:
S
Front Power Roller Shades and Blinds:
S
Driver/Passenger Side Manual Roller Shades and Blinds:
S
Stereo Switch Main/Auxiliary Power at Dash:
S
Additional Battery Disconnect Switch at Dash:
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries:
S
Map Lights:
S
Driver & Passenger Overhead Storage Cabinetry:
S
Electric Alert Horn:
S
Automatic Leveling Jacks Touchpad Controls:
S
Cabinet Front Overhead Lighting:
S
Power Drop-Down Hide-A-Loft Overhead Bunk:
O
Interior
Sofa w/Queen Bed & Ottoman(s):
S
Power Motion Lounge:
O
Freestanding Dinette w/Credenza:
S
L-Shape Dinette:
O
Electric Fireplace :
S
Interior Flat Soft Touch Vinyl Ceiling:
S
Mat Finish Porcelain Tile Flooring Throughout:
S
Floor Heat for Living Area :
S
Full Extension Drawer Guides Throughout w/ Latches:
S
Hidden Hinge Throughout:
S
Hardwood throughout:
S
Hardwood Ceiling Feature Trim w/Lighting:
S
Coordinating Window Treatments Throughout:
S
Manual Day/Night Roller Shades Throughout:
S
Safe-T-View Camera System:
S
110V/USB Ports Throughout :
S
Fantastic® Power Vent:
S
Energy Efficient LED Flush Mount Ceiling and Accent Lighting :
S
Stackable Washer and Dryer :
S
Four Interior Wood Color Choices:
O
Interior Entry
Power Entry Step Cover:
S
Solid Surface Entry Step w/LED Accent Lighting:
S
Metal Interior Grab Handle at Entry:
S
Entry Door Manual Roller Shades and Blind:
S
Automatic entrance steps:
S
Kitchen
Residential Refrigerator w/Exterior Ice & Water Dispenser:
S
2 Burner High Output Induction Electric Cooktop:
S
Stainless Steel Over the Range 1000W Convection Microwave :
S
Dishwasher :
S
Polished Solid Surface Galley Countertop w/lighting:
S
Glass Tile Backsplash :
S
Stainless Steel Farmhouse Sink:
S
Polished Solid Surface Sink Covers:
S
Residential Single Handle Faucet w/ pullout sprayer :
S
Adjustable Shelves Throughout Kitchen:
S
Full Extension Drawer Guides w/ Latches:
S
Fantastic® Power Vent w/Wall Switch :
S
Waste Basket:
S
Pantry w/Full Hardwood pull-outs:
S
Bedroom or Bunk Area
Designer Bedspread and Pillows w/Shams:
S
Headboard:
S
Remote Generator Start Switch:
S
Solid Surface Nightstand Tops:
S
Hardwood Raised Panel Doors:
S
Hardwood Cabinet Wardrobe Doors w/Mirrors:
S
USB at Nightstands :
S
Individual reading lights bed overhead:
S
Bathroom
Lavy Countertop w/Tile Backsplash:
S
Feature Lighting at Lavy Top:
S
Gemstone Undermount Lavy Sink:
S
Residential Chrome Faucet :
S
Deluxe Hardwood Medicine Cabinet w/ Mirror:
S
Hardwood Raised Panel Doors:
S
Tile Shower:
S
Glass Shower Door:
S
Shower Skylight:
S
Chrome Shower Head Assembly:
S
Porcelain Macerator Foot-flush Toilet w/Water Saver:
S
Hardwood Window treatment:
S
Manual Night Roller Shade - Black :
S
Entertainment
LED TV (Bedroom):
S
LED TV (Living Area):
S
LED TV (Front Overhead):
S
Sound Bar (Living Area):
S
Blu-Ray player w/Remote:
S
Exterior Entertainment Center w/LED TV & Sound Bar w/Bluetooth®:
S
Electric & Utilities
Air Conditioner: (3) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear Heat Pump:
S
Aqua Hot 400D:
S
Firefly Multiplex Wiring:
S
Service: 50-amp, 120-volt Service Panel:
S
Converter: 60 AMP Power Converter:
S
Inverter: Single 2800W Pure Sine w/Remote:
S
Energy Management System (EMS) w/Soft Start:
S
Neutral Loss Protection:
S
Generator: 8kW Onan Quiet Diesel:
S
Generator Auto Changeover:
S
Auto Gen Start:
S
Batteries: (6) 6V Deep Cycle House Batteries:
S
Water Pump: 12V 3GPM High Capacity Water Pump:
S
Water Filtration System (Whole Coach):
S
Black Water Tank Flush:
S
Gravity Water Fill DS/RS:
S
Cable TV/satellite hookup:
S
Toilet Tank San-T-Flush System:
S
Touch Sensor Tank Monitoring and Battery readout:
S
CO & Smoke detectors, Fire Extinguisher:
S
Exterior GFCI receptacle in Exterior Storage:
S
Central Vacuum System:
S
Surge Guard Transfer Switch:
S
Power Water Hose Reel:
S
Power Cord Reel:
S
100W Solar Panel:
S
Blindspot Detection:
O
Technology Package (Wifi Ranger, Cell Booster, 265W Solar Panel, Collision Mitigation):
O
-
Chassis
Chassis Type:
FREIGHTLINER XCM
GVWR:
36400
GCWR:
46400
Rear Tag GAWR:
NA
Front Axle GAWR:
12400
Hitch Rating:
10000
Front suspension: Neway Air Suspension:
S
55 Degree Wheel Cut:
S
Rear suspension: V-Ride Air Suspension:
S
Front Brakes: Air Disc w/ABS:
S
Rear Brakes: Bendix drum brakes w/ABS:
S
Custom Tuned Sachs Shocks:
S
Power assisted Steering:
S
Suspended pedals (FCCC):
S
Push Button Start (FCCC):
S
Auto Headlight (FCCC):
S
DriveTech w/Optiview Instrument Cluster (FCCC):
S
Engine Equipment
Cummins ISL9 380 HP / 1,150 lb-ft Torque:
S
Alternator- Delco Remy 160 AMP:
S
Allison 3000 MH 6-Speed Automatic transmission w/ Electronic Shift Control:
S
Chassis Battery 72-amp:
S
(2) 12V Heavy Duty Chassis Batteries:
S
Tires and Wheels
Front Tires :
275/80R 22.5H
Rear Tires:
275/80R 22.5H
Rear Tag Tries:
NA
Front and Rear Aluminum Wheels:
S
Valve Stem Extensions:
S
Sizes
Wheelbase:
276"
Exterior Length:
41'4"
Exterior Width:
102"
Exterior Height:
12'10"
Interior Height:
84"
Interior Width:
96"
Interior Storage (cu.ft.):
168
Basement Storage (cu.ft.):
157
Awning -Girard (Roof Mounted):
18'
# of Slideouts:
2
Capacities
Fuel (gal):
100
Fresh Water (gal):
105
Gray Waste Water (gal):
75
Black Waste Water (gal):
50
400D Aqua Hot:
S
Construction
Power Lock System Aluminum Welded - Interlocking Floor, Walls and Roof:
S
Dryseal Edge Coating for all Walls and Floors:
S
Vacu-Bond Constructed Roof, Sidewalls and Floor:
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):
S
High Density Polystyrine Insulated Sidewalls, Roof and Floor:
S
Quiet Cool Ducted A/C System:
S
Full Pass Through Basement Storage w/Composite Floor and Wall Construction:
S
Heated Fresh Water and Holding Tank Compartments:
S
Freedom Bridge Chassis Construction:
S
Steel Constructed Entry Step Box:
S
Electric Slide Out Systems:
S
Coated Steel Frame Chassis Construction:
S
Full Coverage Heavy Duty Undercoating:
S
CSA Build:
O
Exterior
4-Color Premium Full Body Paint:
S
Fiberglass Wheel Well Skirts:
S
One piece Molded Fiberglass Domed Roof:
S
Awning - Roof Mount Electric Patio Awning w/ LED lighting and Motion Sensor Retract:
S
Powered entrance awning w/LED lighting:
S
Slide Out Awning Toppers above all Slideouts:
S
Entry Door W/Radiused Upper, Deadbolt and Screen Door:
S
Acrylic Lighted Grab Handle at Entry Door:
S
Side Swing Aluminum Bus-Style Baggage Doors w/Chrome Handles:
S
Windows - Frameless Tinted Windows (Select Locations):
S
LED Patio Lights:
S
Porch light w/interior switch:
S
Automatic hydraulic leveling jacks:
S
Front, Side and Rear LED Clearance and Marker lighting:
S
Exterior Service Station - Includes: Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves:
S
Full-coach water filtration system:
S
Exterior Park Cable and Satellite Hookup:
S
7-Way Round Tow Connection:
S
Rear Ladder:
S
Full Length Rearguard w/Nameplate:
S
Front & Rear Mud flaps:
S
Rear Underhood Utility Light:
S
Unidirectional HD On-Air Antenna:
S
Basement Storage LED Lighting :
S
Heated holding tank compartment:
S
Basement Pass-Through Storage:
S
King Universal Stationary Satellite:
S
Undercarriage LED Lights:
S
Full Bay Slide Trays - 1st Bay Single 90" :
S
Roof Vent Rain Covers :
S
Exterior Entertainment Center :
S
Winegard In motion Satellite :
O
Satellite Delete:
O
Full Bay SlideTrays - 2nd Bay Single 90":
O
Extior Freezer:
O
2nd Roof Mounted Awning :
O
Cab Exterior
Fiberglass Front Cap Assembly:
S
Fiberglass Rear Cap Assembly:
S
Fiberglass Sliding Generator Access:
S
Automotive One Piece Windshield:
S
Daytime Running Lights:
S
Tinted Slider Driver/Passenger Windows:
S
Fog Lamps:
S
Top Mount Automotive Style Windshield Wiper System:
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:
S
Lower front protective mask:
S
Blind Spot Detection:
O
Cab Interior
Air Suspension Deflation System (Dash air dump control):
S
High Output Dash Air Conditioning and Heat:
S
Electronic Cruise Control:
S
Windshield Wipers with Delay:
S
Keyless entry w/remotes:
S
Switch for Power/Heated Chrome Mirrors:
S
Switch for Utility Service Compartment:
S
Driver Console w/ Lower Storage Bin:
S
Power Entry Door Lock w/Key FOB Control:
S
7" Color Backup Monitor:
S
Sirius/XM Satellite Radio Ready (Requires Subscription):
S
10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/WiFi:
S
Driver Seat w/Reclining Back, Swivel and 6-way Power Controls:
S
Passenger Seat w/Reclining Back, Swivel 6-way Power Controls & Power Footrest:
S
Seat Belts - 3 Point Driver & Passenger:
S
12V and USB accessory ports:
S
110-Volt AC Outlet at Dash and Passenger Area:
S
Automotive Style Wrap Around Dash:
S
Passenger Console w/Solid Surface Top:
S
Front Power Roller Shades and Blinds:
S
Driver/Passenger Side Manual Roller Shades and Blinds:
S
Stereo Switch Main/Auxiliary Power at Dash:
S
Additional Battery Disconnect Switch at Dash:
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries:
S
Map lights:
S
Driver & Passenger Overhead Storage Cabinetry:
S
Electric Alert Horn:
S
Automatic Leveling Jacks Touchpad Controls:
S
Cabinet Front Overhead Lighting:
S
Power Drop-Down Hide-A-Loft Overhead Bunk:
O
Interior
Sofa w/Full Bed:
S
Power Motion Lounge:
O
U-Shape Dinette:
S
Electric Fireplace :
S
Interior Flat Soft Touch Vinyl Ceiling:
S
Mat Finish Porcelain Tile Flooring Throughout:
S
Floor Heat for Living Area :
S
Full Extension Drawer Guides Throughout w/ Latches:
S
Hidden Hinge Throughout:
S
Hardwood throughout:
S
Hardwood Ceiling Feature Trim w/Lighting:
S
Coordinating Window Treatments Throughout:
S
Manual Day/Night Roller Shades Throughout:
S
Safe-T-View Camera System:
S
110V/USB Ports Throughout :
S
Fantastic® Power Vent:
S
Energy Efficient LED Flush Mount Ceiling and Accent Lighting :
S
Stackable Washer and Dryer :
S
Interior Entry
Power Entry Step Cover:
S
Solid Surface Entry Step w/LED Accent Lighting:
S
Metal Interior Grab Handle at Entry:
S
Entry Door Manual Roller Shades and Blind:
S
Automatic entrance steps:
S
Kitchen
Residential Refrigerator w/Exterior Ice & Water Dispenser:
S
2 Burner High Output Induction Electric Cooktop:
S
Stainless Steel Over the Range 1000W Convection Microwave :
S
Dishwasher :
S
Polished Solid Surface Galley Countertop w/lighting:
S
Glass Tile Backsplash :
S
Stainless Steel Farmhouse Sink:
S
Polished Solid Surface Sink Covers:
S
Residential Single Handle Faucet w/ pullout sprayer :
S
Adjustable Shelves Throughout Kitchen:
S
Full Extension Drawer Guides w/Latches:
S
Fantastic® Power Vent w/Wall Switch :
S
Waste Basket:
S
Pantry w/Full Hardwood Pull-outs:
S
Bedroom or Bunk Area
King Size Dream Easy Memory Foam Mattress:
S
28" x 73" Bunk Beds w/Residential Mattress:
S
Designer Bedspread and Pillows w/Shams:
S
Headboard:
S
Remote Generator Start Switch:
S
Solid Surface Nightstand Tops:
S
Hardwood Raised Panel Doors:
S
Hardwood Cabinet Wardrobe Doors w/Mirrors:
S
Wire Organizer's in Rear Wardrobe Closet:
S
USB at Nightstands :
S
Individual Reading Lights Bed Overhead:
S
Bathroom
Lavy Countertop w/Tile Backsplash:
S
Feature Lighting at Lavy Top:
S
Gemstone Undermount Lavy Sink:
S
Residential Chrome Faucet :
S
Deluxe Hardwood Medicine Cabinet w/ Mirror:
S
Hardwood Raised Panel Doors:
S
Tile Shower:
S
Glass Shower Door:
S
Shower Skylight:
S
Chrome Shower Head Assembly:
S
Porcelain Macerator Foot-flush Toilet w/Water Saver:
S
Hardwood Window treatment:
S
Manual Night Roller Shade - Black :
S
Entertainment
LED TV (Bedroom):
S
LED TV (Living Area):
S
LED TV (Front Overhead):
S
Soundbar (Living Area):
S
Blu-Ray player w/Remote:
S
Exterior Entertainment Center w/LED TV & Soundbar w/Bluetooth®:
S
(2) LED MONITOR/DVD Combo (Bunk Beds):
S
Electric & Utilities
Air Conditioner: (3) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear Heat Pump:
S
Aqua Hot 400D:
S
Firefly Multiplex Wiring:
S
Service: 50-amp, 120-volt Service Panel:
S
Converter: 60 AMP Power Converter:
S
Inverter: Single 2800W Pure Sine w/Remote:
S
Energy Management System (EMS) w/Soft Start:
S
Neutral Loss Protection:
S
Generator: 8kW Onan Quiet Diesel:
S
Generator Auto Changeover:
S
Auto Gen Start:
S
Batteries: (6) 6V Deep Cycle House Batteries:
S
Water Pump: 12V 3GPM High Capacity Water Pump:
S
Water Filtration System (Whole Coach):
S
Black Water Tank Flush:
S
Gravity Water Fill DS/RS:
S
Cable TV/satellite hookup:
S
Toilet Tank San-T-Flush System:
S
Touch Sensor Tank Monitoring and Battery readout:
S
CO & Smoke detectors, Fire Extinguisher:
S
Exterior GFCI receptacle in Exterior Storage:
S
Central Vacuum System:
S
Surge Guard Transfer Switch:
S
Power Water Hose Reel:
S
Power Cord Reel:
S
100W Solar Panel:
S
Blindspot Detection:
O
Technolgy Package (Wifi Ranger, Cell Booster, 265W Solar Panel, Collision Mitigation):
O
-
Chassis
Chassis Type:
FREIGHTLINER XCM
GVWR:
36400
GCWR:
46400
Rear Axle GAWR:
24000
Front Axle GAWR:
12400
Hitch Rating:
10000
Front suspension: Neway Air Suspension:
S
55 Degree Wheel Cut:
S
Rear suspension: V-Ride Air Suspension:
S
Front Brakes: Air Disc w/ABS:
S
Rear Brakes: Bendix drum brakes w/ABS:
S
Custom Tuned Sachs Shocks:
S
Power assisted Steering:
S
Suspended pedals (FCCC):
S
Push Button Start (FCCC):
S
Auto Headlight (FCCC):
S
DriveTech w/Optiview Instrument Cluster (FCCC):
S
Engine Equipment
Cummins ISL9 380 HP / 1,150 lb-ft Torque:
S
Alternator- Delco Remy 160 AMP:
S
Allison 3000 MH 6-Speed Automatic transmission w/ Electronic Shift Control:
S
Chassis Battery 72-amp:
S
(2) 12V Heavy Duty Chassis Batteries:
S
Tires and Wheels
Front Tires :
275/80R 22.5H
Rear Tires:
275/80R 22.5H
Front and Rear Aluminum Wheels:
S
Valve Stem Extensions:
S
Sizes
Wheelbase:
263"
Exterior Length:
40'1"
Exterior Width:
102"
Exterior Height:
12'10"
Interior Height:
84"
Interior Width:
96"
Interior Storage (cu.ft.):
133
Basement Storage (cu.ft.):
142
Awning -Girard (Roof Mounted):
18'
# of Slideouts:
3
Capacities
Fuel (gal):
100
Fresh Water (gal):
105
Gray Waste Water (gal):
75
Black Waste Water (gal):
50
400D Aqua Hot:
S
Construction
Power Lock System Aluminum Welded - Interlocking Floor, Walls and Roof:
S
Dryseal Edge Coating for all Walls and Floors:
S
Vacu-Bond Constructed Roof, Sidewalls and Floor:
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):
S
High Density Polystyrine Insulated Sidewalls, Roof and Floor:
S
Quiet Cool Ducted A/C System:
S
Full Pass Through Basement Storage w/Composite Floor and Wall Construction:
S
Heated Fresh Water and Holding Tank Compartments:
S
Freedom Bridge Chassis Construction:
S
Steel Constructed Entry Step Box:
S
Electric Slide Out Systems:
S
Coated Steel Frame Chassis Construction:
S
Full Coverage Heavy Duty Undercoating:
S
CSA Build:
O
Exterior
4-Color Premium Full Body Paint:
S
Fiberglass Wheel Well Skirts:
S
One-piece Molded Fiberglass Domed Roof:
S
Awning - Roof Mount Electric Patio Awning w/ LED lighting and Motion Sensor Retract:
S
Powered entrance awning w/LED lighting:
S
Slide Out Awning Toppers above all Slideouts:
S
Entry Door W/Radiused Upper, Deadbolt and Screen Door:
S
Acrylic Lighted Grab Handle at Entry Door:
S
Side Swing Aluminum Bus-Style Baggage Doors w/Chrome Handles:
S
Windows - Frameless Tinted Windows (Select Locations):
S
LED Patio Lights:
S
Porch light w/interior switch:
S
Automatic Hydraulic Leveling Jacks:
S
Front, Side and Rear LED Clearance and Marker Lighting:
S
Exterior Service Station - Includes: Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves:
S
Full-coach water filtration system:
S
Exterior Park Cable and Satellite Hookup:
S
7-Way Round Tow Connection:
S
Rear Ladder:
S
Full Length Rearguard w/Nameplate:
S
Front & Rear Mud flaps:
S
Rear Underhood Utility Light:
S
Unidirectional HD On-Air Antenna:
S
Basement Storage LED Lighting :
S
Heated Holding Tank Compartment:
S
Basement Pass-Through Storage:
S
King Universal Stationary Satellite:
S
Undercarriage LED Lights:
S
Full Bay Slide Trays - 1st Bay Single 90" :
S
Roof Vent Rain Covers :
S
Exterior Entertainment Center :
S
Winegard In motion Satellite :
O
Satellite Delete:
O
Full Bay SlideTrays - 2nd Bay Single 90":
O
ExteriorFreezer:
O
2nd Roof Mounted Awning :
O
Cab Exterior
Fiberglass Front Cap Assembly:
S
Fiberglass Rear Cap Assembly:
S
Fiberglass Sliding Generator Access:
S
Automotive One Piece Windshield:
S
Daytime Running Lights:
S
Tinted Slider Driver/Passenger Windows:
S
Fog Lamps:
S
Top Mount Automotive Style Windshield Wiper System:
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:
S
Lower front protective mask:
S
Blindspot Detection:
O
Cab Interior
Air Suspension Deflation System (Dash air dump control):
S
High Output Dash Air Conditioning and Heat:
S
Electronic Cruise Control:
S
Windshield Wipers with Delay:
S
Keyless entry w/remotes:
S
Switch for Power/Heated Chrome Mirrors:
S
Switch for Utility Service Compartment:
S
Driver Console w/ Lower Storage Bin:
S
Power Entry Door Lock w/Key FOB Control:
S
7" Color Backup Monitor:
S
Sirius/XM Satellite Radio Ready (Requires Subscription):
S
10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/WiFi:
S
Driver Seat w/Reclining Back, Swivel and 6-way Power Controls:
S
Passenger Seat w/Reclining Back, Swivel 6-way Power Controls & Power Footrest:
S
Seat Belts - 3 Point Driver & Passenger:
S
12V and USB accessory ports:
S
110-Volt AC Outlet at Dash and Passenger Area:
S
Automotive Style Wrap Around Dash:
S
Passenger Console w/Solid Surface Top:
S
Front Power Roller Shades and Blinds:
S
Driver/Passenger Side Manual Roller Shades and Blinds:
S
Stereo Switch Main/Auxiliary Power at Dash:
S
Additional Battery Disconnect Switch at Dash:
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries:
S
Map Lights:
S
Driver & Passenger Overhead Storage Cabinetry:
S
Electric Alert Horn:
S
Automatic Leveling Jacks Touchpad Controls:
S
Cabinet Front Overhead Lighting:
S
Power Drop-Down Hide-A-Loft Overhead Bunk:
O
Interior
Sofa w/Full Bed:
S
Loveseat w/Storage:
S
Power Motion Lounge:
O
FS Dinette w/Credenza:
O
Facing Dinette Booth:
S
Electric Fireplace :
S
Interior Flat Soft Touch Vinyl Ceiling:
S
Mat Finish Porcelain Tile Flooring Throughout:
S
Floor Heat for Living Area :
S
Full Extension Drawer Guides Throughout w/ Latches:
S
Hidden Hinge Throughout:
S
Hardwood throughout:
S
Hardwood Ceiling Feature Trim w/Lighting:
S
Coordinating Window Treatments Throughout:
S
Manual Day/Night Roller Shades Throughout:
S
Safe-T-View Camera System:
S
110V/USB Ports Throughout :
S
Fantastic® Power Vent:
S
Energy Efficient LED Flush Mount Ceiling and Accent Lighting :
S
Stackable Washer and Dryer :
S
Four Interior Wood Color Choices:
O
Interior Entry
Power Entry Step Cover:
S
Solid Surface Entry Step w/LED Accent Lighting:
S
Metal Interior Grab Handle at Entry:
S
Entry Door Manual Roller Shades and Blind:
S
Automatic Entrance Steps:
S
Kitchen
Residential Refrigerator w/Exterior Ice & Water Dispenser:
S
2 Burner High Output Induction Electric Cooktop:
S
Stainless Steel Over the Range 1000W Convection Microwave :
S
Dishwasher :
S
Polished Solid Surface Galley Countertop w/lighting:
S
Glass Tile Backsplash :
S
Shadow Box Glass Tile Backsplash w/window & shade:
S
Stainless Steel Farmhouse Sink:
S
Polished Solid Surface Sink Covers:
S
Residential Single Handle Faucet w/ pullout sprayer :
S
Adjustable Shelves Throughout Kitchen:
S
Full Extension Drawer Guides w/ Latches:
S
Fantastic® Power Vent w/Wall Switch :
S
Waste Basket:
S
Pantry w/Full Hardwood Pull-outs:
S
Bedroom or Bunk Area
Designer Bedspread and Pillows w/Shams:
S
Headboard:
S
Remote Generator Start Switch:
S
Solid Surface Nightstand Tops:
S
Hardwood Raised Panel Doors:
S
Hardwood Cabinet Wardrobe Doors w/Mirrors:
S
USB at Nightstands :
S
Individual Reading Lights Bed Overhead:
S
Bathroom
Lavy Countertop w/Tile Backsplash:
S
Feature Lighting at Lavy Top:
S
Gemstone Undermount Lavy Sink:
S
Residential Chrome Faucet :
S
Deluxe Hardwood Medicine Cabinet w/ Mirror:
S
Hardwood Raised Panel Doors:
S
Tile Shower:
S
Glass Shower Door:
S
Shower Skylight:
S
Chrome Shower Head Assembly:
S
Porcelain Macerator Foot-flush Toilet w/Water Saver:
S
Hardwood Window treatment:
S
Manual Night Roller Shade - Black :
S
Entertainment
LED TV (Bedroom):
S
LED TV (Living Area):
S
LED TV (Front Overhead):
S
Mid Wall LED TV (Living Area):
O
Pop-up LED TV (Living Area) :
S
Soundbar (Living Area):
S
Blu-Ray player w/Remote:
S
Exterior Entertainment Center w/LED TV & Sound Bar w/Bluetooth®:
S
Electric & Utilities
Air Conditioner: (3) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear Heat Pump:
S
Aqua Hot 400D:
S
Firefly Multiplex Wiring:
S
Service: 50-amp, 120-volt Service Panel:
S
Converter: 60 AMP Power Converter:
S
Inverter: Single 2800W Pure Sine w/Remote:
S
Energy Management System (EMS) w/Soft Start:
S
Neutral Loss Protection:
S
Generator: 8kW Onan Quiet Diesel:
S
Generator Auto Changeover:
S
Auto Gen Start:
S
Batteries: (6) 6V Deep Cycle House Batteries:
S
Water Pump: 12V 3GPM High Capacity Water Pump:
S
Water Filtration System (Whole Coach):
S
Black Water Tank Flush:
S
Gravity Water Fill DS/RS:
S
Cable TV/satellite hookup:
S
Toilet Tank San-T-Flush System:
S
Touch Sensor Tank Monitoring and Battery Readout:
S
CO & Smoke Detectors, Fire Extinguisher:
S
Exterior GFCI Receptacle in Exterior Storage:
S
Central Vacuum System:
S
Surge Guard Transfer Switch:
S
Power Water Hose Reel:
S
Power Cord Reel:
S
100W Solar Panel:
S
Blind Spot Detection:
O
Technology Package (Wifi Ranger, Cell Booster, 265W Solar Panel, Collision Mitigation):
O
-
Chassis
Chassis Type:
FREIGHTLINER XCM
GVWR:
43600
GCWR:
58600
Rear Axle GAWR:
20000
Rear Tag GAWR:
10000
Front Axle GAWR:
13600
Hitch Rating:
15000
Independent Front Air Suspension:
S
60 Degree Wheel Cut:
S
Steerable Tag :
S
Rear suspension: V-Ride Air Suspension:
S
Front Brakes: Air Disc w/ABS:
S
Rear Brakes: Bendix drum brakes w/ABS:
S
15X5 Q+ Cam Pusher/drum Tag Brakes:
S
Custom Tuned Sachs Shocks:
S
Power assisted Steering:
S
Suspended pedals (FCCC):
S
Push Button Start (FCCC):
S
Auto Headlight (FCCC):
S
DriveTech w/Optiview Instrument Cluster (FCCC):
S
Engine Equipment
Cummins ISL9 450 HP w/1,250 lb-ft Torque:
S
Alternator- Delco Remy 160 AMP:
S
Allison 3000 MH 6-Speed Automatic transmission w/ Electronic Shift Control:
S
Chassis Battery 72-amp:
S
(2) 12V Heavy Duty Chassis Batteries:
S
Tires and Wheels
Front Tires :
275/80R 22.5H
Rear Tires:
275/80R 22.5H
Rear Tag Tries:
275/80R 22.5H
Front and Rear Aluminum Wheels:
S
Valve Stem Extensions:
S
Sizes
Wheelbase:
309"
Exterior Length:
44
Exterior Width:
102"
Exterior Height:
12'10"
Interior Height:
84"
Interior Width:
96"
Interior Storage (cu.ft.):
180
Basement Storage (cu.ft.):
157
Awning -Girard (Roof Mounted):
18'
# of Slideouts:
4
Capacities
Fuel (gal):
100
Fresh Water (gal):
105
Gray Waste Water (gal):
75
Black Waste Water (gal):
50
400D Aqua Hot:
S
Construction
Power Lock System Aluminum Welded - Interlocking Floor, Walls and Roof:
S
Dryseal Edge Coating for all Walls and Floors:
S
Vacu-Bond Constructed Roof, Sidewalls and Floor:
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):
S
High Density Polystyrine Insulated Sidewalls, Roof and Floor:
S
Quiet Cool Ducted A/C System:
S
Full Pass Through Basement Storage w/Composite Floor and Wall Construction:
S
Heated Fresh Water and Holding Tank Compartments:
S
Freedom Bridge Chassis Construction:
S
Steel Constructed Entry Step Box:
S
Electric Slide Out Systems:
S
Coated Steel Frame Chassis Construction:
S
Full Coverage Heavy Duty Undercoating:
S
CSA Build:
O
Exterior
4-Color Premium Full Body Paint:
S
Fiberglass Wheel Well Skirts:
S
One piece Molded Fiberglass Domed Roof:
S
Awning - Roof Mount Electric Patio Awning w/ LED lighting and Motion Sensor Retract:
S
Powered entrance awning w/LED lighting:
S
Slide Out Awning Toppers above all Slideouts:
S
Entry Door W/Radiused Upper, Deadbolt and Screen Door:
S
Acrylic Lighted Grab Handle at Entry Door:
S
Side Swing Aluminum Bus-Style Baggage Doors w/Chrome Handles:
S
Windows - Frameless Tinted Windows (Select Locations):
S
LED Patio Lights:
S
Porch light w/interior switch:
S
Automatic hydraulic leveling jacks:
S
Front, Side and Rear LED Clearance and Marker lighting:
S
Exterior Service Station - Includes: Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves:
S
Full-coach water filtration system:
S
Exterior Park Cable and Satellite Hookup:
S
7-Way Round Tow Connection:
S
Rear Ladder:
S
Full Length Rearguard w/Nameplate:
S
Front & Rear Mud flaps:
S
Rear Underhood Utility Light:
S
Unidirectional HD On-Air Antenna:
S
Basement Storage LED Lighting :
S
Heated holding tank compartment:
S
Basement Pass-Through Storage:
S
King Universal Stationary Satellite:
S
Undercarriage LED Lights:
S
Full Bay Slide Trays - 1st Bay Single 90" :
S
Roof Vent Rain Covers :
S
Exterior Entertainment Center :
S
Winegard In motion Satellite :
O
Satellite Delete:
O
Full Bay Slide Trays - 2nd Bay Single 90":
O
Exterior Freezer:
O
2nd Roof Mounted Awning :
O
Cab Exterior
Fiberglass Front Cap Assembly:
S
Fiberglass Rear Cap Assembly:
S
Fiberglass Sliding Generator Access:
S
Automotive One Piece Windshield:
S
Daytime Running Lights:
S
Tinted Slider Driver/Passenger Windows:
S
Fog Lamps:
S
Top Mount Automotive Style Windshield Wiper System:
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:
S
Lower front protective mask:
S
Blindspot Detection:
O
Cab Interior
Tag Axle Air Reduction System:
S
High Output Dash Air Conditioning and Heat:
S
Electronic Cruise Control:
S
Windshield Wipers with Delay:
S
Keyless Entry w/Remotes:
S
Switch for Power/Heated Chrome Mirrors:
S
Switch for Utility Service Compartment:
S
Driver Console w/ Lower Storage Bin:
S
Power Entry Door Lock w/Key FOB Control:
S
7" Color Backup Monitor:
S
Sirius/XM Satellite Radio Ready (Requires Subscription):
S
10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/WiFi:
S
Driver Seat w/Reclining Back, Swivel and 6-way Power Controls:
S
Passenger Seat w/Reclining Back, Swivel 6-way Power Controls & Power Footrest:
S
Seat Belts - 3 Point Driver & Passenger:
S
12V and USB Accessory Ports:
S
110-Volt AC Outlet at Dash and Passenger Area:
S
Automotive Style Wrap Around Dash:
S
Passenger Console w/Solid Surface Top:
S
Front Power Roller Shades and Blinds:
S
Driver/Passenger Side Manual Roller Shades and Blinds:
S
Stereo Switch Main/Auxiliary Power at Dash:
S
Additional Battery Disconnect Switch at Dash:
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries:
S
Map Lights:
S
Driver & Passenger Overhead Storage Cabinetry:
S
Electric Alert Horn:
S
Automatic Leveling Jacks Touchpad Controls:
S
Cabinet Front Overhead Lighting:
S
Power Drop-Down Hide-A-Loft Overhead Bunk:
O
Interior
Sofa w/Queen Bed & Ottoman(s):
S
Sofa w/Storage:
S
Power Motion Lounge:
O
Dual Recliners :
O
FS Dinette w/Credenza:
O
Facing Dinette Booth:
O
U-Shape Dinette:
S
Interior Flat Soft Touch Vinyl Ceiling:
S
Matte Finish Porcelain Tile Flooring Throughout:
S
Floor Heat for Living Area :
S
Full Extension Drawer Guides Throughout w/Latches:
S
Hidden Hinge Throughout:
S
Hardwood throughout:
S
Hardwood Ceiling Feature Trim w/Lighting:
S
Coordinating Window Treatments Throughout:
S
Manual Day/Night Roller Shades Throughout:
S
Safe-T-View Camera System:
S
110V/USB Ports Throughout :
S
Fantastic® Power Vent:
S
Energy Efficient LED Flush Mount Ceiling and Accent Lighting :
S
Side-By-Side Washer and Dryer :
S
Interior Entry
Power Entry Step Cover:
S
Solid Surface Entry Step w/LED Accent Lighting:
S
Metal Interior Grab Handle at Entry:
S
Entry Door Manual Roller Shades and Blind:
S
Automatic entrance steps:
S
Kitchen
Residential Refrigerator w/Exterior Ice & Water Dispenser:
S
2 Burner High Output Induction Electric Cooktop:
S
Stainless Steel Over the Range 1000W Convection Microwave :
S
Dishwasher :
S
Polished Solid Surface Galley Countertop w/lighting:
S
Shadow Box Glass Tile Backsplash w/window & shade:
S
Stainless Steel Farmhouse Sink:
S
Polished Solid Surface Sink Covers:
S
Residential Single Handle Faucet w/Pullout Sprayer :
S
Adjustable Shelves Throughout Kitchen:
S
Full Extension Drawer Guides w/ Latches:
S
Fantastic® Power Vent w/Wall Switch :
S
Waste Basket:
S
Pantry w/Full Hardwood Pull-outs:
S
Bedroom or Bunk Area
28" x 73" Bunk Beds w/Residential Mattress:
S
Designer Bedspread and Pillows w/Shams:
S
Headboard:
S
Remote Generator Start Switch:
S
Solid Surface Nightstand Tops:
S
Hardwood Raised Panel Doors:
S
Hardwood Cabinet Wardrobe Doors w/Mirrors:
S
Cedar Lined Rear Wardrobe Closet:
S
USB at Nightstands :
S
Individual Reading Lights Bed Oerhead:
S
Bathroom
Lavy Countertop w/Tile Backsplash:
S
Feature Lighting at Lavy Top:
S
Gemstone Undermount Lavy Sink:
S
Residential Chrome Faucet :
S
Deluxe Hardwood Medicine Cabinet w/ Mirror:
S
Hardwood Raised Panel Doors:
S
Tile Shower:
S
Glass Shower Door:
S
Shower Skylight:
S
Chrome Shower Head Assembly:
S
Porcelain Macerator Foot-flush Toilet w/Water Saver:
S
Hardwood Window Treatment:
S
Manual Night Roller Shade - Black :
S
Entertainment
LED TV (Bedroom):
S
LED TV (Front Overhead):
S
Pop-up LED TV (Living Area) :
S
Sound Bar (Living Area):
S
Blu-Ray player w/Remote:
S
Exterior Entertainment Center w/LED TV & Sound Bar w/Bluetooth®:
S
Electric & Utilities
Air Conditioner: (3) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear Heat Pump:
S
Aqua Hot 400D:
S
Firefly Multiplex Wiring:
S
Service: 50-amp, 120-volt Service Panel:
S
Converter: 60 AMP Power Converter:
S
Inverter: Single 2800W Pure Sine w/Remote:
S
Energy Management System (EMS) w/Soft Start:
S
Neutral Loss Protection:
S
Generator: 8kW Onan Quiet Diesel:
S
Generator Auto Changeover:
S
Auto Gen Start:
S
Batteries: (6) 6V Deep Cycle House Batteries:
S
Water Pump: 12V 3GPM High Capacity Water Pump:
S
Water Filtration System (Whole Coach):
S
Black Water Tank Flush:
S
Gravity Water Fill DS/RS:
S
Cable TV/satellite hookup:
S
Toilet Tank San-T-Flush System:
S
Touch Sensor Tank Monitoring and Battery readout:
S
CO & Smoke detectors, Fire Extinguisher:
S
Exterior GFCI receptacle in Exterior Storage:
S
Central Vacuum System:
S
Surge Guard Transfer Switch:
S
Power Water Hose Reel:
S
Power Cord Reel:
S
100W Solar Panel:
S
BlindSpot Detection:
O
Technology Package (Wifi Ranger, Cell Booster, 265W Solar Panel, Collision Mitigation):
O
-
Chassis
Chassis Type:
FREIGHTLINER XCM
GVWR:
43600
GCWR:
58600
Rear Axle GAWR:
20000
Rear Tag GAWR:
10000
Front Axle GAWR:
13600
Hitch Rating:
15000
Independent Front Air Suspension:
S
60 Degree Wheel Cut:
S
Steerable Tag :
S
Rear suspension: V-Ride Air Suspension:
S
Front Brakes: Air Disc w/ABS:
S
Rear Brakes: Bendix drum brakes w/ABS:
S
15X5 Q+ Cam Pusher/drum Tag Brakes:
S
Custom Tuned Sachs Shocks:
S
Power assisted Steering:
S
Suspended pedals (FCCC):
S
Push Button Start (FCCC):
S
Auto Headlight (FCCC):
S
DriveTech w/Optiview Instrument Cluster (FCCC):
S
Engine Equipment
Cummins ISL9 450 HP w/1,250 lb-ft Torque:
S
Alternator- Delco Remy 160 AMP:
S
Allison 3000 MH 6-Speed Automatic transmission w/ Electronic Shift Control:
S
Chassis Battery 72-amp:
S
(2) 12V Heavy Duty Chassis Batteries:
S
Tires and Wheels
Front Tires :
275/80R 22.5H
Rear Tires:
275/80R 22.5H
Rear Tag Tries:
275/80R 22.5H
Front and Rear Aluminum Wheels:
S
Valve Stem Extensions:
S
Sizes
Wheelbase:
309'
Exterior Length:
44
Exterior Width:
102"
Exterior Height:
12'10"
Interior Height:
84"
Interior Width:
96"
Interior Storage (cu.ft.):
192
Basement Storage (cu.ft.):
157
Awning -Girard (Roof Mounted):
18'
# of Slideouts:
4
Capacities
Fuel (gal):
100
Fresh Water (gal):
105
Gray Waste Water (gal):
75
Black Waste Water (gal):
50
400D Aqua Hot:
S
Construction
Power Lock System Aluminum Welded - Interlocking Floor, Walls and Roof:
S
Dryseal Edge Coating for all Walls and Floors:
S
Vacu-Bond Constructed Roof, Sidewalls and Floor:
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):
S
High Density Polystyrine Insulated Sidewalls, Roof and Floor:
S
Quiet Cool Ducted A/C System:
S
Full Pass Through Basement Storage w/Composite Floor and Wall Construction:
S
Heated Fresh Water and Holding Tank Compartments:
S
Freedom Bridge Chassis Construction:
S
Steel Constructed Entry Step Box:
S
Electric Slide Out Systems:
S
Coated Steel Frame Chassis Construction:
S
Full Coverage Heavy Duty Undercoating:
S
CSA Build:
O
Exterior
4-Color Premium Full Body Paint:
S
Fiberglass Wheel Well Skirts:
S
One piece Molded Fiberglass Domed Roof:
S
Awning - Roof Mount Electric Patio Awning w/ LED lighting and Motion Sensor Retract:
S
Powered entrance awning w/LED lighting:
S
Slide Out Awning Toppers above all Slideouts:
S
Entry Door w/Radiused Upper, Deadbolt and Screen Door:
S
Acrylic Lighted Grab Handle at Entry Door:
S
Side Swing Aluminum Bus-Style Baggage Doors w/Chrome Handles:
S
Windows - Frameless Tinted Windows (Select Locations):
S
LED Patio Lights:
S
Porch light w/interior switch:
S
Automatic hydraulic leveling jacks:
S
Front, Side and Rear LED Clearance and Marker lighting:
S
Exterior Service Station - Includes: Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves:
S
Full-coach Water Filtration System:
S
Exterior Park Cable and Satellite Hookup:
S
7-Way Round Tow Connection:
S
Rear Ladder:
S
Full Length Rearguard w/Nameplate:
S
Front & Rear Mud Flaps:
S
Rear Underhood Utility Light:
S
Unidirectional HD On-Air Antenna:
S
Basement Storage LED Lighting :
S
Heated holding tank compartment:
S
Basement Pass-Through Storage:
S
King Universal Stationary Satellite:
S
Undercarriage LED Lights:
S
Full Bay Slide Trays - 1st Bay Single 90" :
S
Roof Vent Rain Covers :
S
Exterior Entertainment Center :
S
Winegard In motion Satellite :
O
Satellite Delete:
O
Full Bay Slide Trays - 2nd Bay Single 90":
O
Exterior Freezer:
O
2nd Roof Mounted Awning :
O
Cab Exterior
Fiberglass Front Cap Assembly:
S
Fiberglass Rear Cap Assembly:
S
Fiberglass Sliding Generator Access:
S
Automotive One Piece Windshield:
S
Daytime Running Lights:
S
Tinted Slider Driver/Passenger Windows:
S
Fog Lamps:
S
Top Mount Automotive Style Windshield Wiper System:
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:
S
Lower Front Protective Mask:
S
Blind Spot Detection:
O
Cab Interior
Tag Axle Air Reduction System:
S
High Output Dash Air Conditioning and Heat:
S
Electronic Cruise Control:
S
Windshield Wipers with Delay:
S
Keyless entry w/remotes:
S
Switch for Power/Heated Chrome Mirrors:
S
Switch for Utility Service Compartment:
S
Driver Console w/ Lower Storage Bin:
S
Power Entry Door Lock w/Key FOB Control:
S
7" Color Backup Monitor:
S
Sirius/XM Satellite Radio Ready (Requires Subscription):
S
10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/WiFi:
S
Driver Seat w/Reclining Back, Swivel and 6-way Power Controls:
S
Passenger Seat w/Reclining Back, Swivel 6-way Power Controls & Power Footrest:
S
Seat Belts - 3 Point Driver & Passenger:
S
12V and USB accessory ports:
S
110-Volt AC Outlet at Dash and Passenger Area:
S
Automotive Style Wrap Around Dash:
S
Passenger Console w/Solid Surface Top:
S
Front Power Roller Shades and Blinds:
S
Driver/Passenger Side Manual Roller Shades and Blinds:
S
Stereo Switch Main/Auxiliary Power at Dash:
S
Additional Battery Disconnect Switch at Dash:
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries:
S
Map lights:
S
Driver & Passenger Overhead Storage Cabinetry:
S
Electric Alert Horn:
S
Automatic Leveling Jacks Touchpad Controls:
S
Cabinet Front Overhead Lighting:
S
Power Drop-Down Hide-A-Loft Overhead Bunk:
O
Interior
Sofa w/Queen Bed & Ottoman(s):
S
Sofa w/Storage:
S
Power Motion Lounge:
O
Dual Recliners :
O
Free Standng Dinette w/Credenza:
O
Facing Dinette Booth:
O
U-Shape Dinette:
S
Interior Flat Soft Touch Vinyl Ceiling:
S
Mat Finish Porcelain Tile Flooring Throughout:
S
Floor Heat for Living Area :
S
Full Extension Drawer Guides Throughout w/ Latches:
S
Hidden Hinge Throughout:
S
Hardwood Throughout:
S
Hardwood Ceiling Feature Trim w/Lighting:
S
Coordinating Window Treatments Throughout:
S
Manual Day/Night Roller Shades Throughout:
S
Safe-T-View Camera System:
S
110V/USB Ports Throughout :
S
Fantastic® Power Vent:
S
Energy Efficient LED Flush Mount Ceiling and Accent Lighting :
S
Stackable Washer and Dryer :
S
Interior Entry
Power Entry Step Cover:
S
Solid Surface Entry Step w/LED Accent Lighting:
S
Metal Interior Grab Handle at Entry:
S
Entry Door Manual Roller Shades and Blind:
S
Automatic Entrance Steps:
S
Kitchen
Residential Refrigerator w/Exterior Ice & Water Dispenser:
S
2 Burner High Output Induction Electric Cooktop:
S
Stainless Steel Over the Range 1000W Convection Microwave :
S
Dishwasher :
S
Polished Solid Surface Galley Countertop w/lighting:
S
Shadow Box Glass Tile Backsplash w/window & shade:
S
Stainless Steel Farmhouse Sink:
S
Polished Solid Surface Sink Covers:
S
Residential Single Handle Faucet w/ pullout sprayer :
S
Adjustable Shelves Throughout Kitchen:
S
Full Extension Drawer Guides w/ Latches:
S
Fantastic® Power Vent w/Wall Switch :
S
Waste Basket:
S
Pantry w/Full Hardwood pull-outs:
S
Bedroom or Bunk Area
Designer Bedspread and Pillows w/Shams:
S
Headboard:
S
Remote Generator Start Switch:
S
Solid Surface Nightstand Tops:
S
Hardwood Raised Panel Doors:
S
Hardwood Cabinet Wardrobe Doors w/Mirrors:
S
USB at Nightstands :
S
Individual Reading Lights Bed Overhead:
S
Bathroom
Lavy Countertop w/Tile Backsplash:
S
Feature Lighting at Lavy Top:
S
Gemstone Undermount Lavy Sink:
S
Residential Chrome Faucet :
S
Deluxe Hardwood Medicine Cabinet w/ Mirror:
S
Hardwood Raised Panel Doors:
S
Tile Shower:
S
Glass Shower Door:
S
Shower Skylight:
S
Chrome Shower Head Assembly:
S
Porcelain Macerator Foot-flush Toilet w/Water Saver:
S
Hardwood Window treatment:
S
Manual Night Roller Shade - Black :
S
Towel Ring(s) and Toilet Paper Holder :
NA
Entertainment
LED TV (Bedroom):
S
LED TV (Front Overhead):
S
Pop-up LED TV (Living Area) :
S
Sound Bar (Living Area):
S
Blu-Ray player w/Remote:
S
Exterior Entertainment Center w/LED TV & Sound Bar w/Bluetooth®:
S
Electric & Utilities
Air Conditioner: (3) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear Heat Pump:
S
Aqua Hot 400D:
S
Firefly Multiplex Wiring:
S
Service: 50-amp, 120-volt Service Panel:
S
Converter: 60 AMP Power Converter:
S
Inverter: Single 2800W Pure Sine w/Remote:
S
Energy Management System (EMS) w/Soft Start:
S
Neutral Loss Protection:
S
Generator: 8kW Onan Quiet Diesel:
S
Generator Auto Changeover:
S
Auto Gen Start:
S
Batteries: (6) 6V Deep Cycle House Batteries:
S
Water Pump: 12V 3GPM High Capacity Water Pump:
S
Water Filtration System (Whole Coach):
S
Black Water Tank Flush:
S
Gravity Water Fill DS/RS:
S
Cable TV/Satellite Hookup:
S
Toilet Tank San-T-Flush System:
S
Touch Sensor Tank Monitoring and Battery Readout:
S
CO & Smoke Detectors, Fire Extinguisher:
S
Exterior GFCI Receptacle in Exterior Storage:
S
Central Vacuum System:
S
Surge Guard Transfer Switch:
S
Power Water Hose Reel:
S
Power Cord Reel:
S
100W Solar Panel:
S
Blind Spot Detection:
O
Technology Package (Wifi Ranger, Cell Booster, 265W Solar Panel, Collision Mitigation):
O
-
Chassis
Chassis Type:
FREIGHTLINER XCM
GVWR:
43600
GCWR:
58600
Rear Axle GAWR:
20000
Rear Tag GAWR:
10000
Front Axle GAWR:
13600
Hitch Rating:
15000
Independent Front Air Suspension:
S
60 Degree Wheel Cut:
S
Steerable Tag :
S
Rear suspension: V-Ride Air Suspension:
S
Front Brakes: Air Disc w/ABS:
S
Rear Brakes: Bendix drum brakes w/ABS:
S
15X5 Q+ Cam Pusher/drum Tag Brakes:
S
Custom Tuned Sachs Shocks:
S
Power assisted Steering:
S
Suspended pedals (FCCC):
S
Push Button Start (FCCC):
S
Auto Headlight (FCCC):
S
DriveTech w/Optiview Instrument Cluster (FCCC):
S
Engine Equipment
Cummins ISL9 380 HP / 1,150 lb-ft Torque:
NA
Cummins ISL9 450 HP w/1,250 lb-ft Torque:
S
Alternator- Delco Remy 160 AMP:
S
Allison 3000 MH 6-Speed Automatic transmission w/ Electronic Shift Control:
S
Chassis Battery 72-amp:
S
(2) 12V Heavy Duty Chassis Batteries:
S
Tires and Wheels
Front Tires :
275/80R 22.5H
Rear Tires:
275/80R 22.5H
Rear Tag Tries:
275/80R 22.5H
Front and Rear Aluminum Wheels:
S
Valve Stem Extensions:
S
Sizes
Wheelbase:
309"
Exterior Length:
44
Exterior Width:
102"
Exterior Height:
12'10"
Interior Height:
84"
Interior Width:
96"
Interior Storage (cu.ft.):
177
Basement Storage (cu.ft.):
152
Awning -Girard (Roof Mounted):
18'
# of Slideouts:
4
Capacities
Fuel (gal):
100
Fresh Water (gal):
105
Gray Waste Water (gal):
75
Black Waste Water (gal):
50
400D Aqua Hot:
S
Construction
Power Lock System Aluminum Welded - Interlocking Floor, Walls and Roof:
S
Dryseal Edge Coating for all Walls and Floors:
S
Vacu-Bond Constructed Roof, Sidewalls and Floor:
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):
S
High Density Polystyrine Insulated Sidewalls, Roof and Floor:
S
Quiet Cool Ducted A/C System:
S
Full Pass Through Basement Storage w/Composite Floor and Wall Construction:
S
Heated Fresh Water and Holding Tank Compartments:
S
Freedom Bridge Chassis Construction:
S
Steel Constructed Entry Step Box:
S
Electric Slide Out Systems:
S
Coated Steel Frame Chassis Construction:
S
Full Coverage Heavy Duty Undercoating:
S
CSA Build:
O
Exterior
4-Color Premium Full Body Paint:
S
Fiberglass Wheel Well Skirts:
S
One piece Molded Fiberglass Domed Roof:
S
Awning - Roof Mount Electric Patio Awning w/ LED lighting and Motion Sensor Retract:
S
Powered entrance awning w/LED lighting:
S
Slide Out Awning Toppers above all Slideouts:
S
Entry Door W/Radiused Upper, Deadbolt and Screen Door:
S
Acrylic Lighted Grab Handle at Entry Door:
S
Side Swing Aluminum Bus-Style Baggage Doors w/Chrome Handles:
S
Windows - Frameless Tinted Windows (Select Locations):
S
LED Patio Lights:
S
Porch Light w/Interior Switch:
S
Automatic Hydraulic Leveling Jacks:
S
Front, Side and Rear LED Clearance and Marker lighting:
S
Exterior Service Station - Includes: Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder & Drainage Valves:
S
Full-coach Water Filtration System:
S
Exterior Park Cable and Satellite Hookup:
S
7-Way Round Tow Connection:
S
Rear Ladder:
S
Full Length Rearguard w/Nameplate:
S
Front & Rear Mud flaps:
S
Rear Underhood Utility Light:
S
Unidirectional HD On-Air Antenna:
S
Basement Storage LED Lighting :
S
Heated holding tank compartment:
S
Basement Pass-Through Storage:
S
King Universal Stationary Satellite:
S
Undercarriage LED Lights:
S
Full Bay Slide Trays - 1st Bay Single 90" :
S
Roof Vent Rain Covers :
S
Exterior Entertainment Center :
S
Winegard In motion Satellite :
O
Satellite Delete:
O
Full Bay SlideTrays - 2nd Bay Single 90":
O
Exterior Freezer:
O
2nd Roof Mounted Awning :
O
Cab Exterior
Fiberglass Front Cap Assembly:
S
Fiberglass Rear Cap Assembly:
S
Fiberglass Sliding Generator Access:
S
Automotive One-Piece Windshield:
S
Daytime Running Lights:
S
Tinted Slider Driver/Passenger Windows:
S
Fog Lamps:
S
Top Mount Automotive Style Windshield Wiper System:
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Chrome:
S
Lower Front Protective Mask:
S
Blindspot Detection:
O
Cab Interior
Tag Axle Air Reduction System:
S
High Output Dash Air Conditioning and Heat:
S
Electronic Cruise Control:
S
Windshield Wipers with Delay:
S
Keyless entry w/remotes:
S
Switch for Power/Heated Chrome Mirrors:
S
Switch for Utility Service Compartment:
S
Driver Console w/ Lower Storage Bin:
S
Power Entry Door Lock w/Key FOB Control:
S
7" Color Backup Monitor:
S
Sirius/XM Satellite Radio Ready (Requires Subscription):
S
10.2" Magnadyne Radio Touch Screen w/AM/FM/CD/DVD/Bluetooth/Navigation/APP Store/WiFi:
S
Driver Seat w/Reclining Back, Swivel and 6-way Power Controls:
S
Passenger Seat w/Reclining Back, Swivel 6-way Power Controls & Power Footrest:
S
Seat Belts - 3 Point Driver & Passenger:
S
12V and USB Accessory Ports:
S
110-Volt AC Outlet at Dash and Passenger Area:
S
Automotive Style Wrap Around Dash:
S
Passenger Console w/Solid Surface Top:
S
Front Power Roller Shades and Blinds:
S
Driver/Passenger Side Manual Roller Shades and Blinds:
S
Stereo Switch Main/Auxiliary Power at Dash:
S
Additional Battery Disconnect Switch at Dash:
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries:
S
Map Lights:
S
Driver & Passenger Overhead Storage Cabinetry:
S
Electric Alert Horn:
S
Automatic Leveling Jacks Touchpad Controls:
S
Cabinet Front Overhead Lighting:
S
Power Drop-Down Hide-A-Loft Overhead Bunk:
O
Interior
Power Motion Lounge w/Full Bed:
S
FS Dinette w/Credenza:
S
U-Shape Dinette:
O
Electric Fireplace :
S
Interior Flat Soft Touch Vinyl Ceiling:
S
Mat Finish Porcelain Tile Flooring Throughout:
S
Floor Heat for Living Area :
S
Full Extension Drawer Guides Throughout w/ Latches:
S
Hidden Hinge Throughout:
S
Hardwood throughout:
S
Hardwood Ceiling Feature Trim w/Lighting:
S
Coordinating Window Treatments Throughout:
S
Manual Day/Night Roller Shades Throughout:
S
Safe-T-View Camera System:
S
110V/USB Ports Throughout :
S
Fantastic® Power Vent:
S
Energy Efficient LED Flush Mount Ceiling and Accent Lighting :
S
Side-By-Side Washer and Dryer :
S
Interior Entry
Power Entry Step Cover:
S
Solid Surface Entry Step w/LED Accent Lighting:
S
Metal Interior Grab Handle at Entry:
S
Entry Door Manual Roller Shades and Blind:
S
Automatic entrance steps:
S
Kitchen
Residential Refrigerator w/Exterior Ice & Water Dispenser:
S
2 Burner High Output Induction Electric Cooktop:
S
Stainless Steel Over the Range 1000W Convection Microwave :
S
Dishwasher :
S
Polished Solid Surface Galley Countertop w/lighting:
S
Shadow Box Glass Tile Backsplash w/window & shade:
S
Stainless Steel Farmhouse Sink:
S
Polished Solid Surface Sink Covers:
S
Residential Single Handle Faucet w/ pullout sprayer :
S
Adjustable Shelves Throughout Kitchen:
S
Full Extension Drawer Guides w/ Latches:
S
Fantastic® Power Vent w/Wall Switch :
S
Waste Basket:
S
Pantry w/Full Hardwood Pull-outs:
S
Bedroom or Bunk Area
Designer Bedspread and Pillows w/Shams:
S
Headboard:
S
Remote Generator Start Switch:
S
Solid Surface Nightstand Tops:
S
Hardwood Raised Panel Doors:
S
Hardwood Cabinet Wardrobe Doors w/Mirrors:
S
USB at Nightstands :
S
Individual Reading Lights Bed Overhead:
S
Bathroom
Lavy Countertop w/Tile Backsplash:
S
Feature Lighting at Lavy Top:
S
Gemstone Undermount Lavy Sink:
S
Residential Chrome Faucet :
S
Deluxe Hardwood Medicine Cabinet w/ Mirror:
S
Hardwood Raised Panel Doors:
S
Tile Shower:
S
Glass Shower Door:
S
Shower Skylight:
S
Chrome Shower Head Assembly:
S
Porcelain Macerator Foot-flush Toilet w/Water Saver:
S
Hardwood Window Treatment:
S
Manual Night Roller Shade - Black :
S
Entertainment
LED TV (Bedroom):
S
LED TV (Living Area):
S
LED TV (Front Overhead):
S
Sound Bar (Living Area):
S
Blu-Ray player w/Remote:
S
Exterior Entertainment Center w/LED TV & Sound Bar w/Bluetooth®:
S
Electric & Utilities
Air Conditioner: (3) Roof Mount High Efficiency Ducted 15,000 BTU w/Chill Grill and Rear Heat Pump:
S
Aqua Hot 400D:
S
Firefly Multiplex Wiring:
S
Service: 50-amp, 120-volt Service Panel:
S
Converter: 60 AMP Power Converter:
S
Inverter: Single 2800W Pure Sine w/Remote:
S
Energy Management System (EMS) w/Soft Start:
S
Neutral Loss Protection:
S
Generator: 8kW Onan Quiet Diesel:
S
Generator Auto Changeover:
S
Auto Gen Start:
S
Batteries: (6) 6V Deep Cycle House Batteries:
S
Water Pump: 12V 3GPM High Capacity Water Pump:
S
Water Filtration System (Whole Coach):
S
Black Water Tank Flush:
S
Gravity Water Fill DS/RS:
S
Cable TV/satellite Hookup:
S
Toilet Tank San-T-Flush System:
S
Touch Sensor Tank Monitoring and Battery Readout:
S
CO & Smoke Detectors, Fire Extinguisher:
S
Exterior GFCI receptacle in Exterior Storage:
S
Central Vacuum System:
S
Surge Guard Transfer Switch:
S
Power Water Hose Reel:
S
Power Cord Reel:
S
100W Solar Panel:
S
Blindspot Detection:
O
Technology Package (Wifi Ranger, Cell Booster, 265W Solar Panel, Collision Mitigation):
O
