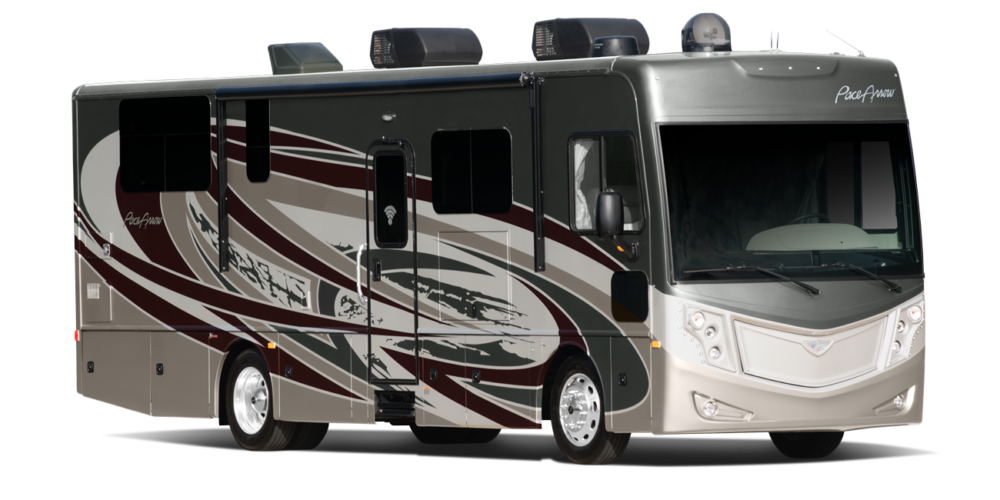

Pace Arrow

Bringing group fun on the road.

Take your world everywhere it needs to go in the Pace Arrow. Starting at just 33-feet, this compact Class A diesel makes the most of the space it offers. Most of our five well-thought-out floorplans sleep seven people, and one can even accommodate eight. Don’t worry about extra gear that comes with added guests—with the XCS chassis from Freightliner Custom Chassis, and up to 340HP Cummins engine, it can tow up to 10,000-pounds.

Gadgets and technology abound in the Pace Arrow. Control your whole home with the Illumplex System with touch screen and app controls. Enjoy the outdoors in comfort under the electric awning, complete with lightning and wind sensor retract. And keep everyone entertained with an exterior entertainment center, complete with a 50-inch TV and Bluetooth® soundbar. New options for 2021 include a power passenger seat with power footrest and a central vacuum system.

More stuff? More people? Pace Arrow means you don’t have to compromise.

Chassis

Chassis:

FREIGHTLINER XCS

GVWR:

26000

GCWR:

30000

Rear Axle GAWR:

17500

Front Axle GAWR:

10500

Hitch Rating:

10000

Front suspension: Neway Air Suspension:

S

55 Degree Wheel Cut:

S

Rear suspension: Neway Air Suspension:

S

Front Brakes: Full Air 15x4 in Drum Style S-Cam w/ABS:

S

Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ABS:

S

Tuned Sachs Shocks:

S

Power assisted Steering:

S

Front Tires :

255/70R22.5

Rear Tires:

255/70R22.6

Front and Rear Aluminum Wheels:

S

Electronic dash (FCCC):

S

Engine Equipment

Cummins ISB Turbocharged 6.7L, 300 HP w/660 ft. lbs. Torque:

S

Cummins ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque:

NA

Engine Braking: Integral w/Cummins Variable Geometry Turbo:

S

Delco Remy 160 Amp Alternator:

S

Allison 2100 MH 6-Speed Automatic transmission w/Electronic Shift Control:

S

Allison 2500 MH 6-Speed Automatic transmission w/Electronic Shift Control:

NA

Cast Iron and Stainless Steel Exhaust:

S

Chassis Battery 72-amp:

S

(2) 6V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

208"

Exterior Length:

33'11"

Exterior Width:

102"

Exterior Height:

12'2"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

140

Exterior Storage (cu.ft.):

133

Awning Size:

17'

2nd Awning Size:

NA

# of Slideouts:

2

Capacities

Fuel (gal):

90

Fresh Water (gal):

77

Gray Waste Water (gal):

60

Black Waste Water (gal):

32

6 Gallon Quick Recovery Water Heater (Gas/Electric):

6

LP (gal) (WC):

28.6

Tankless Water Heater (Girard):

O

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Sidewalls and Roof:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

Vacu-Bond Aluminum Framed Constructed Floor :

S

R-8 Insulated Sidewalls, R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Composite Floor and Wall Construction w/Lighting:

S

Basement Storage Lighting w/Master Switch Inside Entry:

S

Heated Fresh Water and Holding Tank Compartments:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Powder and Liquid Coated Steel Frame Chassis Construction:

S

Rotocast Molded Durable Easy to Clean Service Compartment:

S

Full Coverage Heavy Duty Undercoating:

S

Exterior

Aerodynamic Fiberglass Cap with Automotive Headlighting:

S

Hood Insert and Seamless Mounting:

S

Rear Fiberglass Cap with Fiberglass Rear Engine Access, Automotive Lighting and Grill:

S

Fiberglass Wheel Well Trims:

S

TPO Roof:

S

4-Color Premier Full Body Paint w/Front Clear Mask:

S

Electric Patio Awning w/LED lighting and Wind Sensor Retract:

S

Slide Out Awning Toppers above all Slideouts:

S

Radius door w/screendoor, w/latch, deadbolt lock and Frameless Window:

S

Acrylic Grab Handle at Entry Door:

S

Exterior Power Entry Step :

S

Side Swing Aluminum Bus-Style Baggage doors :

S

Large Dark Tinted Frameless Windows :

S

LED Patio light:

S

Front, Side and Rear LED Clearance and Marker lighting:

S

Exterior Service Station w/Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder and Drainage Valves:

S

Exterior Park Cable and Satellite Hookup:

S

Hitch - Capacity of 10,000 # w/7-Way Round Tow Connection:

S

Underhood Utility Light:

S

Unidirectional King Controls Jack Antenna:

S

Battery disconnect:

S

Metal Interior Grab Handle at Entry:

S

Auto Leveling Jacks Control:

S

Entry Door Manual Roller Shade:

S

Satellite Ready:

S

King Satellite to the Universal satellite w/o receivers:

O

Roof Vent Rain Covers:

S

Solar Panel Prep:

S

Cab Exterior

Automotive One Piece Windshield:

S

Daytime Running Lights:

S

Remote Power/Heated Mirrors w/Turn Sig-ls and Side Cameras - Black:

S

Tinted Frameless Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Cab Interior

Black instrument gauges w/electronic information center:

S

High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers with Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt and Telescoping Column:

S

Driver Console w/Lower Storage Bin:

S

6" Mobile Vision Color Monitor for Side and Rear Cameras:

S

Pioneer Touch Screen Radio w/AM/FM/CD/DVD/Bluetooth:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Reclining Back, Swivel and 6-way Manual Footrest:

S

Passenger Chair w/Reclining Back, Swivel and 6-way Power Controls and Footrest:

O

3 Point Driver & Passenger Seat Belts w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest:

S

Driver/Passenger Cup Holders :

S

Front Power Roller Shade:

S

Driver/Passenger Pedestal Table:

S

Privacy Curtains for Driver/Passenger Windows:

S

Radio Switch Auxiliary Power at Dash:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Premium Radio Upgrade - Kenwood:

O

Interior

66" Love Seat w/Storage:

S

80" Jackknife Sofa w/Footrests:

NA

58" Loveseat w/Storage:

NA

70" Sofa Sleep w/Full Bed:

NA

66" Restassured w/Detachable Arms:

O

Sofa - Theater Seating w/Foldout Loveseat:

NA

Sofa - Theater Seating w/70" Motion Power Lounger:

NA

66" Motion Power Lounger:

O

70" Motion Power Lounger:

NA

80" Motion Power Lounger:

NA

Booth Dinette:

S

Surf-X Dinette Tops:

S

Jackknife Facing Dinette:

NA

Drop Down Queen Bed:

O

Electric Fireplace:

S

Interior Flat Soft Touch Vinyl Ceiling:

S

Composite Tile Flooring:

S

Composite Tile Flooring in Silde:

S

Hidden Cabinet Door Hinges Throughout:

S

Solid Wood Raised Panel Cabinet Doors Upper & Lower:

S

Solid Wood Drawer Fronts:

S

Fabric Valances:

S

Solid Wood Slide Trims :

S

Manual Day/Night Roller Shades :

S

Energy Efficient LED 3" Puck Flush Mount Ceiling and Under Cabinet Lighting:

S

Interior Décor Choices :

4

Wood Color Choices:

4

Interior Entry

30" Wide Entry Door:

S

Entry Step w/LED Accent Lighting:

S

Battery disconnect:

S

Metal Interior Grab Handle at Entry:

S

Kitchen

Refrigerator -18.7 cu.ft. Residential, Bottom Freezer Stainless Steel:

NA

Refrigerator -19 cu.ft. Residential Stainless Steel:

S

2-Burner Recessed Induction Cooktop:

S

Stainless Steel Over the Range Convection Microwave:

S

Solid Surface Galley Countertop:

S

Tile Backsplash:

S

Shadow Box Glass Tile Backsplash w/window & shade:

NA

Deep Double Bowl Undermount Stainless Steel Sink:

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/Pullout Sprayer :

S

Adjustable Shelves Throughout:

S

Full Extension Drawer Guides w/Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Bedroom or Bunk Area

Queen Size Bed w/Serenity Memory Foam Mattress:

S

King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head :

NA

Queen Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head :

NA

Bunk Beds :

NA

Designer Bedspread, Pillow Shams & Pillows:

S

Coordinating Fabric Window Treatments and Lambrequins:

S

Surf-X Nightstand Tops:

S

Solid Wood Nightstand Tops:

NA

Electric Fireplace:

S

Inline Washer & Dryer:

NA

Side-by-Side Washer & Dryer:

NA

Combo Washer/Dryer:

O

C-pap prep in bedroom overhead :

S

Bathroom

Surf-X Lavy Countertop & Surf-X Backsplash :

S

Residential Brushed Nickel Double Handle Faucet:

S

Deluxe Hardwood Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar,Soap Dish and Matching Single Valve Faucet:

S

Macerator Toilet:

S

Porcelain Standard Toilet:

NA

Fantastic® Power Vent w/Wall Switch :

S

Towel Rings :

S

Entertainment

LG 32″ LED TV (Bedroom):

S

LG 39″ LED TV (Living Area):

S

LG 50″ LED TV (Living Area - Televator):

NA

LG 39″ LED TV (Bedroom Area - Televator):

S

HDMI Video Distribution:

S

Bluetooth Soundbar:

S

Exterior Entertainment Center w/50" LED TV and Bluetooth Soundbar:

S

Electric & Utilities

Technology Package, WiFi Ranger SkyPro w/LTE and GPS in Tech Package, Cell Booster, 265w Solar Panel, Upgraded Kenwood Radio, Mobile Eye Collision Avoidence Camera:

O

Dual-Roof Mount High Efficiency Ducted 15,000-BTU AC Units w/Chill Grill & Rear Heat Pump:

S

25,000/20,000 BTU Furnace :

S

30,000/20,000 BTU Furnace :

NA

Service: 50-amp:

S

Converter: 60 AMP Power Converter:

S

Inverter: Single 2000W Pure Sine:

S

Nuetral Loss Protection:

S

Generator: 6kW Onan Quiet Diesel:

S

Auto Gen Start:

S

(4) 6V Aux Batteries:

S

Master Battery Disconnect Switch :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Purification System (Whole Coach):

S

Exterior Shower :

S

Cable TV/Satellite Hookup:

S

Toilet Tank San-T-Flush System:

S

Multiplex Wiring Control System w/Touch Screen and App Control:

S

LP/CO Smoke Detectors Combo, Fire Extinguisher:

S

Exterior GFCI Receptacle in Exterior Storage:

S

Central Vacuum System:

O

Solar Prep on Roof:

S
Chassis

Chassis:

FREIGHTLINER XCS

GVWR:

29500

GCWR:

33000

Rear Axle GAWR:

19000

Front Axle GAWR:

10500

Hitch Rating:

10000

Front suspension: Neway Air Suspension:

S

55 Degree Wheel Cut:

S

Rear suspension: Neway Air Suspension:

S

Front Brakes: Full Air 15x4 in Drum Style S-Cam w/ABS:

S

Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ABS:

S

Tuned Sachs Shocks:

S

Power assisted Steering:

S

Front Tires :

255/70R22.5

Rear Tires:

255/70R22.6

Front and Rear Aluminum Wheels:

S

Electronic dash (FCCC):

S

Engine Equipment

Cummins ISB Turbocharged 6.7L, 300 HP w/660 ft. lbs. Torque:

NA

Cummins ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque:

S

Engine Braking: Integral w/Cummins Variable Geometry Turbo:

S

Delco Remy 160 Amp Alternator:

S

Allison 2100 MH 6-Speed Automatic transmission w/Electronic Shift Control:

NA

Allison 2500 MH 6-Speed Automatic transmission w/Electronic Shift Control:

S

Cast Iron and Stainless Steel Exhaust:

S

Chassis Battery 72-amp:

S

(2) 6V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

252"

Exterior Length:

37"7"

Exterior Width:

102"

Exterior Height:

12'2"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

144

Exterior Storage (cu.ft.):

112

Awning Size:

14'

2nd Awning Size:

NA

# of Slideouts:

4

Capacities

Fuel (gal):

90

Fresh Water (gal):

100

Gray Waste Water (gal):

60

Black Waste Water (gal):

32

6 Gallon Quick Recovery Water Heater (Gas/Electric):

6

LP (gal) (WC):

28.6

Tankless Water Heater (Girard):

O

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Sidewalls and Roof:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

Vacu-Bond Aluminum Framed Constructed Floor :

S

R-8 Insulated Sidewalls, R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Composite Floor and Wall Construction w/Lighting:

S

Basement Storage Lighting w/Master Switch Inside Entry:

S

Heated Fresh Water and Holding Tank Compartments:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Powder and Liquid Coated Steel Frame Chassis Construction:

S

Rotocast Molded Durable Easy to Clean Service Compartment:

S

Full Coverage Heavy Duty Undercoating:

S

Exterior

Aerodynamic Fiberglass Cap with Automotive Headlighting:

S

Hood Insert and Seamless Mounting:

S

Rear Fiberglass Cap with Fiberglass Rear Engine Access, Automotive Lighting and Grill:

S

Fiberglass Wheel Well Trims:

S

TPO Roof:

S

4-Color Premier Full Body Paint w/Front Clear Mask:

S

Electric Patio Awning w/LED lighting and Wind Sensor Retract:

S

Slide Out Awning Toppers above all Slideouts:

S

Radius door w/screendoor, w/latch, deadbolt lock and Frameless Window:

S

Acrylic Grab Handle at Entry Door:

S

Exterior Power Entry Step :

S

Side Swing Aluminum Bus-Style Baggage doors :

S

Large Dark Tinted Frameless Windows :

S

LED Patio light:

S

Front, Side and Rear LED Clearance and Marker lighting:

S

Exterior Service Station w/Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder and Drainage Valves:

S

Exterior Park Cable and Satellite Hookup:

S

Hitch - Capacity of 10,000 # w/7-Way Round Tow Connection:

S

Underhood Utility Light:

S

Unidirectional King Controls Jack Antenna:

S

Battery disconnect:

S

Metal Interior Grab Handle at Entry:

S

Auto Leveling Jacks Control:

S

Entry Door Manual Roller Shade:

S

Satellite Ready:

S

King Satellite to the Universal satellite w/o receivers:

O

Roof Vent Rain Covers:

S

Solar Panel Prep:

S

Cab Exterior

Automotive One Piece Windshield:

S

Daytime Running Lights:

S

Remote Power/Heated Mirrors w/Turn Sig-ls and Side Cameras - Black:

S

Tinted Frameless Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Cab Interior

Black instrument gauges w/electronic information center:

S

High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers with Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt and Telescoping Column:

S

Driver Console w/Lower Storage Bin:

S

6" Mobile Vision Color Monitor for Side and Rear Cameras:

S

Pioneer Touch Screen Radio w/AM/FM/CD/DVD/Bluetooth:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Reclining Back, Swivel and 6-way Manual Footrest:

S

Passenger Chair w/Reclining Back, Swivel and 6-way Power Controls and Footrest:

O

3 Point Driver & Passenger Seat Belts w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest:

S

Driver/Passenger Cup Holders :

S

Front Power Roller Shade:

S

Driver/Passenger Pedestal Table:

S

Privacy Curtains for Driver/Passenger Windows:

S

Radio Switch Auxiliary Power at Dash:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Premium Radio Upgrade - Kenwood:

O

Interior

66" Love Seat w/Storage:

NA

80" Jackknife Sofa w/Footrests:

NA

58" Loveseat w/Storage:

S

70" Sofa Sleep w/Full Bed:

S

66" Restassured w/Detachable Arms:

NA

Sofa - Theater Seating w/Foldout Loveseat:

O

Sofa - Theater Seating w/70" Motion Power Lounger:

O

66" Motion Power Lounger:

NA

70" Motion Power Lounger:

NA

80" Motion Power Lounger:

NA

Booth Dinette:

NA

Surf-X Dinette Tops:

S

Jackknife Facing Dinette:

S

Drop Down Queen Bed:

O

Electric Fireplace:

NA

Interior Flat Soft Touch Vinyl Ceiling:

S

Composite Tile Flooring:

S

Composite Tile Flooring in Silde:

S

Hidden Cabinet Door Hinges Throughout:

S

Solid Wood Raised Panel Cabinet Doors Upper & Lower:

S

Solid Wood Drawer Fronts:

S

Fabric Valances:

S

Solid Wood Slide Trims :

S

Manual Day/Night Roller Shades :

S

Energy Efficient LED 3" Puck Flush Mount Ceiling and Under Cabinet Lighting:

S

Interior Décor Choices :

4

Wood Color Choices:

4

Interior Entry

30" Wide Entry Door:

S

Entry Step w/LED Accent Lighting:

S

Battery disconnect:

S

Metal Interior Grab Handle at Entry:

S

Kitchen

Refrigerator -18.7 cu.ft. Residential, Bottom Freezer Stainless Steel:

S

Refrigerator -19 cu.ft. Residential Stainless Steel:

NA

2-Burner Recessed Induction Cooktop:

S

Stainless Steel Over the Range Convection Microwave:

S

Solid Surface Galley Countertop:

S

Tile Backsplash:

S

Shadow Box Glass Tile Backsplash w/window & shade:

NA

Deep Double Bowl Undermount Stainless Steel Sink:

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/Pullout Sprayer :

S

Adjustable Shelves Throughout:

S

Full Extension Drawer Guides w/Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Bedroom or Bunk Area

Queen Size Bed w/Serenity Memory Foam Mattress:

O

King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head :

S

Queen Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head :

O

Bunk Beds :

NA

Designer Bedspread, Pillow Shams & Pillows:

S

Coordinating Fabric Window Treatments and Lambrequins:

S

Surf-X Nightstand Tops:

S

Solid Wood Nightstand Tops:

S

Electric Fireplace:

NA

Inline Washer & Dryer:

O

Side-by-Side Washer & Dryer:

NA

Combo Washer/Dryer:

O

C-pap prep in bedroom overhead :

S

Bathroom

Surf-X Lavy Countertop & Surf-X Backsplash :

S

Residential Brushed Nickel Double Handle Faucet:

S

Deluxe Hardwood Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar,Soap Dish and Matching Single Valve Faucet:

S

Macerator Toilet:

NA

Porcelain Standard Toilet:

S

Fantastic® Power Vent w/Wall Switch :

S

Towel Rings :

S

Entertainment

LG 32″ LED TV (Bedroom):

S

LG 39″ LED TV (Living Area):

S

LG 50″ LED TV (Living Area - Televator):

S

LG 39″ LED TV (Bedroom Area - Televator):

NA

HDMI Video Distribution:

S

Bluetooth Soundbar:

S

Exterior Entertainment Center w/50" LED TV and Bluetooth Soundbar:

S

Electric & Utilities

Technology Package, WiFi Ranger SkyPro w/LTE and GPS in Tech Package, Cell Booster, 265w Solar Panel, Upgraded Kenwood Radio, Mobile Eye Collision Avoidence Camera:

O

Dual-Roof Mount High Efficiency Ducted 15,000-BTU AC Units w/Chill Grill & Rear Heat Pump:

S

25,000/20,000 BTU Furnace :

NA

30,000/20,000 BTU Furnace :

S

Service: 50-amp:

S

Converter: 60 AMP Power Converter:

S

Inverter: Single 2000W Pure Sine:

S

Nuetral Loss Protection:

S

Generator: 6kW Onan Quiet Diesel:

S

Auto Gen Start:

S

(4) 6V Aux Batteries:

S

Master Battery Disconnect Switch :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Purification System (Whole Coach):

S

Exterior Shower :

S

Cable TV/Satellite Hookup:

S

Toilet Tank San-T-Flush System:

S

Multiplex Wiring Control System w/Touch Screen and App Control:

S

LP/CO Smoke Detectors Combo, Fire Extinguisher:

S

Exterior GFCI Receptacle in Exterior Storage:

S

Central Vacuum System:

O

Solar Prep on Roof:

S
Chassis

Chassis:

FREIGHTLINER XCS

GVWR:

29500

GCWR:

33000

Rear Axle GAWR:

19000

Front Axle GAWR:

10500

Hitch Rating:

10000

Front suspension: Neway Air Suspension:

S

55 Degree Wheel Cut:

S

Rear suspension: Neway Air Suspension:

S

Front Brakes: Full Air 15x4 in Drum Style S-Cam w/ABS:

S

Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ABS:

S

Tuned Sachs Shocks:

S

Power assisted Steering:

S

Front Tires :

255/70R22.5

Rear Tires:

255/70R22.6

Front and Rear Aluminum Wheels:

S

Electronic dash (FCCC):

S

Engine Equipment

Cummins ISB Turbocharged 6.7L, 300 HP w/660 ft. lbs. Torque:

NA

Cummins ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque:

S

Engine Braking: Integral w/Cummins Variable Geometry Turbo:

S

Delco Remy 160 Amp Alternator:

S

Allison 2100 MH 6-Speed Automatic transmission w/Electronic Shift Control:

NA

Allison 2500 MH 6-Speed Automatic transmission w/Electronic Shift Control:

S

Cast Iron and Stainless Steel Exhaust:

S

Chassis Battery 72-amp:

S

(2) 6V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

252"

Exterior Length:

37"7"

Exterior Width:

102"

Exterior Height:

12'2"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

164

Exterior Storage (cu.ft.):

164

Awning Size:

16'

2nd Awning Size:

11'

# of Slideouts:

4

Capacities

Fuel (gal):

90

Fresh Water (gal):

100

Gray Waste Water (gal):

52

Black Waste Water (gal):

40

6 Gallon Quick Recovery Water Heater (Gas/Electric):

6

LP (gal) (WC):

28.6

Tankless Water Heater (Girard):

O

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Sidewalls and Roof:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

Vacu-Bond Aluminum Framed Constructed Floor :

S

R-8 Insulated Sidewalls, R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Composite Floor and Wall Construction w/Lighting:

S

Basement Storage Lighting w/Master Switch Inside Entry:

S

Heated Fresh Water and Holding Tank Compartments:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Powder and Liquid Coated Steel Frame Chassis Construction:

S

Rotocast Molded Durable Easy to Clean Service Compartment:

S

Full Coverage Heavy Duty Undercoating:

S

Exterior

Aerodynamic Fiberglass Cap with Automotive Headlighting:

S

Hood Insert and Seamless Mounting:

S

Rear Fiberglass Cap with Fiberglass Rear Engine Access, Automotive Lighting and Grill:

S

Fiberglass Wheel Well Trims:

S

TPO Roof:

S

4-Color Premier Full Body Paint w/Front Clear Mask:

S

Electric Patio Awning w/LED lighting and Wind Sensor Retract:

S

Slide Out Awning Toppers above all Slideouts:

S

Radius door w/screendoor, w/latch, deadbolt lock and Frameless Window:

S

Acrylic Grab Handle at Entry Door:

S

Exterior Power Entry Step :

S

Side Swing Aluminum Bus-Style Baggage doors :

S

Large Dark Tinted Frameless Windows :

S

LED Patio light:

S

Front, Side and Rear LED Clearance and Marker lighting:

S

Exterior Service Station w/Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder and Drainage Valves:

S

Exterior Park Cable and Satellite Hookup:

S

Hitch - Capacity of 10,000 # w/7-Way Round Tow Connection:

S

Underhood Utility Light:

S

Unidirectional King Controls Jack Antenna:

S

Battery disconnect:

S

Metal Interior Grab Handle at Entry:

S

Auto Leveling Jacks Control:

S

Entry Door Manual Roller Shade:

S

Satellite Ready:

S

King Satellite to the Universal satellite w/o receivers:

O

Roof Vent Rain Covers:

S

Solar Panel Prep:

S

Cab Exterior

Automotive One Piece Windshield:

S

Daytime Running Lights:

S

Remote Power/Heated Mirrors w/Turn Sig-ls and Side Cameras - Black:

S

Tinted Frameless Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Cab Interior

Black instrument gauges w/electronic information center:

S

High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers with Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt and Telescoping Column:

S

Driver Console w/Lower Storage Bin:

S

6" Mobile Vision Color Monitor for Side and Rear Cameras:

S

Pioneer Touch Screen Radio w/AM/FM/CD/DVD/Bluetooth:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Reclining Back, Swivel and 6-way Manual Footrest:

S

Passenger Chair w/Reclining Back, Swivel and 6-way Power Controls and Footrest:

O

3 Point Driver & Passenger Seat Belts w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest:

S

Driver/Passenger Cup Holders :

S

Front Power Roller Shade:

S

Driver/Passenger Pedestal Table:

S

Privacy Curtains for Driver/Passenger Windows:

S

Radio Switch Auxiliary Power at Dash:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Premium Radio Upgrade - Kenwood:

O

Interior

66" Love Seat w/Storage:

NA

80" Jackknife Sofa w/Footrests:

NA

58" Loveseat w/Storage:

NA

70" Sofa Sleep w/Full Bed:

S

66" Restassured w/Detachable Arms:

NA

Sofa - Theater Seating w/Foldout Loveseat:

NA

Sofa - Theater Seating w/70" Motion Power Lounger:

NA

66" Motion Power Lounger:

NA

70" Motion Power Lounger:

O

80" Motion Power Lounger:

NA

Booth Dinette:

NA

Surf-X Dinette Tops:

S

Jackknife Facing Dinette:

S

Drop Down Queen Bed:

O

Electric Fireplace:

NA

Interior Flat Soft Touch Vinyl Ceiling:

S

Composite Tile Flooring:

S

Composite Tile Flooring in Silde:

S

Hidden Cabinet Door Hinges Throughout:

S

Solid Wood Raised Panel Cabinet Doors Upper & Lower:

S

Solid Wood Drawer Fronts:

S

Fabric Valances:

S

Solid Wood Slide Trims :

S

Manual Day/Night Roller Shades :

S

Energy Efficient LED 3" Puck Flush Mount Ceiling and Under Cabinet Lighting:

S

Interior Décor Choices :

4

Wood Color Choices:

4

Interior Entry

30" Wide Entry Door:

S

Entry Step w/LED Accent Lighting:

S

Battery disconnect:

S

Metal Interior Grab Handle at Entry:

S

Kitchen

Refrigerator -18.7 cu.ft. Residential, Bottom Freezer Stainless Steel:

S

Refrigerator -19 cu.ft. Residential Stainless Steel:

NA

2-Burner Recessed Induction Cooktop:

S

Stainless Steel Over the Range Convection Microwave:

S

Solid Surface Galley Countertop:

S

Tile Backsplash:

NA

Shadow Box Glass Tile Backsplash w/window & shade:

S

Deep Double Bowl Undermount Stainless Steel Sink:

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/Pullout Sprayer :

S

Adjustable Shelves Throughout:

S

Full Extension Drawer Guides w/Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Bedroom or Bunk Area

Queen Size Bed w/Serenity Memory Foam Mattress:

NA

King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head :

NA

Queen Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head :

S

Bunk Beds :

S

Designer Bedspread, Pillow Shams & Pillows:

S

Coordinating Fabric Window Treatments and Lambrequins:

S

Surf-X Nightstand Tops:

S

Solid Wood Nightstand Tops:

NA

Electric Fireplace:

NA

Inline Washer & Dryer:

O

Side-by-Side Washer & Dryer:

NA

Combo Washer/Dryer:

O

C-pap prep in bedroom overhead :

S

Bathroom

Surf-X Lavy Countertop & Surf-X Backsplash :

S

Residential Brushed Nickel Double Handle Faucet:

S

Deluxe Hardwood Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar,Soap Dish and Matching Single Valve Faucet:

S

Macerator Toilet:

S

Porcelain Standard Toilet:

NA

Fantastic® Power Vent w/Wall Switch :

S

Towel Rings :

S

Entertainment

LG 32″ LED TV (Bedroom):

S

LG 39″ LED TV (Living Area):

S

LG 50″ LED TV (Living Area - Televator):

NA

LG 39″ LED TV (Bedroom Area - Televator):

NA

HDMI Video Distribution:

S

Bluetooth Soundbar:

S

Exterior Entertainment Center w/50" LED TV and Bluetooth Soundbar:

S

Electric & Utilities

Technology Package, WiFi Ranger SkyPro w/LTE and GPS in Tech Package, Cell Booster, 265w Solar Panel, Upgraded Kenwood Radio, Mobile Eye Collision Avoidence Camera:

O

Dual-Roof Mount High Efficiency Ducted 15,000-BTU AC Units w/Chill Grill & Rear Heat Pump:

S

25,000/20,000 BTU Furnace :

NA

30,000/20,000 BTU Furnace :

S

Service: 50-amp:

S

Converter: 60 AMP Power Converter:

S

Inverter: Single 2000W Pure Sine:

S

Nuetral Loss Protection:

S

Generator: 6kW Onan Quiet Diesel:

S

Auto Gen Start:

S

(4) 6V Aux Batteries:

S

Master Battery Disconnect Switch :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Purification System (Whole Coach):

S

Exterior Shower :

S

Cable TV/Satellite Hookup:

S

Toilet Tank San-T-Flush System:

S

Multiplex Wiring Control System w/Touch Screen and App Control:

S

LP/CO Smoke Detectors Combo, Fire Extinguisher:

S

Exterior GFCI Receptacle in Exterior Storage:

S

Central Vacuum System:

O

Solar Prep on Roof:

S
Chassis

Chassis:

FREIGHTLINER XCS

GVWR:

29500

GCWR:

33000

Rear Axle GAWR:

19000

Front Axle GAWR:

10500

Hitch Rating:

10000

Front suspension: Neway Air Suspension:

XS

55 Degree Wheel Cut:

S

Rear suspension: Neway Air Suspension:

S

Front Brakes: Full Air 15x4 in Drum Style S-Cam w/ABS:

S

Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ABS:

S

Tuned Sachs Shocks:

S

Power assisted Steering:

S

Front Tires :

255/70R22.5

Rear Tires:

255/70R22.6

Front and Rear Aluminum Wheels:

S

Electronic dash (FCCC):

S

Engine Equipment

Cummins ISB Turbocharged 6.7L, 300 HP w/660 ft. lbs. Torque:

NA

Cummins ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque:

S

Engine Braking: Integral w/Cummins Variable Geometry Turbo:

S

Delco Remy 160 Amp Alternator:

S

Allison 2100 MH 6-Speed Automatic transmission w/Electronic Shift Control:

NA

Allison 2500 MH 6-Speed Automatic transmission w/Electronic Shift Control:

S

Cast Iron and Stainless Steel Exhaust:

S

Chassis Battery 72-amp:

S

(2) 6V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

252"

Exterior Length:

37"7"

Exterior Width:

102"

Exterior Height:

12'2"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

164

Exterior Storage (cu.ft.):

164

Awning Size:

16'

2nd Awning Size:

11'

# of Slideouts:

4

Capacities

Fuel (gal):

90

Fresh Water (gal):

100

Gray Waste Water (gal):

52

Black Waste Water (gal):

40

6 Gallon Quick Recovery Water Heater (Gas/Electric):

6

LP (gal) (WC):

28.6

Tankless Water Heater (Girard):

O

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Sidewalls and Roof:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

Vacu-Bond Aluminum Framed Constructed Floor :

S

R-8 Insulated Sidewalls, R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Composite Floor and Wall Construction w/Lighting:

S

Basement Storage Lighting w/Master Switch Inside Entry:

S

Heated Fresh Water and Holding Tank Compartments:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Powder and Liquid Coated Steel Frame Chassis Construction:

S

Rotocast Molded Durable Easy to Clean Service Compartment:

S

Full Coverage Heavy Duty Undercoating:

S

Exterior

Aerodynamic Fiberglass Cap with Automotive Headlighting:

S

Hood Insert and Seamless Mounting:

S

Rear Fiberglass Cap with Fiberglass Rear Engine Access, Automotive Lighting and Grill:

S

Fiberglass Wheel Well Trims:

S

TPO Roof:

S

4-Color Premier Full Body Paint w/Front Clear Mask:

S

Electric Patio Awning w/LED lighting and Wind Sensor Retract:

S

Slide Out Awning Toppers above all Slideouts:

S

Radius door w/screendoor, w/latch, deadbolt lock and Frameless Window:

S

Acrylic Grab Handle at Entry Door:

S

Exterior Power Entry Step :

S

Side Swing Aluminum Bus-Style Baggage doors :

S

Large Dark Tinted Frameless Windows :

S

LED Patio light:

S

Front, Side and Rear LED Clearance and Marker lighting:

S

Exterior Service Station w/Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder and Drainage Valves:

S

Exterior Park Cable and Satellite Hookup:

S

Hitch - Capacity of 10,000 # w/7-Way Round Tow Connection:

S

Underhood Utility Light:

S

Unidirectional King Controls Jack Antenna:

S

Battery disconnect:

S

Metal Interior Grab Handle at Entry:

S

Auto Leveling Jacks Control:

S

Entry Door Manual Roller Shade:

S

Satellite Ready:

S

King Satellite to the Universal satellite w/o receivers:

O

Roof Vent Rain Covers:

S

Solar Panel Prep:

S

Cab Exterior

Automotive One Piece Windshield:

S

Daytime Running Lights:

S

Remote Power/Heated Mirrors w/Turn Sig-ls and Side Cameras - Black:

S

Tinted Frameless Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Cab Interior

Black instrument gauges w/electronic information center:

S

High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers with Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt and Telescoping Column:

S

Driver Console w/Lower Storage Bin:

S

6" Mobile Vision Color Monitor for Side and Rear Cameras:

S

Pioneer Touch Screen Radio w/AM/FM/CD/DVD/Bluetooth:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Reclining Back, Swivel and 6-way Manual Footrest:

S

Passenger Chair w/Reclining Back, Swivel and 6-way Power Controls and Footrest:

O

3 Point Driver & Passenger Seat Belts w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest:

S

Driver/Passenger Cup Holders :

S

Front Power Roller Shade:

S

Driver/Passenger Pedestal Table:

S

Privacy Curtains for Driver/Passenger Windows:

S

Radio Switch Auxiliary Power at Dash:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Premium Radio Upgrade - Kenwood:

O

Interior

66" Love Seat w/Storage:

NA

80" Jackknife Sofa w/Footrests:

NA

58" Loveseat w/Storage:

NA

70" Sofa Sleep w/Full Bed:

S

66" Restassured w/Detachable Arms:

NA

Sofa - Theater Seating w/Foldout Loveseat:

NA

Sofa - Theater Seating w/70" Motion Power Lounger:

NA

66" Motion Power Lounger:

NA

70" Motion Power Lounger:

O

80" Motion Power Lounger:

NA

Booth Dinette:

NA

Surf-X Dinette Tops:

S

Jackknife Facing Dinette:

S

Drop Down Queen Bed:

O

Electric Fireplace:

NA

Interior Flat Soft Touch Vinyl Ceiling:

S

Composite Tile Flooring:

S

Composite Tile Flooring in Silde:

S

Hidden Cabinet Door Hinges Throughout:

S

Solid Wood Raised Panel Cabinet Doors Upper & Lower:

S

Solid Wood Drawer Fronts:

S

Fabric Valances:

S

Solid Wood Slide Trims :

S

Manual Day/Night Roller Shades :

S

Energy Efficient LED 3" Puck Flush Mount Ceiling and Under Cabinet Lighting:

S

Interior Décor Choices :

4

Wood Color Choices:

4

Interior Entry

30" Wide Entry Door:

S

Entry Step w/LED Accent Lighting:

S

Battery disconnect:

S

Metal Interior Grab Handle at Entry:

S

Kitchen

Refrigerator -18.7 cu.ft. Residential, Bottom Freezer Stainless Steel:

S

Refrigerator -19 cu.ft. Residential Stainless Steel:

NA

2-Burner Recessed Induction Cooktop:

S

Stainless Steel Over the Range Convection Microwave:

S

Solid Surface Galley Countertop:

S

Tile Backsplash:

NA

Shadow Box Glass Tile Backsplash w/window & shade:

S

Deep Double Bowl Undermount Stainless Steel Sink:

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/Pullout Sprayer :

S

Adjustable Shelves Throughout:

S

Full Extension Drawer Guides w/Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Bedroom or Bunk Area

Queen Size Bed w/Serenity Memory Foam Mattress:

NA

King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head :

NA

Queen Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head :

S

Bunk Beds :

NA

Designer Bedspread, Pillow Shams & Pillows:

S

Coordinating Fabric Window Treatments and Lambrequins:

S

Surf-X Nightstand Tops:

S

Solid Wood Nightstand Tops:

NA

Electric Fireplace:

NA

Inline Washer & Dryer:

O

Side-by-Side Washer & Dryer:

NA

Combo Washer/Dryer:

O

C-pap prep in bedroom overhead :

S

Bathroom

Surf-X Lavy Countertop & Surf-X Backsplash :

S

Residential Brushed Nickel Double Handle Faucet:

S

Deluxe Hardwood Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar,Soap Dish and Matching Single Valve Faucet:

S

Macerator Toilet:

S

Porcelain Standard Toilet:

NA

Fantastic® Power Vent w/Wall Switch :

S

Towel Rings :

S

Entertainment

LG 32″ LED TV (Bedroom):

S

LG 39″ LED TV (Living Area):

S

LG 50″ LED TV (Living Area - Televator):

NA

LG 39″ LED TV (Bedroom Area - Televator):

NA

HDMI Video Distribution:

S

Bluetooth Soundbar:

S

Exterior Entertainment Center w/50" LED TV and Bluetooth Soundbar:

S

Electric & Utilities

Technology Package, WiFi Ranger SkyPro w/LTE and GPS in Tech Package, Cell Booster, 265w Solar Panel, Upgraded Kenwood Radio, Mobile Eye Collision Avoidence Camera:

O

Dual-Roof Mount High Efficiency Ducted 15,000-BTU AC Units w/Chill Grill & Rear Heat Pump:

S

25,000/20,000 BTU Furnace :

NA

30,000/20,000 BTU Furnace :

S

Service: 50-amp:

S

Converter: 60 AMP Power Converter:

S

Inverter: Single 2000W Pure Sine:

S

Nuetral Loss Protection:

S

Generator: 6kW Onan Quiet Diesel:

S

Auto Gen Start:

S

(4) 6V Aux Batteries:

S

Master Battery Disconnect Switch :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Purification System (Whole Coach):

S

Exterior Shower :

S

Cable TV/Satellite Hookup:

S

Toilet Tank San-T-Flush System:

S

Multiplex Wiring Control System w/Touch Screen and App Control:

S

LP/CO Smoke Detectors Combo, Fire Extinguisher:

S

Exterior GFCI Receptacle in Exterior Storage:

S

Central Vacuum System:

O

Solar Prep on Roof:

S
Chassis

Chassis:

FREIGHTLINER XCS

GVWR:

29500

GCWR:

33000

Rear Axle GAWR:

19000

Front Axle GAWR:

10500

Hitch Rating:

10000

Front suspension: Neway Air Suspension:

S

55 Degree Wheel Cut:

S

Rear suspension: Neway Air Suspension:

S

Front Brakes: Full Air 15x4 in Drum Style S-Cam w/ABS:

S

Rear Brakes: 16.5 x 7" Drum Style S-Cam w/ABS:

S

Tuned Sachs Shocks:

S

Power assisted Steering:

S

Front Tires :

255/70R22.5

Rear Tires:

255/70R22.6

Front and Rear Aluminum Wheels:

S

Electronic dash (FCCC):

S

Engine Equipment

Cummins ISB Turbocharged 6.7L, 300 HP w/660 ft. lbs. Torque:

NA

Cummins ISB Turbocharged 6.7L, 340 HP w/700 ft. lbs. Torque:

S

Engine Braking: Integral w/Cummins Variable Geometry Turbo:

S

Delco Remy 160 Amp Alternator:

S

Allison 2100 MH 6-Speed Automatic transmission w/Electronic Shift Control:

NA

Allison 2500 MH 6-Speed Automatic transmission w/Electronic Shift Control:

S

Cast Iron and Stainless Steel Exhaust:

S

Chassis Battery 72-amp:

S

(2) 6V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

252"

Exterior Length:

37"7"

Exterior Width:

102"

Exterior Height:

12'2"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

164

Exterior Storage (cu.ft.):

164

Awning Size:

17'

2nd Awning Size:

NA

# of Slideouts:

2

Capacities

Fuel (gal):

90

Fresh Water (gal):

77

Gray Waste Water (gal):

60

Black Waste Water (gal):

32

6 Gallon Quick Recovery Water Heater (Gas/Electric):

6

LP (gal) (WC):

28.6

Tankless Water Heater (Girard):

O

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Sidewalls and Roof:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

Vacu-Bond Aluminum Framed Constructed Floor :

S

R-8 Insulated Sidewalls, R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Composite Floor and Wall Construction w/Lighting:

S

Basement Storage Lighting w/Master Switch Inside Entry:

S

Heated Fresh Water and Holding Tank Compartments:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Powder and Liquid Coated Steel Frame Chassis Construction:

S

Rotocast Molded Durable Easy to Clean Service Compartment:

S

Full Coverage Heavy Duty Undercoating:

S

Exterior

Aerodynamic Fiberglass Cap with Automotive Headlighting:

S

Hood Insert and Seamless Mounting:

S

Rear Fiberglass Cap with Fiberglass Rear Engine Access, Automotive Lighting and Grill:

S

Fiberglass Wheel Well Trims:

S

TPO Roof:

S

4-Color Premier Full Body Paint w/Front Clear Mask:

S

Electric Patio Awning w/LED lighting and Wind Sensor Retract:

S

Slide Out Awning Toppers above all Slideouts:

S

Radius door w/screendoor, w/latch, deadbolt lock and Frameless Window:

S

Acrylic Grab Handle at Entry Door:

S

Exterior Power Entry Step :

S

Side Swing Aluminum Bus-Style Baggage doors :

S

Large Dark Tinted Frameless Windows :

S

LED Patio light:

S

Front, Side and Rear LED Clearance and Marker lighting:

S

Exterior Service Station w/Water Pump Switch, Exterior shower, Black Tank Flush, City Water Hookup, Towel Holder and Drainage Valves:

S

Exterior Park Cable and Satellite Hookup:

S

Hitch - Capacity of 10,000 # w/7-Way Round Tow Connection:

S

Underhood Utility Light:

S

Unidirectional King Controls Jack Antenna:

S

Battery disconnect:

S

Metal Interior Grab Handle at Entry:

S

Auto Leveling Jacks Control:

S

Entry Door Manual Roller Shade:

S

Satellite Ready:

S

King Satellite to the Universal satellite w/o receivers:

O

Roof Vent Rain Covers:

S

Solar Panel Prep:

S

Cab Exterior

Automotive One Piece Windshield:

S

Daytime Running Lights:

S

Remote Power/Heated Mirrors w/Turn Sig-ls and Side Cameras - Black:

S

Tinted Frameless Slider Driver/Passenger Windows:

S

Fog Lamps:

S

Automotive Style Windshield Wiper System:

S

Cab Interior

Black instrument gauges w/electronic information center:

S

High Output Dash Air Conditioning and Heat:

S

Air Suspension Deflation System:

S

Electronic Cruise Control:

S

Windshield Wipers with Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt and Telescoping Column:

S

Driver Console w/Lower Storage Bin:

S

6" Mobile Vision Color Monitor for Side and Rear Cameras:

S

Pioneer Touch Screen Radio w/AM/FM/CD/DVD/Bluetooth:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Reclining Back, Swivel and 6-way Manual Footrest:

S

Passenger Chair w/Reclining Back, Swivel and 6-way Power Controls and Footrest:

O

3 Point Driver & Passenger Seat Belts w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlet at Dash and Passenger Area:

S

Automotive Style Wrap Around Dash:

S

Passenger Armrest:

S

Driver/Passenger Cup Holders :

S

Front Power Roller Shade:

S

Driver/Passenger Pedestal Table:

S

Privacy Curtains for Driver/Passenger Windows:

S

Radio Switch Auxiliary Power at Dash:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Premium Radio Upgrade - Kenwood:

O

Interior

66" Love Seat w/Storage:

NA

80" Jackknife Sofa w/Footrests:

S

58" Loveseat w/Storage:

NA

70" Sofa Sleep w/Full Bed:

NA

66" Restassured w/Detachable Arms:

NA

Sofa - Theater Seating w/Foldout Loveseat:

NA

Sofa - Theater Seating w/70" Motion Power Lounger:

NA

66" Motion Power Lounger:

NA

70" Motion Power Lounger:

NA

80" Motion Power Lounger:

O

Booth Dinette:

S

Surf-X Dinette Tops:

S

Jackknife Facing Dinette:

O

Drop Down Queen Bed:

O

Electric Fireplace:

S

Interior Flat Soft Touch Vinyl Ceiling:

S

Composite Tile Flooring:

S

Composite Tile Flooring in Silde:

S

Hidden Cabinet Door Hinges Throughout:

S

Solid Wood Raised Panel Cabinet Doors Upper & Lower:

S

Solid Wood Drawer Fronts:

S

Fabric Valances:

S

Solid Wood Slide Trims :

S

Manual Day/Night Roller Shades :

S

Energy Efficient LED 3" Puck Flush Mount Ceiling and Under Cabinet Lighting:

S

Interior Décor Choices :

4

Wood Color Choices:

4

Interior Entry

30" Wide Entry Door:

S

Entry Step w/LED Accent Lighting:

S

Battery disconnect:

S

Metal Interior Grab Handle at Entry:

S

Kitchen

Refrigerator -18.7 cu.ft. Residential, Bottom Freezer Stainless Steel:

S

Refrigerator -19 cu.ft. Residential Stainless Steel:

NA

2-Burner Recessed Induction Cooktop:

S

Stainless Steel Over the Range Convection Microwave:

S

Solid Surface Galley Countertop:

S

Tile Backsplash:

S

Shadow Box Glass Tile Backsplash w/window & shade:

NA

Deep Double Bowl Undermount Stainless Steel Sink:

S

Polished Solid Surface Sink Covers:

S

Residential Single Handle Faucet w/Pullout Sprayer :

S

Adjustable Shelves Throughout:

S

Full Extension Drawer Guides w/Latches:

S

Fantastic® Power Vent w/Wall Switch :

S

Waste Basket:

S

Bedroom or Bunk Area

Queen Size Bed w/Serenity Memory Foam Mattress:

NA

King Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head :

S

Queen Size Dream Easy Serenity Memory Foam Mattress w/Adjustable Head :

NA

Bunk Beds :

NA

Designer Bedspread, Pillow Shams & Pillows:

S

Coordinating Fabric Window Treatments and Lambrequins:

S

Surf-X Nightstand Tops:

S

Solid Wood Nightstand Tops:

NA

Electric Fireplace:

NA

Inline Washer & Dryer:

NA

Side-by-Side Washer & Dryer:

O

Combo Washer/Dryer:

NA

C-pap prep in bedroom overhead :

S

Bathroom

Surf-X Lavy Countertop & Surf-X Backsplash :

S

Residential Brushed Nickel Double Handle Faucet:

S

Deluxe Hardwood Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar,Soap Dish and Matching Single Valve Faucet:

S

Macerator Toilet:

S

Porcelain Standard Toilet:

NA

Fantastic® Power Vent w/Wall Switch :

S

Towel Rings :

S

Entertainment

LG 32″ LED TV (Bedroom):

S

LG 39″ LED TV (Living Area):

S

LG 50″ LED TV (Living Area - Televator):

NA

LG 39″ LED TV (Bedroom Area - Televator):

NA

HDMI Video Distribution:

S

Bluetooth Soundbar:

S

Exterior Entertainment Center w/50" LED TV and Bluetooth Soundbar:

S

Electric & Utilities

Technology Package, WiFi Ranger SkyPro w/LTE and GPS in Tech Package, Cell Booster, 265w Solar Panel, Upgraded Kenwood Radio, Mobile Eye Collision Avoidence Camera:

O

Dual-Roof Mount High Efficiency Ducted 15,000-BTU AC Units w/Chill Grill & Rear Heat Pump:

S

25,000/20,000 BTU Furnace :

NA

30,000/20,000 BTU Furnace :

S

Service: 50-amp:

S

Converter: 60 AMP Power Converter:

S

Inverter: Single 2000W Pure Sine:

S

Nuetral Loss Protection:

S

Generator: 6kW Onan Quiet Diesel:

S

Auto Gen Start:

S

(4) 6V Aux Batteries:

S

Master Battery Disconnect Switch :

S

Water Pump: 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Purification System (Whole Coach):

S

Exterior Shower :

S

Cable TV/Satellite Hookup:

S

Toilet Tank San-T-Flush System:

S

Multiplex Wiring Control System w/Touch Screen and App Control:

S

LP/CO Smoke Detectors Combo, Fire Extinguisher:

S

Exterior GFCI Receptacle in Exterior Storage:

S

Central Vacuum System:

O

Solar Prep on Roof:

S
