Class A

Bounder

Anniversary Edition

An edition worthy of its heritage.

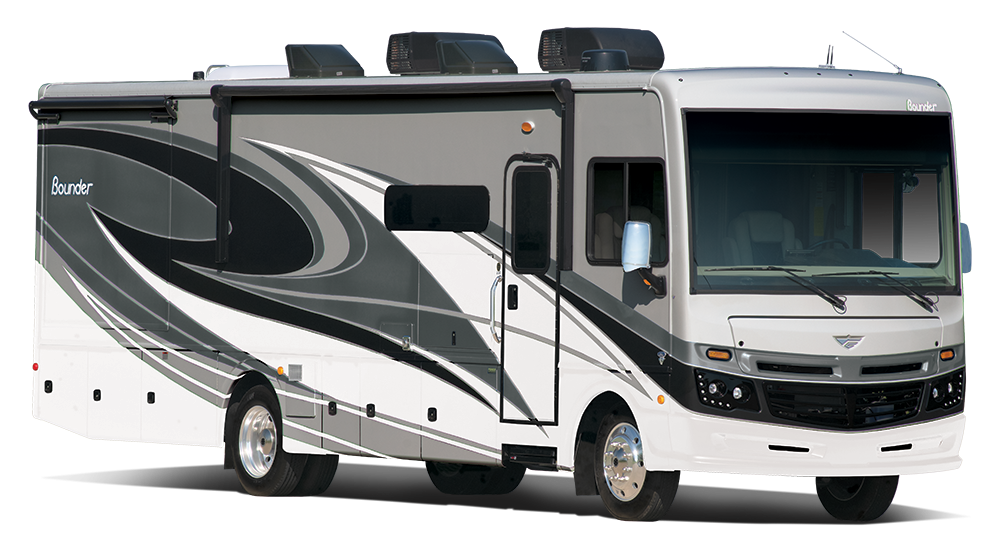

3 4 33 C BOUNDER Iron 3536 MY21

An edition worthy of its heritage.

Not only has Bounder been around for 35 years, but it has the distinction of being one of the best-selling motorhome ever. Its enduring presence on the roads is a testament to the joy this model has brought to families over generations. To celebrate its legacy, we are releasing a limited Anniversary Edition that showcases what owners have come to love about Bounder. It includes several sought-after features—that are normally options—as part of the standard package. We also created two signature, custom interiors for it so your Anniversary Edition will stand out from the crowd.

Make history with this record-setting model and see why Bounder knows no bounds.

Chassis

Chassis Type:

Ford F-53 Motorhome Chassis

GVWR:

22000

GCWR:

26000

Rear Axle GAWR:

15000

Front Axle GAWR:

8000

Hitch Rating:

5000

Front suspension: Tapered Multi-Leaf:

S

Rear suspension: Tapered Multi-Leaf:

S

Power - 4 Wheel Disc (Hydro-boost) w/ABS:

S

Shock Absorbers - Bilstein™ 1.63-in. diameter:

S

Power Assisted Steering:

S

Stabilizer Bar Front & Rear:

S

Front Tires :

235/80R 22.5

Rear Tires:

235/80R 22.5

Front and Rear Aluminum Wheels:

S

Sumo Springs - Front/Rear:

O

Liquid Spring - Front/Rear:

O

Engine Equipment

Ford 7.3L Triton V8, 350 HP w/468 lb. Torque:

S

175 Amp Alternator:

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode:

S

Chassis Battery 78-amp:

S

12V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

208"

Exterior Length:

34'3"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

123

Basement Storage (cu.ft.):

160

# of Slideouts:

2

Capacities

Fuel (gal):

80

Fresh Water (gal):

100

Gray Waste Water (gal):

58

Black Waste Water (gal):

42

Appliance Propane (gal) (WC):

25

Water Heater (gal):

10

Tankless Water Heater:

NA

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments:

S

Basement Storage Lighting w/Master Switch:

S

Heated Fresh Water and Holding Tank Compartments:

S

Power Platform Chassis Construction:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Full Coverage Heavy Duty Undercoating:

S

CSA Build:

O

Exterior

Aerodynamic Fiberglass Cap w/Automotive Headlighting:

S

Rear Fiberglass Cap w/Automotive Lighting:

S

ABS Wheel Well Skirts:

S

TPO Roof - Thermoplastic Polyolefin :

S

Electric Patio Awning w/LED lighting and Motion Sensor:

S

Slide Out Awning Toppers Above All Slideouts:

S

Radiused Entry Door w/Screendoor, Latch, Deadbolt Lock:

S

Luggage Door Handles - Chrome/Black:

S

Entry Grab Handle - Acrylic Lighted:

S

Power Entry Step w/Light:

S

Bus-Style Luggage Doors - Side Swing Aluminum:

S

Dual Pane Framless Windows:

S

Patio LED Light:

S

Clearance and Marker Lighting - Front, Side and Rear:

S

Auto Gen Start:

S

Gravity Fresh Water Fill:

S

Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves:

S

Park Cable and Satellite Hookup:

S

Trialer Hitch w/7-Way Round Tow Connection (5,000 lbs.):

S

Trialer Hitch w/7-Way Round Tow Connection (8,000 lbs.):

NA

TV Antenna - Unidirectional King Controls Jack Antenna:

S

LP Connection:

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Rear Ladder:

S

Premier Paint: Full Body, 4-Color w/Front Clear Mask:

3

Roof Vent Rain Covers:

S

KING Universal Satellite System:

O

Cab Exterior

Automotive One-piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Windows - Driver/Passenger:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Cab Interior

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Manual Footrest, Reclining Back & Swivel:

S

Driver/Passenger ABS Style Armrests:

S

Cup Holders - Driver/Passenger:

S

Windshield Roller Shade - Power:

S

Manual Roller Shades - Driver/Passenger Manual:

S

Overhead Map Flex Lighting - Driver/Passenger:

S

Instrument Gauges w/Electronic Information Center - Black:

S

High Output Dash Air Conditioning and Heat:

S

Electronic Cruise Control:

S

Windshield Wipers w/Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt Column:

S

6" Color Monitor for Side and Rear Cameras:

S

Sony 9" Stereo w/AM/FM/Bluetooth/ MP3/USB - Phone Control - Android Auto & Apple Car Play w/Navigation - Siri Eyes Free - Built in HD Radio - Sirius/XM Ready (Requires Subscription) – Backup camera:

S

Garmin Collision Mitigation System:

O

Sony 6 1/2" Stereo Speakers:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Seat Belts - 3 Point Driver & Passenger w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlets :

S

Automotive Style Dash w/Dual Monitors and Workstation:

S

Pullout Center Dash Storage Bin:

S

Cab Lights:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Engine Cover w/Snack Tray:

S

Cab Floor Mats:

S

Cab Area Fans:

S

Auto Leveling Jack Controls:

S

Center Table - Driver/Passenger:

S

Auxiliary Start Switch:

S

Hide-A-Loft Drop Down Queen Bed w/24" TV:

O

Interior

Sofa - Expandable L-Sofa:

O

Sofa - Tri-fold:

NA

Sofa - Tri-fold w/Facing Booth Dinette w/Dream Dinette:

NA

Sofa - Expandable L-Sofa and Free-Standing Dinette w/Credenza:

NA

Sofa - Jack-knife:

S

Sofa - Theatre Seating:

O

Facing Booth Dinette w/Dream Dinette Table:

S

Free Standing Dinette w/Credenza:

O

Solid Surface Galley Top:

S

Surf-X Tops Throughout (Excluding Galley):

S

Electric Fireplace:

S

Feature Wall w/Accent Wall Covering:

S

Flat Ceiling w/Soft Touch Vinyl:

S

Vinyl Tile Flooring Throughout:

S

Ozite Lined Cabinet Interiors:

S

Cedar Lined Wardrobe Interiors (Select Locations):

S

Full Extension Drawer Guides w/Latches:

S

Hidden Euro Hinges and Struts:

S

Cabinet Doors - Solid Wood, Raised Panel :

S

Slideout Fascia - Interior Wood Color Coordinating :

S

Window Valances w/Lambrequins:

S

Manual Day/Night Roller Shades:

S

Energy Efficient 3" LED Flush Mount Ceiling and Under Cabinet Reading Lights Throughout:

S

Flush Floor Living Slideouts:

S

Faucets, Fixtures and Hardware - Brushed Nickle:

S

Interior Décor Choices:

3

Wood Color Choices:

4

Interior Entry

Battery Disconnect:

S

Entry Grab Handle - Metal:

S

Multiplex Electric Controls w/App Control:

S

Entry Door Manual Roller Shade:

S

Entry Steps w/Lighted Step Well:

S

Kitchen

Refrigerator - Residential Stainless Steel French Door Style w/Icemaker - Samsung:

S

Cooktop - 3-Burner w/Solid Surface Covers:

S

Range w/Oven - 3-Burner Drop-In:

O

Microwave - Convection, Stainless Steel, Over the Range:

S

Tile Backsplash:

S

Large Galley Window w/Tiled Window Box:

S

Sink - Stainless Steel, Deep Double Bowl, Undermount:

S

Sink Covers - Solid Surface:

S

Residential Faucet - Single Handle w/Pullout Sprayer :

S

Adjustable Shelves Throughout:

S

Power Ceiling Vent - FanTastic:

S

Waste Basket:

S

Night Roller Shade - Manual:

S

Bedroom or Bunk Area

King Memory Foam Mattress:

S

Bunk Beds (Mutli-purpose Flip Bunk for Wardrobe and Seating w/doors):

NA

Designer Bedspread, Headboard, Pillow Shams & Pillows:

S

C-PAP Machine Prep - Bedroom Overhead:

S

120V/USB Ports:

S

Lavy

Sink - Top-Mounted Porcelain:

NA

Sink - Top-Mounted Stainless Steel:

S

Residential Faucet - Single Handle:

S

Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Macerator Toilet - Porcelain:

S

Standard Toilet - Porcelain:

NA

Power Ceiling Vent - FanTastic:

S

Entertainment

40″ Flat Screen LED TV (Living Area):

S

32″ Flat Screen LED TV (Bedroom):

S

24″ Flat Screen LED TV (Bedroom):

NA

24″ Flat Screen LED TV (Bunk Area):

NA

24" Flat Screen LED TV (Front Overhead w/Hide-A-Loft Drop Down Bed Opt.):

O

HDMI Video Distribution:

S

Sound Bar w/Blu-Ray Player:

S

Entertainment Center w/40" LED TV and Bluetooth Sound Bar:

S

Electric & Utilities

A/C - Dual 15,000 BTU w/Chill Grill & Rear Heat Pump:

S

Furnace - 34,000 BTU:

S

Furnace - Dual 30,000/20,000 BTU:

NA

50 Amp Service:

S

60 Amp Power Converter:

S

Inverter - Single 2000w Pure Sine:

S

WiFiRanger Sky4:

S

WiFiRanger SkyPro Pack w/LTE and GPS:

O

100w Solar Panel:

S

265w Solar Panel:

O

Multiplex Wiring Control System w/7" touch screen panel and App Control:

S

Auxillary Batteries 6V (4):

S

Nuetral Loss Protection:

S

Generator - 5.5kW Onan:

S

Auto Gen Start:

S

Master Battery Disconnect Switch :

S

Water Pump - 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Pump - 12V 5.3GPM High Capacity AquaJet Water Pump:

NA

Water Purification System:

S

Water Heater Bypass System:

S

Exterior Shower :

S

Cable TV/Satellite Hookup:

S

Black Holding Tank Flush System - San-T-Flush:

S

Single Location Monitor Panel w/LPG, Touch Sensor Tank Monitoring/Battery Readouts:

S

Fire Extinguisher, LP/CO and Smoke detectors:

S

GFCI Receptacle in Exterior Storage:

S

Washer/Dryer - Combo:

O

Washer/Dryer - Stackable:

NA

Washer/Dryer Prep - Combo:

S

Water Heater - 10 Gallon:

S

Water Heater - Tankless:

NA

Shoreline Power Cord - 50 Amp:

S

Power Cord Reel:

O
Chassis

Chassis Type:

Ford F-53 Motorhome Chassis

GVWR:

22000

GCWR:

26000

Rear Axle GAWR:

15000

Front Axle GAWR:

8000

Hitch Rating:

5000

Front suspension: Tapered Multi-Leaf:

S

Rear suspension: Tapered Multi-Leaf:

S

Power - 4 Wheel Disc (Hydro-boost) w/ABS:

S

Shock Absorbers - Bilstein™ 1.63-in. diameter:

S

Power Assisted Steering:

S

Stabilizer Bar Front & Rear:

S

Front Tires :

235/80R 22.5

Rear Tires:

235/80R 22.5

Front and Rear Aluminum Wheels:

S

Sumo Springs - Front/Rear:

O

Liquid Spring - Front/Rear:

O

Engine Equipment

Ford 7.3L Triton V8, 350 HP w/468 lb. Torque:

S

175 Amp Alternator:

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode:

S

Chassis Battery 78-amp:

S

12V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

228"

Exterior Length:

36'3"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

126

Basement Storage (cu.ft.):

180

# of Slideouts:

2

Capacities

Fuel (gal):

80

Fresh Water (gal):

100

Gray Waste Water (gal):

58

Black Waste Water (gal):

42

Appliance Propane (gal) (WC):

25

Water Heater (gal):

10

Tankless Water Heater:

NA

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments:

S

Basement Storage Lighting w/Master Switch:

S

Heated Fresh Water and Holding Tank Compartments:

S

Power Platform Chassis Construction:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Full Coverage Heavy Duty Undercoating:

S

CSA Build:

O

Exterior

Aerodynamic Fiberglass Cap w/Automotive Headlighting:

S

Rear Fiberglass Cap w/Automotive Lighting:

S

ABS Wheel Well Skirts:

S

TPO Roof - Thermoplastic Polyolefin :

S

Electric Patio Awning w/LED lighting and Motion Sensor:

S

Slide Out Awning Toppers Above All Slideouts:

S

Radiused Entry Door w/Screendoor, Latch, Deadbolt Lock:

S

Luggage Door Handles - Chrome/Black:

S

Entry Grab Handle - Acrylic Lighted:

S

Power Entry Step w/Light:

S

Bus-Style Luggage Doors - Side Swing Aluminum:

S

Dual Pane Framless Windows:

S

Patio LED Light:

S

Clearance and Marker Lighting - Front, Side and Rear:

S

Auto Gen Start:

S

Gravity Fresh Water Fill:

S

Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves:

S

Park Cable and Satellite Hookup:

S

Trialer Hitch w/7-Way Round Tow Connection (5,000 lbs.):

S

Trialer Hitch w/7-Way Round Tow Connection (8,000 lbs.):

NA

TV Antenna - Unidirectional King Controls Jack Antenna:

S

LP Connection:

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Rear Ladder:

S

Premier Paint: Full Body, 4-Color w/Front Clear Mask:

3

Roof Vent Rain Covers:

S

KING Universal Satellite System:

O

Cab Exterior

Automotive One-piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Windows - Driver/Passenger:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Cab Interior

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Manual Footrest, Reclining Back & Swivel:

S

Driver/Passenger ABS Style Armrests:

S

Cup Holders - Driver/Passenger:

S

Windshield Roller Shade - Power:

S

Manual Roller Shades - Driver/Passenger Manual:

S

Overhead Map Flex Lighting - Driver/Passenger:

S

Instrument Gauges w/Electronic Information Center - Black:

S

High Output Dash Air Conditioning and Heat:

S

Electronic Cruise Control:

S

Windshield Wipers w/Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt Column:

S

6" Color Monitor for Side and Rear Cameras:

S

Sony 9" Stereo w/AM/FM/Bluetooth/ MP3/USB - Phone Control - Android Auto & Apple Car Play w/Navigation - Siri Eyes Free - Built in HD Radio - Sirius/XM Ready (Requires Subscription) – Backup camera:

S

Garmin Collision Mitigation System:

O

Sony 6 1/2" Stereo Speakers:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Seat Belts - 3 Point Driver & Passenger w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlets :

S

Automotive Style Dash w/Dual Monitors and Workstation:

S

Pullout Center Dash Storage Bin:

S

Cab Lights:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Engine Cover w/Snack Tray:

S

Cab Floor Mats:

S

Cab Area Fans:

S

Auto Leveling Jack Controls:

S

Center Table - Driver/Passenger:

S

Auxiliary Start Switch:

S

Hide-A-Loft Drop Down Queen Bed w/24" TV:

O

Interior

Sofa - Expandable L-Sofa:

O

Sofa - Tri-fold:

NA

Sofa - Tri-fold w/Facing Booth Dinette w/Dream Dinette:

NA

Sofa - Expandable L-Sofa and Free-Standing Dinette w/Credenza:

NA

Sofa - Jack-knife:

S

Sofa - Theatre Seating:

O

Facing Booth Dinette w/Dream Dinette Table:

S

Free Standing Dinette w/Credenza:

O

Solid Surface Galley Top:

S

Surf-X Tops Throughout (Excluding Galley):

S

Electric Fireplace:

S

Feature Wall w/Accent Wall Covering:

S

Flat Ceiling w/Soft Touch Vinyl:

S

Vinyl Tile Flooring Throughout:

S

Ozite Lined Cabinet Interiors:

S

Cedar Lined Wardrobe Interiors (Select Locations):

S

Full Extension Drawer Guides w/Latches:

S

Hidden Euro Hinges and Struts:

S

Cabinet Doors - Solid Wood, Raised Panel :

S

Slideout Fascia - Interior Wood Color Coordinating :

S

Window Valances w/Lambrequins:

S

Manual Day/Night Roller Shades:

S

Energy Efficient 3" LED Flush Mount Ceiling and Under Cabinet Reading Lights Throughout:

S

Flush Floor Living Slideouts:

S

Faucets, Fixtures and Hardware - Brushed Nickle:

S

Interior Décor Choices:

3

Wood Color Choices:

4

Interior Entry

Battery Disconnect:

S

Entry Grab Handle - Metal:

S

Multiplex Electric Controls w/App Control:

S

Entry Door Manual Roller Shade:

S

Entry Steps w/Lighted Step Well:

S

Kitchen

Refrigerator - Residential Stainless Steel French Door Style w/Icemaker - Samsung:

S

Cooktop - 3-Burner w/Solid Surface Covers:

S

Range w/Oven - 3-Burner Drop-In:

O

Microwave - Convection, Stainless Steel, Over the Range:

S

Tile Backsplash:

S

Large Galley Window w/Tiled Window Box:

S

Sink - Stainless Steel, Deep Double Bowl, Undermount:

S

Sink Covers - Solid Surface:

S

Residential Faucet - Single Handle w/Pullout Sprayer :

S

Adjustable Shelves Throughout:

S

Power Ceiling Vent - FanTastic:

S

Waste Basket:

S

Night Roller Shade - Manual:

S

Bedroom or Bunk Area

King Memory Foam Mattress:

S

Bunk Beds (Mutli-purpose Flip Bunk for Wardrobe and Seating w/doors):

NA

Designer Bedspread, Headboard, Pillow Shams & Pillows:

S

C-PAP Machine Prep - Bedroom Overhead:

S

120V/USB Ports:

S

Lavy

Sink - Top-Mounted Porcelain:

S

Sink - Top-Mounted Stainless Steel:

S

Residential Faucet - Single Handle:

S

Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Macerator Toilet - Porcelain:

S

Standard Toilet - Porcelain:

NA

Power Ceiling Vent - FanTastic:

S

Entertainment

40″ Flat Screen LED TV (Living Area):

S

32″ Flat Screen LED TV (Bedroom):

S

24″ Flat Screen LED TV (Bedroom):

NA

24″ Flat Screen LED TV (Bunk Area):

NA

24" Flat Screen LED TV (Front Overhead w/Hide-A-Loft Drop Down Bed Opt.):

O

HDMI Video Distribution:

S

Sound Bar w/Blu-Ray Player:

S

Entertainment Center w/40" LED TV and Bluetooth Sound Bar:

S

Electric & Utilities

A/C - Dual 15,000 BTU w/Chill Grill & Rear Heat Pump:

S

Furnace - 34,000 BTU:

S

Furnace - Dual 30,000/20,000 BTU:

NA

50 Amp Service:

S

60 Amp Power Converter:

S

Inverter - Single 2000w Pure Sine:

S

WiFiRanger Sky4:

S

WiFiRanger SkyPro Pack w/LTE and GPS:

O

100w Solar Panel:

S

265w Solar Panel:

O

Multiplex Wiring Control System w/7" touch screen panel and App Control:

S

Auxillary Batteries 6V (4):

S

Nuetral Loss Protection:

S

Generator - 5.5kW Onan:

S

Auto Gen Start:

S

Master Battery Disconnect Switch :

S

Water Pump - 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Pump - 12V 5.3GPM High Capacity AquaJet Water Pump:

NA

Water Purification System:

S

Water Heater Bypass System:

S

Exterior Shower :

S

Cable TV/Satellite Hookup:

S

Black Holding Tank Flush System - San-T-Flush:

S

Single Location Monitor Panel w/LPG, Touch Sensor Tank Monitoring/Battery Readouts:

S

Fire Extinguisher, LP/CO and Smoke detectors:

S

GFCI Receptacle in Exterior Storage:

S

Washer/Dryer - Combo:

O

Washer/Dryer - Stackable:

NA

Washer/Dryer Prep - Combo:

S

Water Heater - 10 Gallon:

S

Water Heater - Tankless:

NA

Shoreline Power Cord - 50 Amp:

S

Power Cord Reel:

O
Chassis

Chassis Type:

Ford F-53 Motorhome Chassis

GVWR:

24000

GCWR:

30000

Rear Axle GAWR:

15500

Front Axle GAWR:

9000

Hitch Rating:

5000

Front suspension: Tapered Multi-Leaf:

S

Rear suspension: Tapered Multi-Leaf:

S

Power - 4 Wheel Disc (Hydro-boost) w/ABS:

S

Shock Absorbers - Bilstein™ 1.63-in. diameter:

S

Power Assisted Steering:

S

Stabilizer Bar Front & Rear:

S

Front Tires :

255/80R 22.5

Rear Tires:

255/80R 22.5

Front and Rear Aluminum Wheels:

S

Sumo Springs - Front/Rear:

O

Liquid Spring - Front/Rear:

O

Engine Equipment

Ford 7.3L Triton V8, 350 HP w/468 lb. Torque:

S

175 Amp Alternator:

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode:

S

Chassis Battery 78-amp:

S

12V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

252"

Exterior Length:

36'3"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

144

Basement Storage (cu.ft.):

138

# of Slideouts:

4

Capacities

Fuel (gal):

80

Fresh Water (gal):

100

Gray Waste Water (gal):

46

Black Waste Water (gal):

30

Appliance Propane (gal) (WC):

25

Water Heater (gal):

10

Tankless Water Heater:

NA

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments:

S

Basement Storage Lighting w/Master Switch:

S

Heated Fresh Water and Holding Tank Compartments:

S

Power Platform Chassis Construction:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Full Coverage Heavy Duty Undercoating:

S

CSA Build:

O

Exterior

Aerodynamic Fiberglass Cap w/Automotive Headlighting:

S

Rear Fiberglass Cap w/Automotive Lighting:

S

ABS Wheel Well Skirts:

S

TPO Roof - Thermoplastic Polyolefin :

S

Electric Patio Awning w/LED lighting and Motion Sensor:

S

Slide Out Awning Toppers Above All Slideouts:

S

Radiused Entry Door w/Screendoor, Latch, Deadbolt Lock:

S

Luggage Door Handles - Chrome/Black:

S

Entry Grab Handle - Acrylic Lighted:

S

Power Entry Step w/Light:

S

Bus-Style Luggage Doors - Side Swing Aluminum:

S

Dual Pane Framless Windows:

S

Patio LED Light:

S

Clearance and Marker Lighting - Front, Side and Rear:

S

Auto Gen Start:

S

Gravity Fresh Water Fill:

S

Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves:

S

Park Cable and Satellite Hookup:

S

Trialer Hitch w/7-Way Round Tow Connection (5,000 lbs.):

S

Trialer Hitch w/7-Way Round Tow Connection (8,000 lbs.):

NA

TV Antenna - Unidirectional King Controls Jack Antenna:

S

LP Connection:

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Rear Ladder:

S

Premier Paint: Full Body, 4-Color w/Front Clear Mask:

3

Roof Vent Rain Covers:

S

KING Universal Satellite System:

O

Cab Exterior

Automotive One-piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Windows - Driver/Passenger:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Cab Interior

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Manual Footrest, Reclining Back & Swivel:

S

Driver/Passenger ABS Style Armrests:

S

Cup Holders - Driver/Passenger:

S

Windshield Roller Shade - Power:

S

Manual Roller Shades - Driver/Passenger Manual:

S

Overhead Map Flex Lighting - Driver/Passenger:

S

Instrument Gauges w/Electronic Information Center - Black:

S

High Output Dash Air Conditioning and Heat:

S

Electronic Cruise Control:

S

Windshield Wipers w/Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt Column:

S

6" Color Monitor for Side and Rear Cameras:

S

Sony 9" Stereo w/AM/FM/Bluetooth/ MP3/USB - Phone Control - Android Auto & Apple Car Play w/Navigation - Siri Eyes Free - Built in HD Radio - Sirius/XM Ready (Requires Subscription) – Backup camera:

S

Garmin Collision Mitigation System:

O

Sony 6 1/2" Stereo Speakers:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Seat Belts - 3 Point Driver & Passenger w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlets :

S

Automotive Style Dash w/Dual Monitors and Workstation:

S

Pullout Center Dash Storage Bin:

S

Cab Lights:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Engine Cover w/Snack Tray:

S

Cab Floor Mats:

S

Cab Area Fans:

S

Auto Leveling Jack Controls:

S

Center Table - Driver/Passenger:

S

Auxiliary Start Switch:

S

Hide-A-Loft Drop Down Queen Bed w/24" TV:

O

Interior

Sofa - Expandable L-Sofa:

NA

Sofa - Tri-fold:

NA

Sofa - Tri-fold w/Facing Booth Dinette w/Dream Dinette:

S

Sofa - Expandable L-Sofa and Free-Standing Dinette w/Credenza:

O

Sofa - Jack-knife:

NA

Sofa - Theatre Seating:

NA

Facing Booth Dinette w/Dream Dinette Table:

S

Free Standing Dinette w/Credenza:

O

Solid Surface Galley Top:

S

Surf-X Tops Throughout (Excluding Galley):

S

Electric Fireplace:

S

Feature Wall w/Accent Wall Covering:

S

Flat Ceiling w/Soft Touch Vinyl:

S

Vinyl Tile Flooring Throughout:

S

Ozite Lined Cabinet Interiors:

S

Cedar Lined Wardrobe Interiors (Select Locations):

S

Full Extension Drawer Guides w/Latches:

S

Hidden Euro Hinges and Struts:

S

Cabinet Doors - Solid Wood, Raised Panel :

S

Slideout Fascia - Interior Wood Color Coordinating :

S

Window Valances w/Lambrequins:

S

Manual Day/Night Roller Shades:

S

Energy Efficient 3" LED Flush Mount Ceiling and Under Cabinet Reading Lights Throughout:

S

Flush Floor Living Slideouts:

S

Faucets, Fixtures and Hardware - Brushed Nickle:

S

Interior Décor Choices:

3

Wood Color Choices:

4

Interior Entry

Battery Disconnect:

S

Entry Grab Handle - Metal:

S

Multiplex Electric Controls w/App Control:

S

Entry Door Manual Roller Shade:

S

Entry Steps w/Lighted Step Well:

S

Kitchen

Refrigerator - Residential Stainless Steel French Door Style w/Icemaker - Samsung:

S

Cooktop - 3-Burner w/Solid Surface Covers:

S

Range w/Oven - 3-Burner Drop-In:

O

Microwave - Convection, Stainless Steel, Over the Range:

S

Tile Backsplash:

S

Large Galley Window w/Tiled Window Box:

NA

Sink - Stainless Steel, Deep Double Bowl, Undermount:

S

Sink Covers - Solid Surface:

S

Residential Faucet - Single Handle w/Pullout Sprayer :

S

Adjustable Shelves Throughout:

S

Power Ceiling Vent - FanTastic:

S

Waste Basket:

S

Night Roller Shade - Manual:

S

Bedroom or Bunk Area

King Memory Foam Mattress:

S

Bunk Beds (Mutli-purpose Flip Bunk for Wardrobe and Seating w/doors):

NA

Designer Bedspread, Headboard, Pillow Shams & Pillows:

S

C-PAP Machine Prep - Bedroom Overhead:

S

120V/USB Ports:

S

Lavy

Sink - Top-Mounted Porcelain:

NA

Sink - Top-Mounted Stainless Steel:

S

Residential Faucet - Single Handle:

S

Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Macerator Toilet - Porcelain:

NA

Standard Toilet - Porcelain:

S

Power Ceiling Vent - FanTastic:

S

Entertainment

40″ Flat Screen LED TV (Living Area):

S

32″ Flat Screen LED TV (Bedroom):

S

24″ Flat Screen LED TV (Bedroom):

NA

24″ Flat Screen LED TV (Bunk Area):

NA

24" Flat Screen LED TV (Front Overhead w/Hide-A-Loft Drop Down Bed Opt.):

O

HDMI Video Distribution:

S

Sound Bar w/Blu-Ray Player:

S

Entertainment Center w/40" LED TV and Bluetooth Sound Bar:

S

Electric & Utilities

A/C - Dual 15,000 BTU w/Chill Grill & Rear Heat Pump:

S

Furnace - 34,000 BTU:

S

Furnace - Dual 30,000/20,000 BTU:

NA

50 Amp Service:

S

60 Amp Power Converter:

S

Inverter - Single 2000w Pure Sine:

S

WiFiRanger Sky4:

S

WiFiRanger SkyPro Pack w/LTE and GPS:

O

100w Solar Panel:

S

265w Solar Panel:

O

Multiplex Wiring Control System w/7" touch screen panel and App Control:

S

Auxillary Batteries 6V (4):

S

Nuetral Loss Protection:

S

Generator - 5.5kW Onan:

S

Auto Gen Start:

S

Master Battery Disconnect Switch :

S

Water Pump - 12V 3GPM High Capacity Shurflo Water Pump:

S

Water Pump - 12V 5.3GPM High Capacity AquaJet Water Pump:

NA

Water Purification System:

S

Water Heater Bypass System:

S

Exterior Shower :

S

Cable TV/Satellite Hookup:

S

Black Holding Tank Flush System - San-T-Flush:

S

Single Location Monitor Panel w/LPG, Touch Sensor Tank Monitoring/Battery Readouts:

S

Fire Extinguisher, LP/CO and Smoke detectors:

S

GFCI Receptacle in Exterior Storage:

S

Washer/Dryer - Combo:

NA

Washer/Dryer - Stackable:

S

Washer/Dryer Prep - Combo:

NA

Water Heater - 10 Gallon:

S

Water Heater - Tankless:

NA

Shoreline Power Cord - 50 Amp:

S

Power Cord Reel:

O
Chassis

Chassis Type:

Ford F-53 Motorhome Chassis

GVWR:

26000

GCWR:

30000

Rear Axle GAWR:

17500

Front Axle GAWR:

9000

Hitch Rating:

8000

Front suspension: Tapered Multi-Leaf:

S

Rear suspension: Tapered Multi-Leaf:

S

Power - 4 Wheel Disc (Hydro-boost) w/ABS:

S

Shock Absorbers - Bilstein™ 1.63-in. diameter:

S

Power Assisted Steering:

S

Stabilizer Bar Front & Rear:

S

Front Tires :

255/80R 22.5

Rear Tires:

255/80R 22.5

Front and Rear Aluminum Wheels:

S

Sumo Springs - Front/Rear:

O

Liquid Spring - Front/Rear:

O

Engine Equipment

Ford 7.3L Triton V8, 350 HP w/468 lb. Torque:

S

175 Amp Alternator:

S

TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode:

S

Chassis Battery 78-amp:

S

12V Heavy Duty Chassis Batteries:

S

Sizes

Wheelbase:

242"

Exterior Length:

38'9"

Exterior Width:

102"

Exterior Height:

12'10"

Interior Height:

84"

Interior Width:

96"

Interior Storage (cu.ft.):

171

Basement Storage (cu.ft.):

170

# of Slideouts:

2

Capacities

Fuel (gal):

80

Fresh Water (gal):

100

Gray Waste Water (gal):

45

Black Waste Water (gal):

50

Appliance Propane (gal) (WC):

25

Water Heater (gal):

NA

Tankless Water Heater:

S

Construction

Aluminum Welded Interlocking Frames:

S

Powerlock System - Interlocking Floor, Walls and Roof:

S

Dryseal Edge Coating for all Walls and Floors:

S

Vacu-Bond Aluminum Framed Constructed Roof, Sidewalls and Floor:

S

Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate):

S

R-8 Insulated Sidewalls;R-10 Insulated Roof and R-9 Insulated Floor/Bead Foam Insulation:

S

Quiet Insulated, Ducted A/C System:

S

Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments:

S

Basement Storage Lighting w/Master Switch:

S

Heated Fresh Water and Holding Tank Compartments:

S

Power Platform Chassis Construction:

S

Steel Constructed Entry Step Box:

S

Electric Main/Bedroom/Wardrobe/Kitchen Slide Out Systems:

S

Powder Coated Steel Frame Chassis Construction:

S

Full Coverage Heavy Duty Undercoating:

S

CSA Build:

O

Exterior

Aerodynamic Fiberglass Cap w/Automotive Headlighting:

S

Rear Fiberglass Cap w/Automotive Lighting:

S

ABS Wheel Well Skirts:

S

TPO Roof - Thermoplastic Polyolefin :

S

Electric Patio Awning w/LED lighting and Motion Sensor:

S

Slide Out Awning Toppers Above All Slideouts:

S

Radiused Entry Door w/Screendoor, Latch, Deadbolt Lock:

S

Luggage Door Handles - Chrome/Black:

S

Entry Grab Handle - Acrylic Lighted:

S

Power Entry Step w/Light:

S

Bus-Style Luggage Doors - Side Swing Aluminum:

S

Dual Pane Framless Windows:

S

Patio LED Light:

S

Clearance and Marker Lighting - Front, Side and Rear:

S

Auto Gen Start:

S

Gravity Fresh Water Fill:

S

Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves:

S

Park Cable and Satellite Hookup:

S

Trialer Hitch w/7-Way Round Tow Connection (5,000 lbs.):

NA

Trialer Hitch w/7-Way Round Tow Connection (8,000 lbs.):

S

TV Antenna - Unidirectional King Controls Jack Antenna:

S

LP Connection:

S

Four Point Fully Automatic Hydraulic Leveling Jacks:

S

Rear Ladder:

S

Premier Paint: Full Body, 4-Color w/Front Clear Mask:

3

Roof Vent Rain Covers:

S

KING Universal Satellite System:

O

Cab Exterior

Automotive One-piece Windshield:

S

Daytime Running Lights:

S

Tinted Slider Windows - Driver/Passenger:

S

Automotive Style Windshield Wiper System:

S

Remote Power/Heated Mirrors w/Turn Signals and Side Cameras - Black:

S

Cab Interior

Driver Chair w/Reclining Back, Swivel and 6-way Power Controls:

S

Passenger Chair w/Manual Footrest, Reclining Back & Swivel:

S

Driver/Passenger ABS Style Armrests:

S

Cup Holders - Driver/Passenger:

S

Windshield Roller Shade - Power:

S

Manual Roller Shades - Driver/Passenger Manual:

S

Overhead Map Flex Lighting - Driver/Passenger:

S

Instrument Gauges w/Electronic Information Center - Black:

S

High Output Dash Air Conditioning and Heat:

S

Electronic Cruise Control:

S

Windshield Wipers w/Delay:

S

Remote Switch for Power/Heated Mirrors:

S

Steering Wheel w/Tilt Column:

S

6" Color Monitor for Side and Rear Cameras:

S

Sony 9" Stereo w/AM/FM/Bluetooth/ MP3/USB - Phone Control - Android Auto & Apple Car Play w/Navigation - Siri Eyes Free - Built in HD Radio - Sirius/XM Ready (Requires Subscription) – Backup camera:

S

Garmin Collision Mitigation System:

O

Sony 6 1/2" Stereo Speakers:

S

Sirius/XM Satellite Radio Ready (Requires Subscription):

S

USB and Auxiliary Inputs:

S

Seat Belts - 3 Point Driver & Passenger w/Adjustable Straps:

S

12V Accessory Ports:

S

110-Volt AC Outlets :

S

Automotive Style Dash w/Dual Monitors and Workstation:

S

Pullout Center Dash Storage Bin:

S

Cab Lights:

S

Generator On/Off Switch:

S

Battery Booster Switch:

S

Engine Cover w/Snack Tray:

S

Cab Floor Mats:

S

Cab Area Fans:

S

Auto Leveling Jack Controls:

S

Center Table - Driver/Passenger:

S

Auxiliary Start Switch:

S

Hide-A-Loft Drop Down Queen Bed w/24" TV:

O

Interior

Sofa - Expandable L-Sofa:

NA

Sofa - Tri-fold:

S

Sofa - Tri-fold w/Facing Booth Dinette w/Dream Dinette:

NA

Sofa - Expandable L-Sofa and Free-Standing Dinette w/Credenza:

NA

Sofa - Jack-knife:

NA

Sofa - Theatre Seating:

O

Facing Booth Dinette w/Dream Dinette Table:

S

Free Standing Dinette w/Credenza:

NA

Solid Surface Galley Top:

S

Surf-X Tops Throughout (Excluding Galley):

S

Electric Fireplace:

S

Feature Wall w/Accent Wall Covering:

S

Flat Ceiling w/Soft Touch Vinyl:

S

Vinyl Tile Flooring Throughout:

S

Ozite Lined Cabinet Interiors:

S

Cedar Lined Wardrobe Interiors (Select Locations):

S

Full Extension Drawer Guides w/Latches:

S

Hidden Euro Hinges and Struts:

S

Cabinet Doors - Solid Wood, Raised Panel :

S

Slideout Fascia - Interior Wood Color Coordinating :

S

Window Valances w/Lambrequins:

S

Manual Day/Night Roller Shades:

S

Energy Efficient 3" LED Flush Mount Ceiling and Under Cabinet Reading Lights Throughout:

S

Flush Floor Living Slideouts:

NA

Faucets, Fixtures and Hardware - Brushed Nickle:

S

Interior Décor Choices:

3

Wood Color Choices:

4

Interior Entry

Battery Disconnect:

S

Entry Grab Handle - Metal:

S

Multiplex Electric Controls w/App Control:

S

Entry Door Manual Roller Shade:

S

Entry Steps w/Lighted Step Well:

S

Kitchen

Refrigerator - Residential Stainless Steel French Door Style w/Icemaker - Samsung:

S

Cooktop - 3-Burner w/Solid Surface Covers:

S

Range w/Oven - 3-Burner Drop-In:

O

Microwave - Convection, Stainless Steel, Over the Range:

S

Tile Backsplash:

S

Large Galley Window w/Tiled Window Box:

S

Sink - Stainless Steel, Deep Double Bowl, Undermount:

S

Sink Covers - Solid Surface:

S

Residential Faucet - Single Handle w/Pullout Sprayer :

S

Adjustable Shelves Throughout:

S

Power Ceiling Vent - FanTastic:

S

Waste Basket:

S

Night Roller Shade - Manual:

S

Bedroom or Bunk Area

King Memory Foam Mattress:

S

Bunk Beds (Mutli-purpose Flip Bunk for Wardrobe and Seating w/doors):

S

Designer Bedspread, Headboard, Pillow Shams & Pillows:

S

C-PAP Machine Prep - Bedroom Overhead:

S

120V/USB Ports:

S

Lavy

Sink - Top-Mounted Porcelain:

NA

Sink - Top-Mounted Stainless Steel:

S

Residential Faucet - Single Handle:

S

Medicine Cabinet w/Mirror:

S

Fiberglass Shower Surround:

S

Glass Shower Door :

S

Shower Skylight:

S

Metal Shower Head w/Sliding Adjustable Bar, Soap Dish and Matching Single Valve Faucet:

S

Macerator Toilet - Porcelain:

S

Standard Toilet - Porcelain:

NA

Power Ceiling Vent - FanTastic:

S

Entertainment

40″ Flat Screen LED TV (Living Area):

S

32″ Flat Screen LED TV (Bedroom):

NA

24″ Flat Screen LED TV (Bedroom):

S

24″ Flat Screen LED TV (Bunk Area):

S

24" Flat Screen LED TV (Front Overhead w/Hide-A-Loft Drop Down Bed Opt.):

O

HDMI Video Distribution:

S

Sound Bar w/Blu-Ray Player:

S

Entertainment Center w/40" LED TV and Bluetooth Sound Bar:

S

Electric & Utilities

A/C - Dual 15,000 BTU w/Chill Grill & Rear Heat Pump:

S

Furnace - 34,000 BTU:

NA

Furnace - Dual 30,000/20,000 BTU:

S

50 Amp Service:

S

60 Amp Power Converter:

S

Inverter - Single 2000w Pure Sine:

S

WiFiRanger Sky4:

S

WiFiRanger SkyPro Pack w/LTE and GPS:

O

100w Solar Panel:

S

265w Solar Panel:

O

Multiplex Wiring Control System w/7" touch screen panel and App Control:

S

Auxillary Batteries 6V (4):

S

Nuetral Loss Protection:

S

Generator - 5.5kW Onan:

S

Auto Gen Start:

S

Master Battery Disconnect Switch :

S

Water Pump - 12V 3GPM High Capacity Shurflo Water Pump:

NA

Water Pump - 12V 5.3GPM High Capacity AquaJet Water Pump:

S

Water Purification System:

S

Water Heater Bypass System:

S

Exterior Shower :

S

Cable TV/Satellite Hookup:

S

Black Holding Tank Flush System - San-T-Flush:

S

Single Location Monitor Panel w/LPG, Touch Sensor Tank Monitoring/Battery Readouts:

S

Fire Extinguisher, LP/CO and Smoke detectors:

S

GFCI Receptacle in Exterior Storage:

S

Washer/Dryer - Combo:

O

Washer/Dryer - Stackable:

NA

Washer/Dryer Prep - Combo:

S

Water Heater - 10 Gallon:

NA

Water Heater - Tankless:

S

Shoreline Power Cord - 50 Amp:

S

Power Cord Reel:

O
